Removal and Installation

1. Disarm air bag system as described under Air Bag Disarming & Arming.
2. Remove glove compartment door finish plate from inside compartment, then carefully disconnect air bag electrical connector, Figs. 7 and 8.

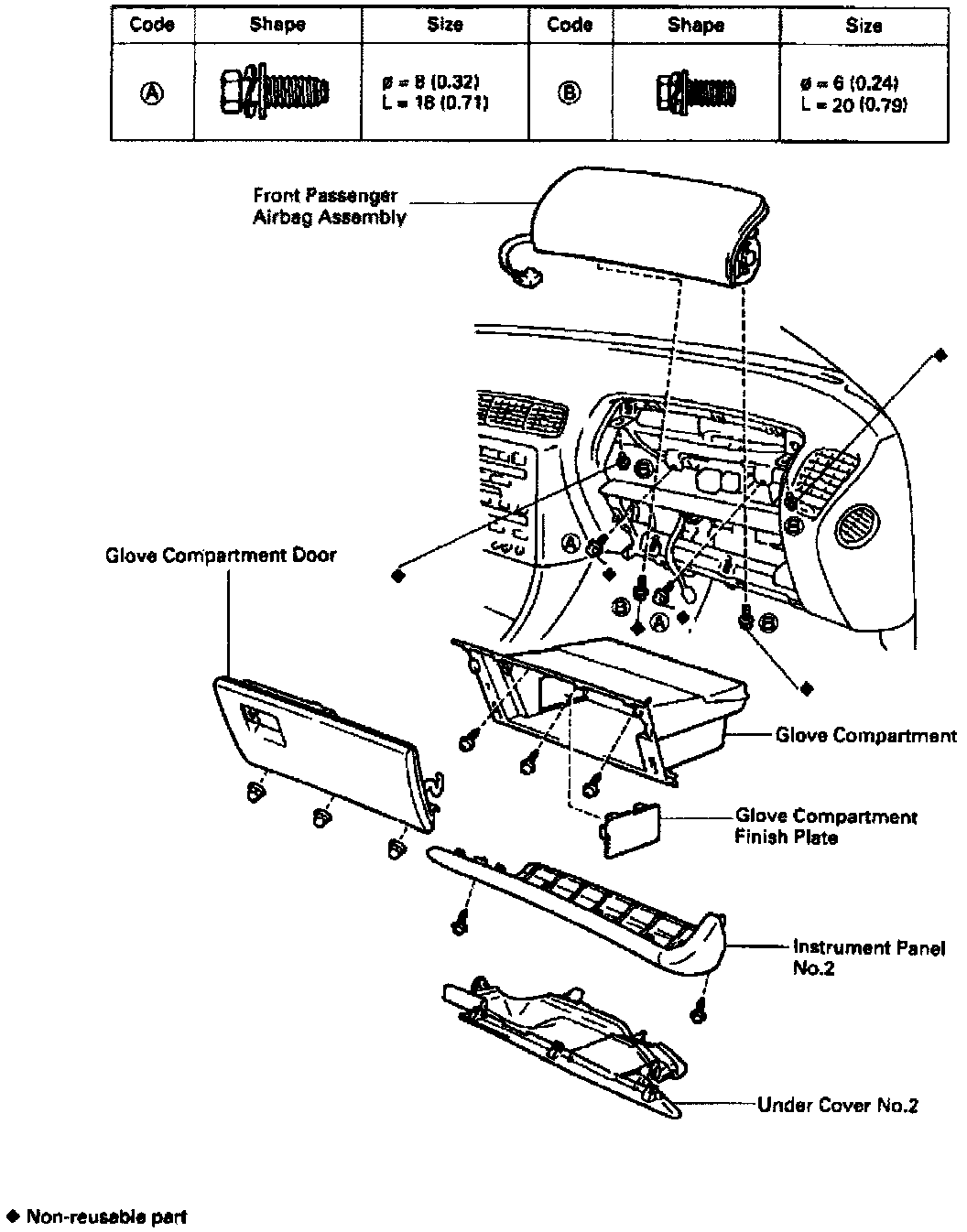

Fig. 7 Passenger's Air Bag Replacement:

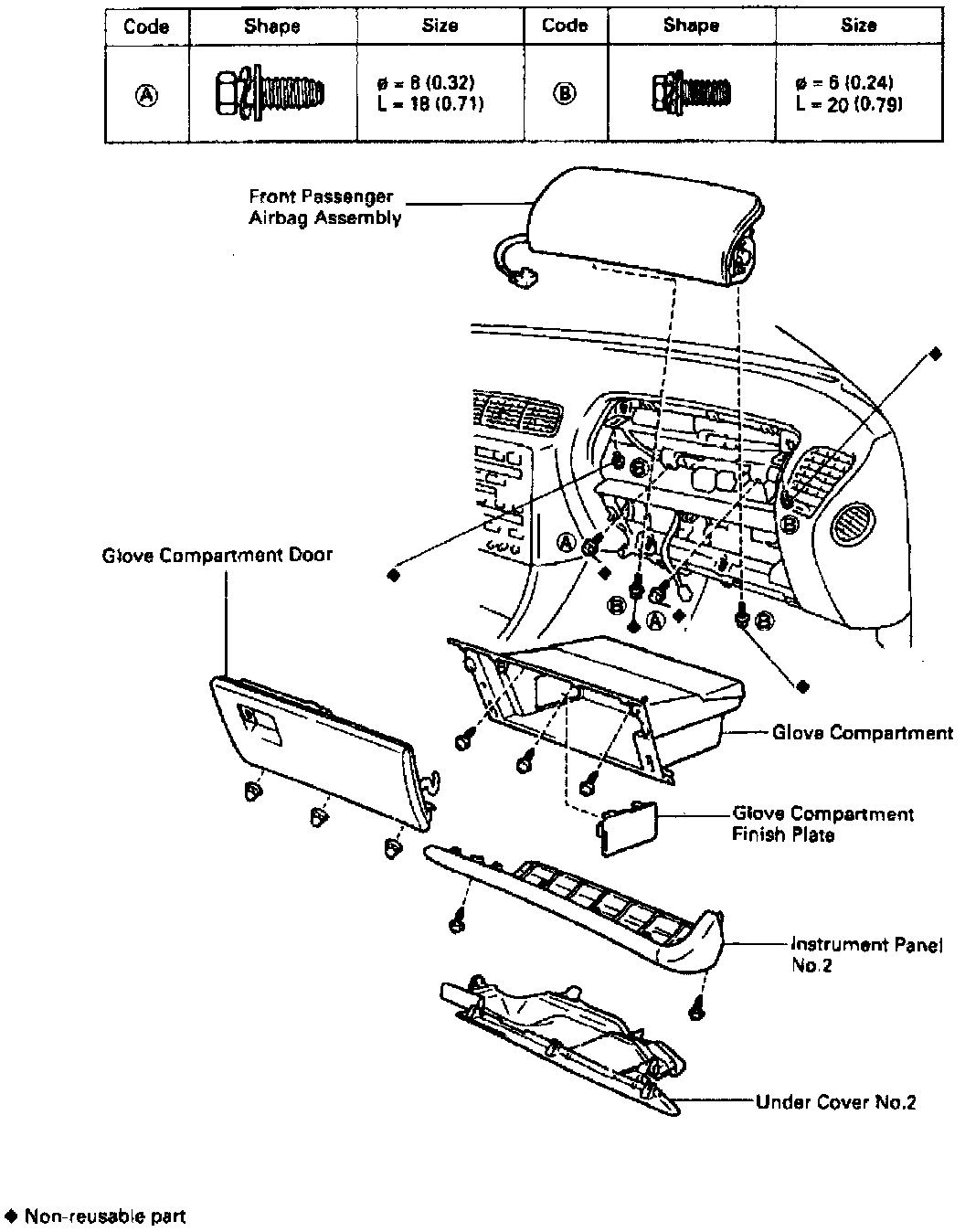

Fig. 8 Passenger's Air Bag Replacement:

3. On ES300 models, remove undercover and instrument panel lower panel.
4. On GS300 models, remove under panel.
5. On all models, remove glove compartment door.
6. Remove air bag attaching screws, bolts or nuts. Notesize and location of fasteners for use during installation.
7. Carefully remove air bag assembly. Store air bag with pad facing upward.
8. Reverse procedure to install, tighten screws, nuts and bolts to specifications, then arm air bag system/SRS as described under "Air Bag Disarming & Arming.
