On Vehicle Inspection
On Vehicle Inspection
-

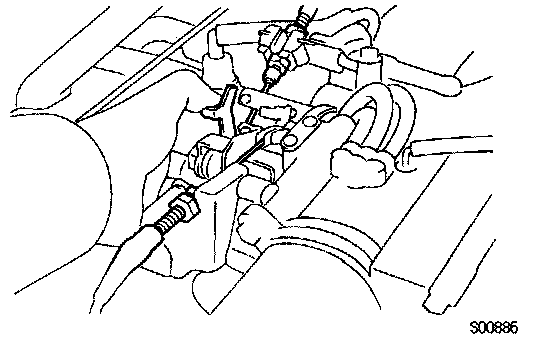

Check that the throttle linkage moves smoothly.
-

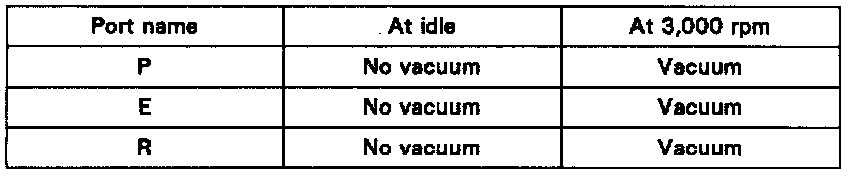

Check the vacuum at each port.
-
Start the engine.
-

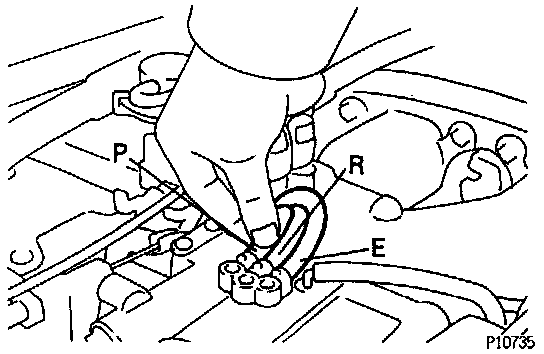

Check the vacuum with your finger.
