Bench Inspection

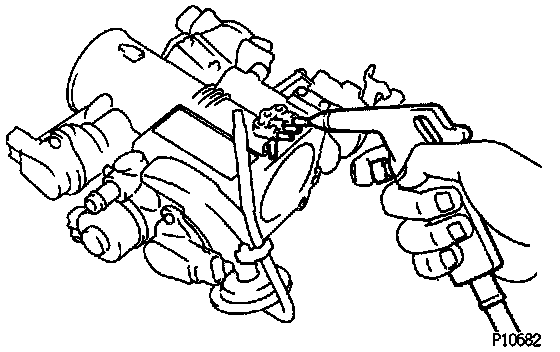

1. CLEAN THROTTLE BODY
- Using a soft brush and carburetor cleaner, clean the cast parts.
- Using compressed air, clean all the passages and apertures.

NOTICE: To prevent deterioration, do not clean the throttle position sensor and dash pot.
