Fuel Return Line: Testing and Inspection

PRECAUTIONS
1. Always use new gaskets when replacing the fuel tank or component parts.

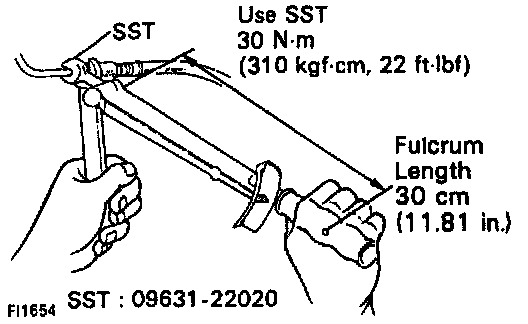

2. Apply the proper torque to all parts tightened.

- Check the fuel lines for cracks or leakage, and all connections for deformation.
- Check the fuel tank vapor vent system hoses and connections for looseness, sharp bends or damage.
- Check the fuel tank for deformation, cracks, fuel leakage or tank band looseness.
- Check the filler neck for damage or fuel leakage.
- Hose and tube connections are as shown in the illustration.
- If a problem is found, repair or replace the part as necessary.
