Fuel Pressure Pulsation Damper: Service and Repair

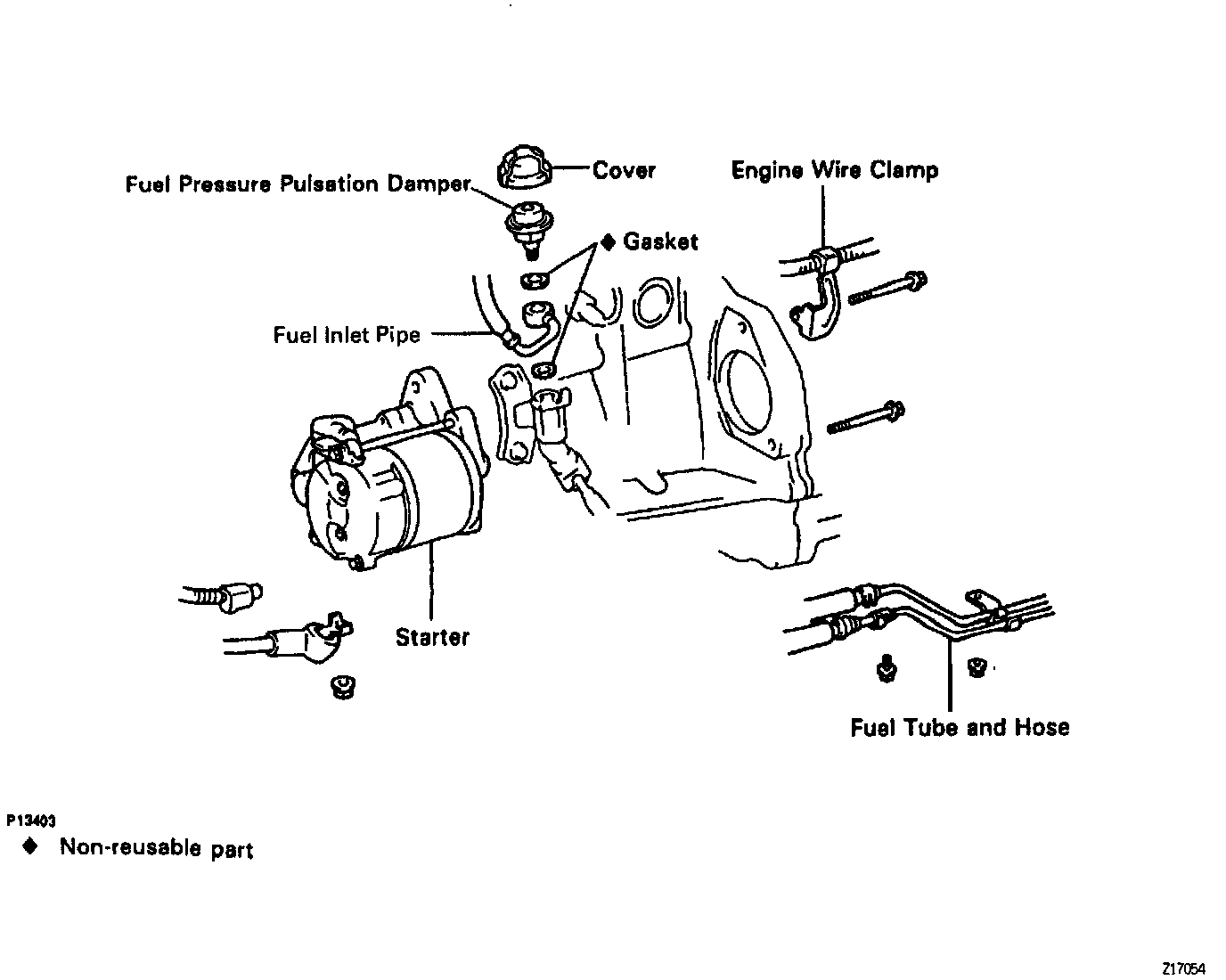

FUEL PRESSURE PULSATION DAMPER REMOVAL
1. REMOVE STARTER


2. REMOVE FUEL PRESSURE PULSATION DAMPER

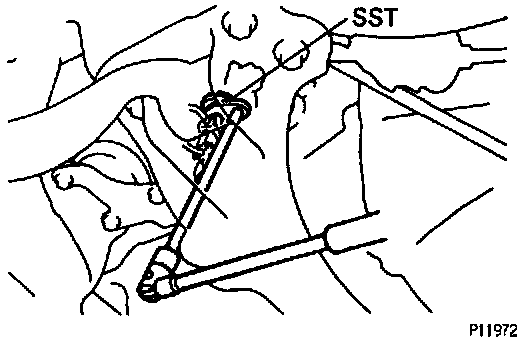

- Using SST, remove the pulsation damper and upper gasket.
SST 09612-24014(09617-24011)
- Disconnect the fuel inlet pipe from the fuel pipe support, and remove the lower gasket.






FUEL PRESSURE PULSATION DAMPER INSTALLATION
1. INSTALL FUEL PRESSURE PULSATION DAMPER

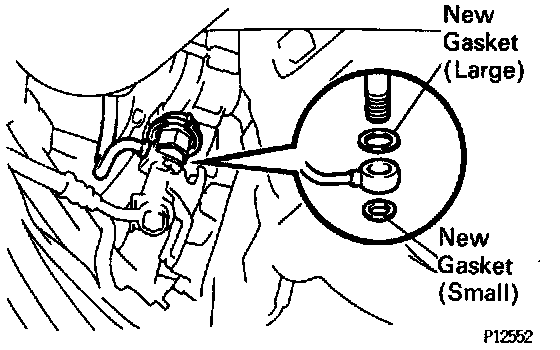

- Install the fuel inlet pipe and pulsation damper with 2 new gaskets.

HINT: Different gaskets are used for the upper (large size) and lower (small size).

- Using SST, tighten the pulsation damper.
SST 09612-24014 (09617-24011)

Torque:
41 N.m (420 kgf.cm, 30 ft.lb.)
35 N.m (350 kgf.cm. 25 ft.lb.) for SST

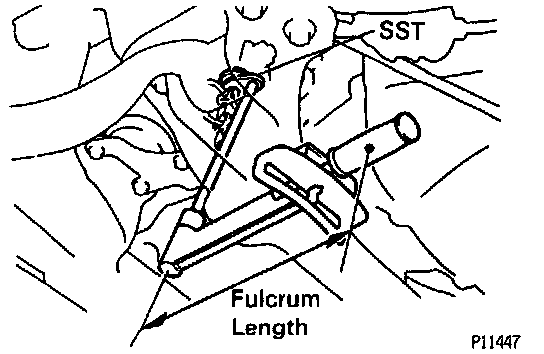

HINT: Use a torque wrench with a fulcrum
length of 30 cm (11.81 in.).

2. INSTALL STARTER


3. CHECK FOR FUEL LEAKS
