Fuel Injector Resistor: Testing and Inspection

- Remove the throttle body and intake air connector assembly.

- Disconnect the injector connectors.

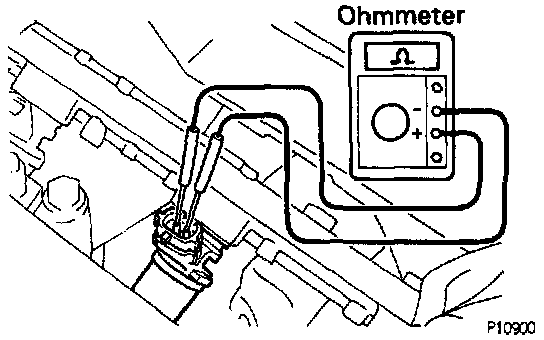

- Using an ohmmeter, measure the resistance between the terminals.

Resistance: At 20°C (68°F): 13.4 - 14.2 Ohms

- If the resistance is not as specified, replace the injector.
- Reconnect the injector connectors.
- Reinstall the throttle body and intake air connector assembly.
