CO/HC Check

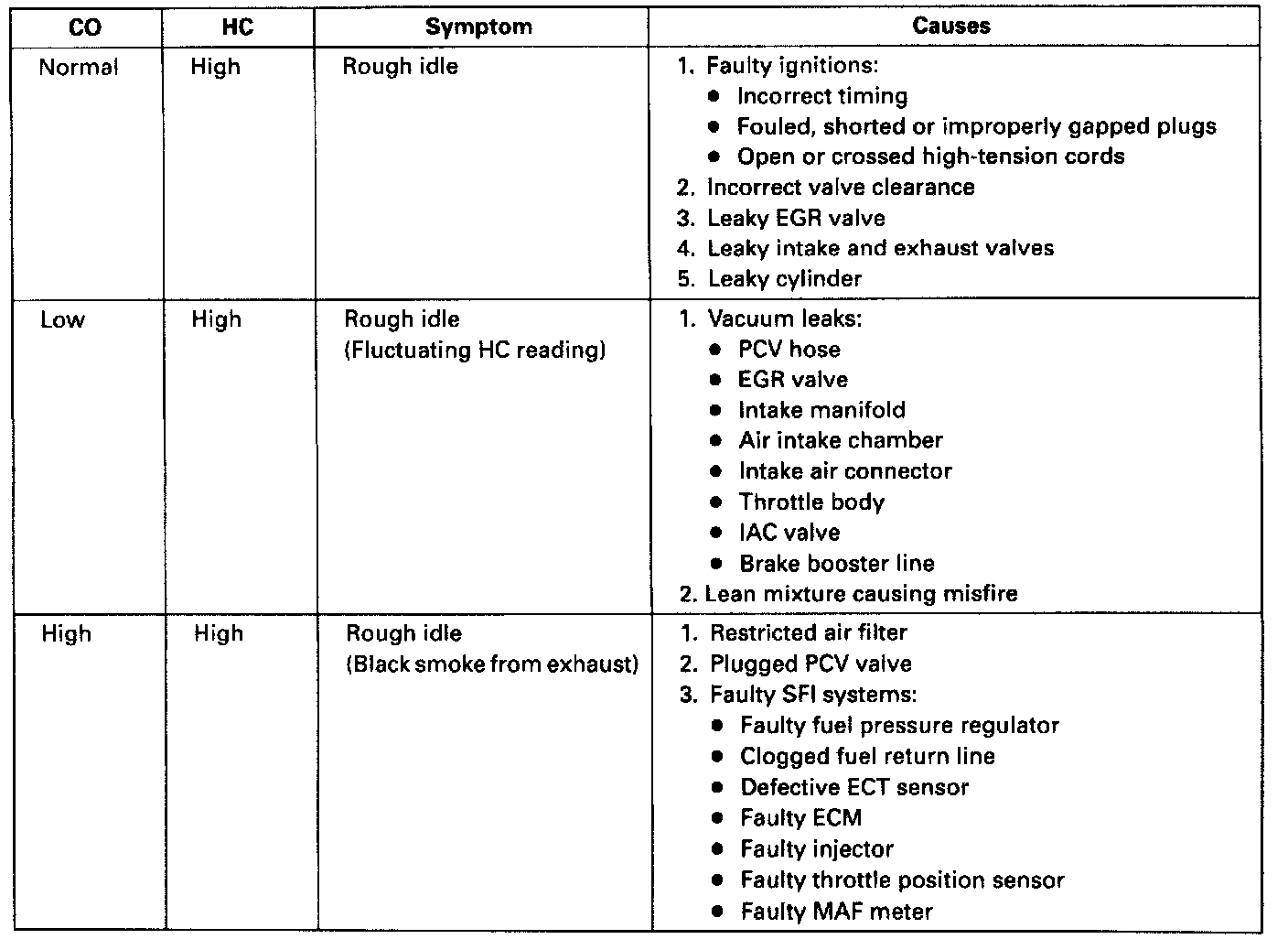

Matrix Chart Of Problem Symptoms:

If the CO/HC concentration does not comply with regulations, troubleshoot in the order given above. See the table above for possible causes, and then inspect and correct the applicable causes if necessary.
