Main Relay (Computer/Fuel System): Testing and Inspection

1. REMOVE EFI MAIN RELAY

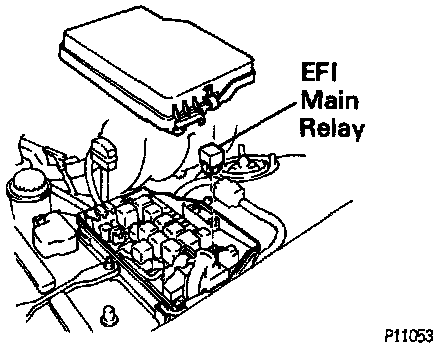

LOCATION: In the engine compartment relay box.





2. INSPECT EFI MAIN RELAY

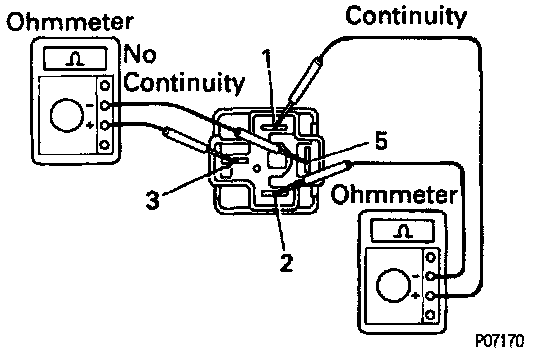

- Inspect relay continuity
- Using an ohmmeter, check that there is continuity between terminals 1 and 2.





- Inspect relay operation
- Apply battery positive voltage across terminals 1 and 2.
- Using an ohmmeter, check that there is continuity between terminals 3 and 5.
- If there is no continuity, replace the relay.
3. REINSTALL EFI MAIN RELAY
