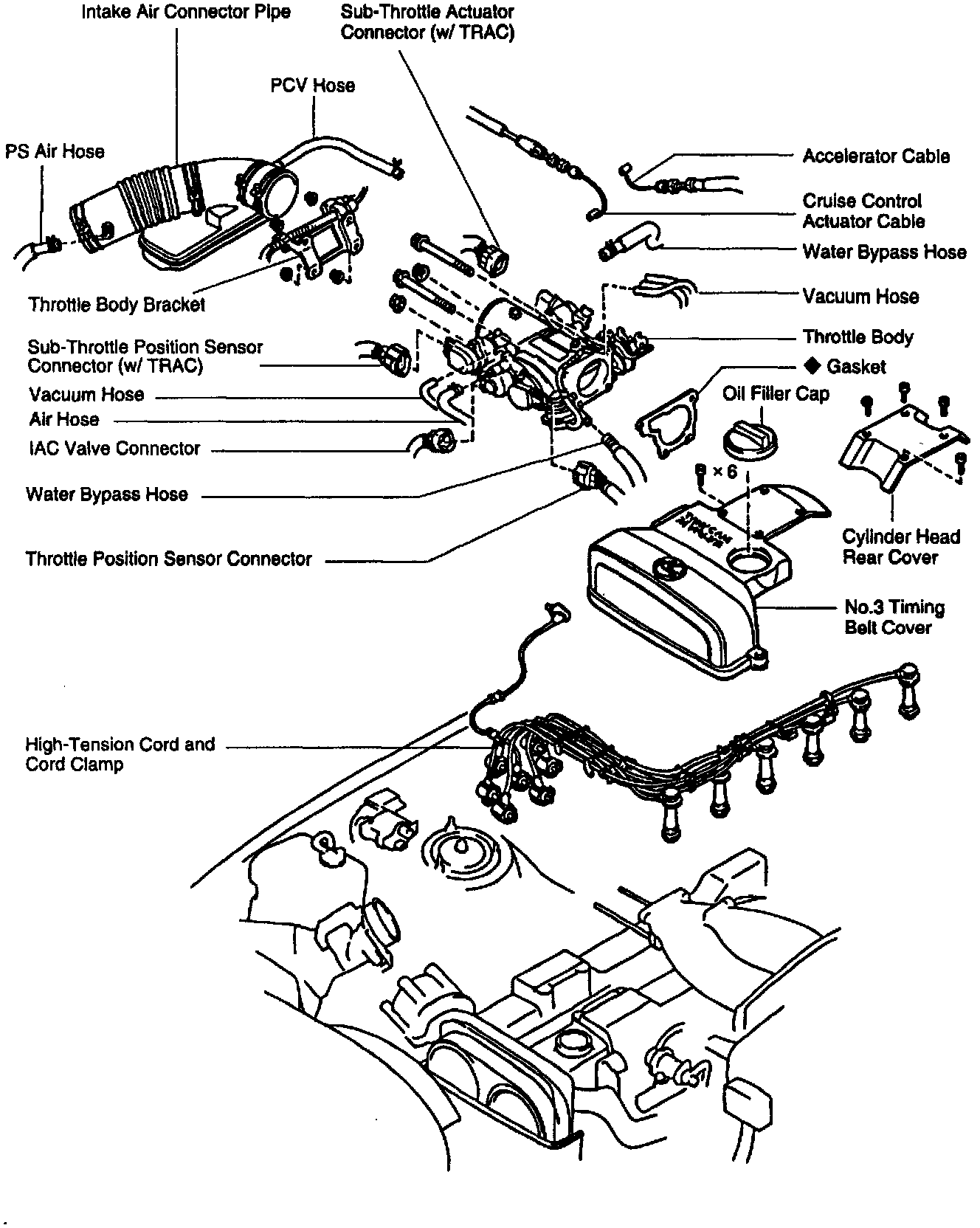

High-Tension Cords and Cord Clamps Removal

1. DISCONNECT THROTTLE BODY FROM INTAKE AIR CONNECTOR WITHOUT DISCONNECTING WATER BYPASS HOSES.


2. REMOVE NO.3 TIMING BELT COVER.
3. REMOVE CYLINDER HEAD REAR COVER.





4. REMOVE HIGH-TENSION CORDS AND CORD CLAMPS ASSEMBLY.

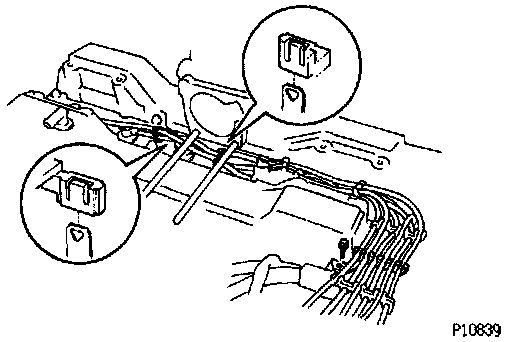

- Disconnect the 2 high-tension cord clamps from the claws of the No.3 cylinder head cover.
- Remove the bolt holding the high-tension cord clamp to No.2 cylinder head cover.





- Disconnect the high-tension cords from the distributor and ignition coil.

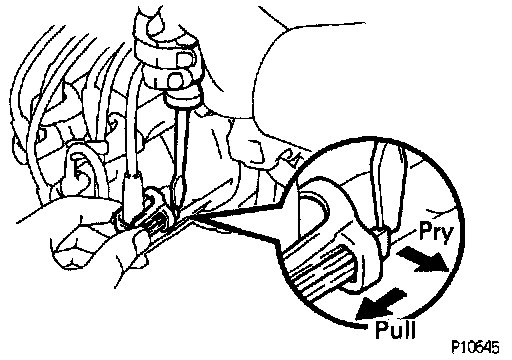

- Using a screwdriver, lift up the lock claw and disconnect the holder from the distributor (ignition coil).

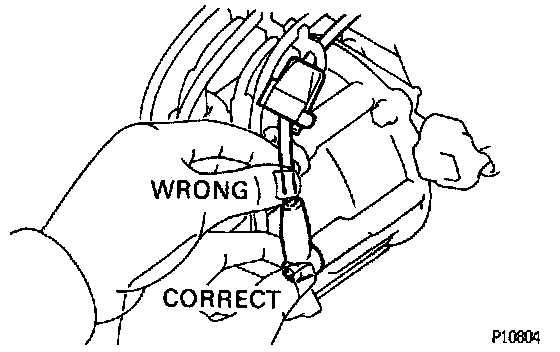

- Disconnect the high-tension cord at the grommet. Do not pull on the cord.

NOTICE: Pulling on or bending the cords may damage the conductor inside.





- Disconnect the high-tension cords from the spark plugs.
- Disconnect the high - tension cords at the rubber boot. Do not pull on the cords.

NOTICE: Pulling on or bending the cords may damage the conductor inside.

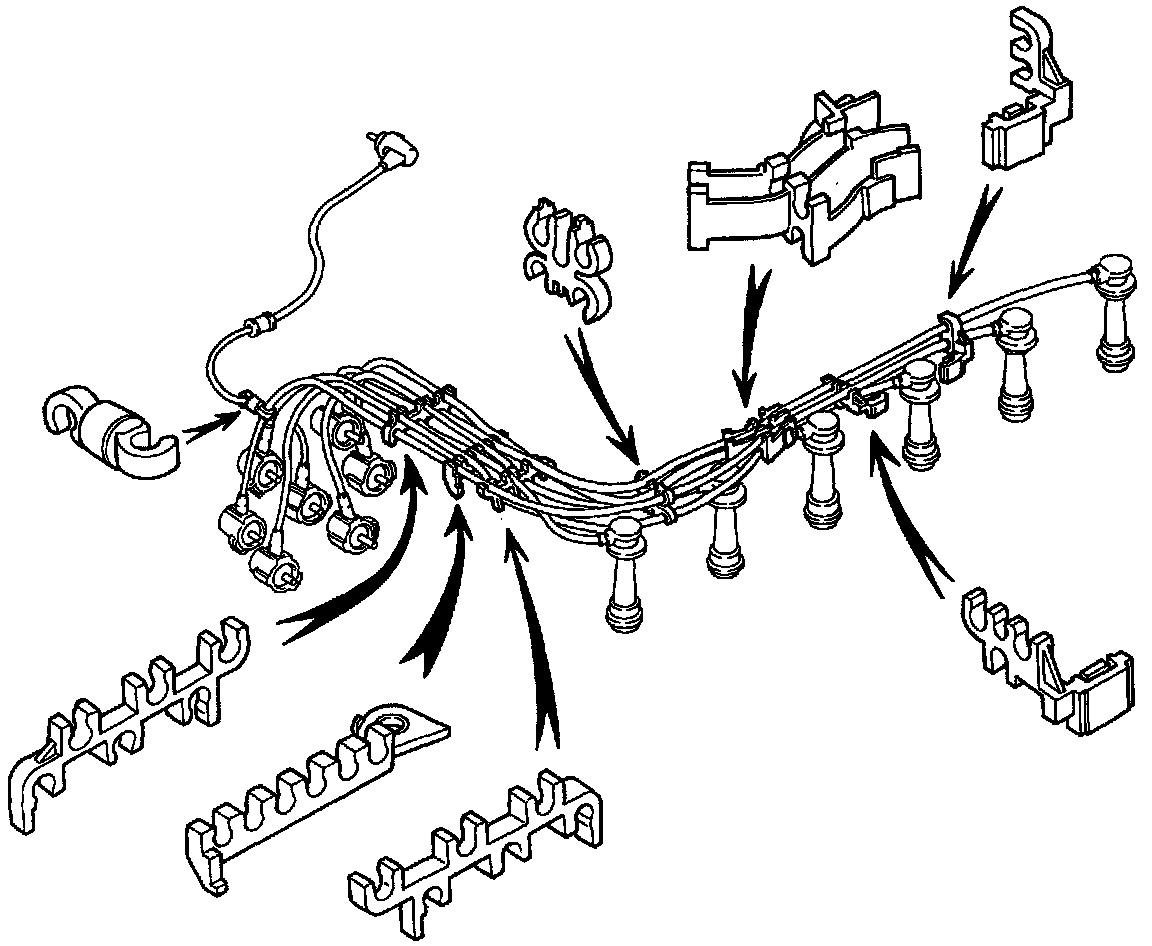

- Remove the 7 high-tension cords and 8 cord clamps assembly.





5. REMOVE CORD CLAMPS FROM HIGH-TENSION CORDS.
