Parts Location

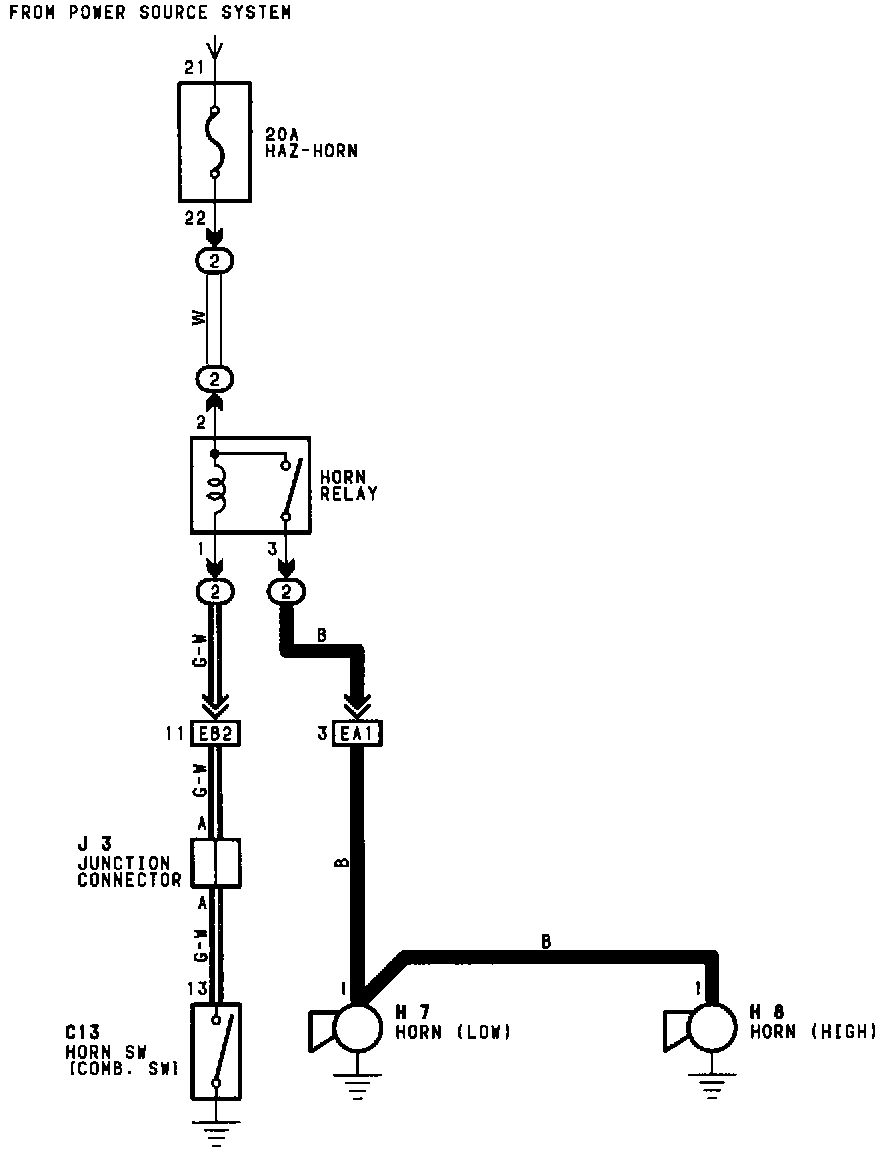

Horn:

PARTS LOCATION

Position Of Parts In Engine Compartment (Fig 26):

FIG 26

Position Of Parts In Instrument Panel (Fig 28):

FIG 28

Position Of Parts In Instrument Panel (Fig 29):

FIG 29
