Max Cool Damper Control Servomotor Circuit
The max cool servomotor is controlled by the A/C control assembly and moves the max cool damper to the desired position.

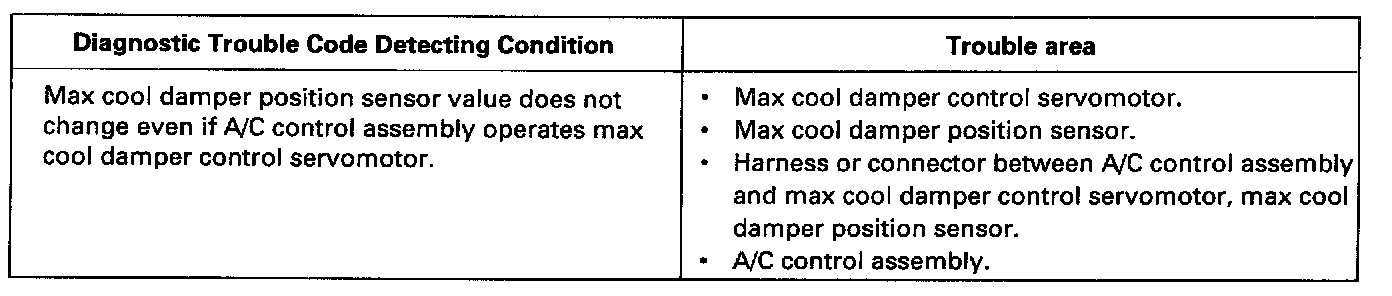

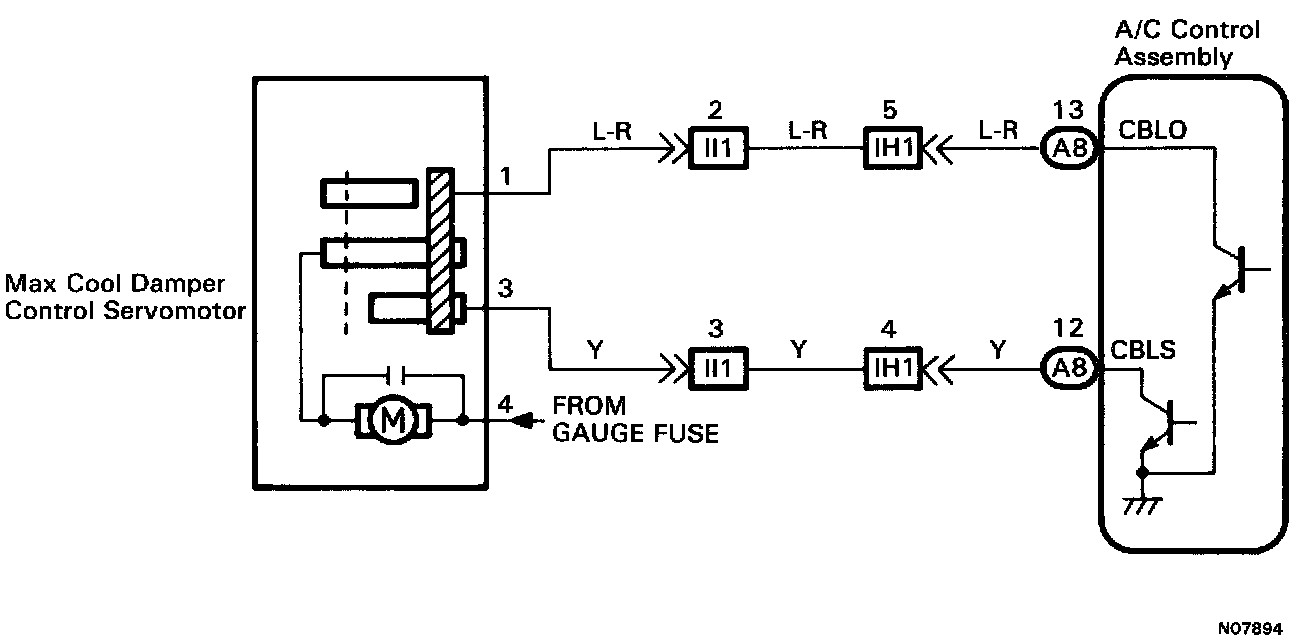

Wiring Diagram:

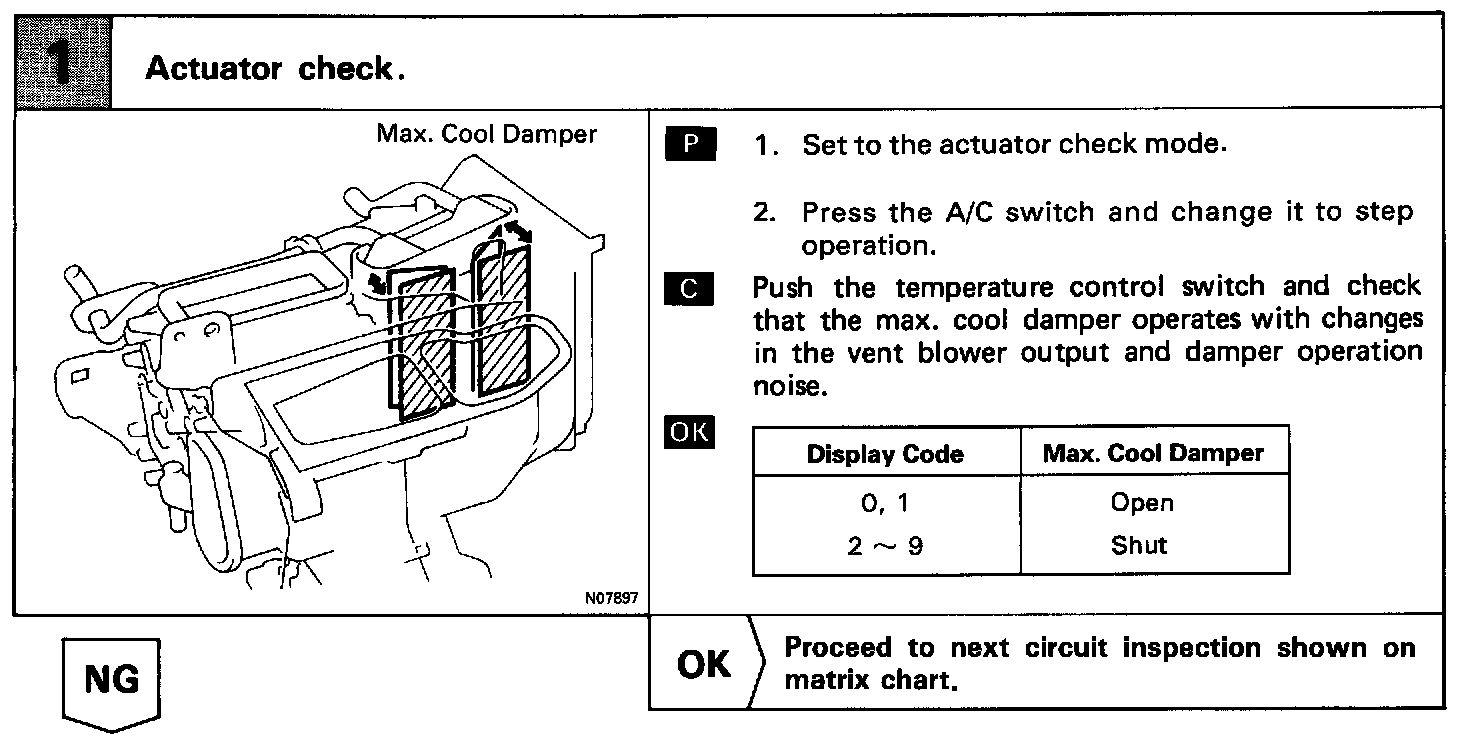

Inspection Procedure - Step 1:

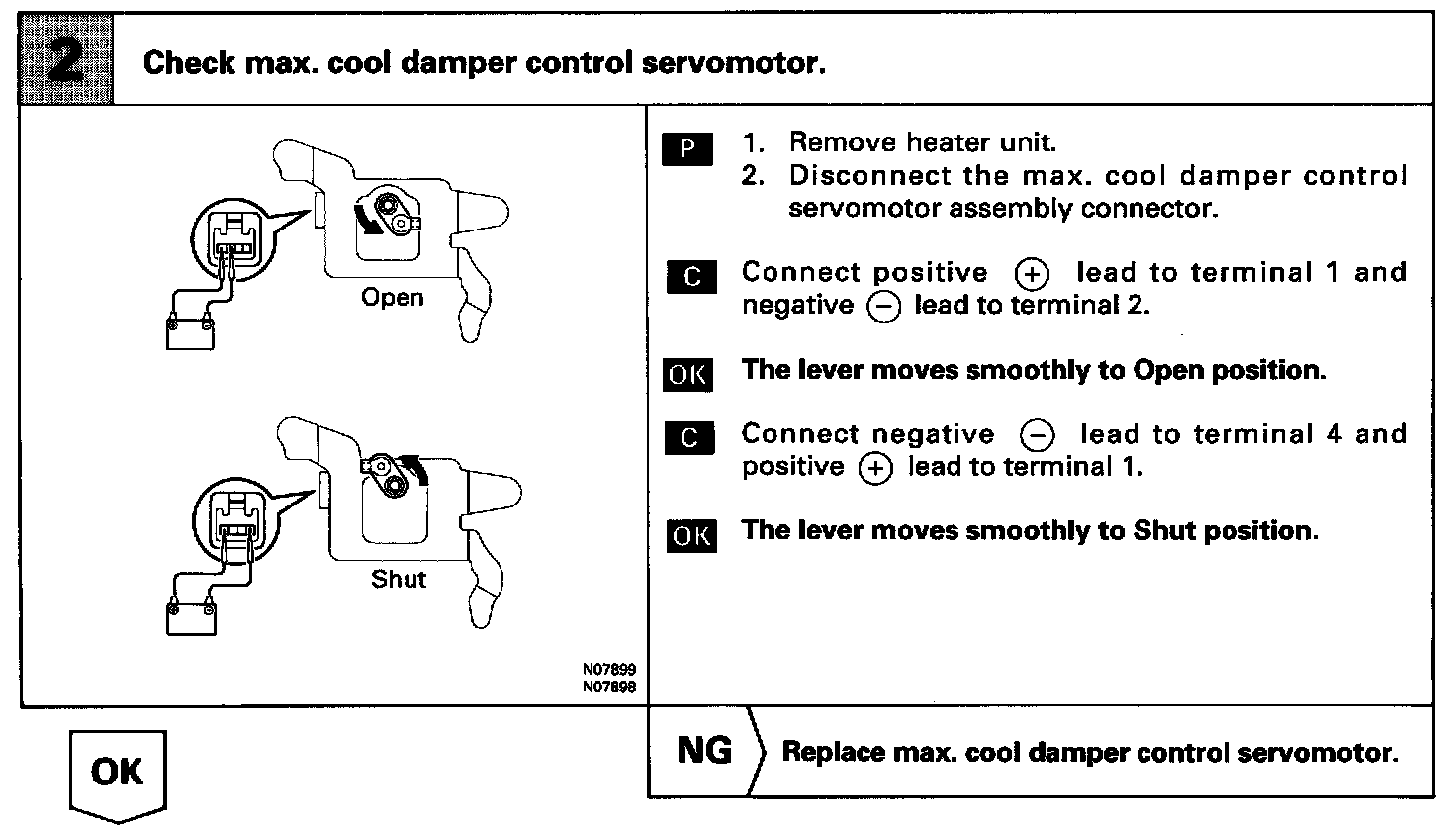

Step 2:
Step 3:
The max cool servomotor is controlled by the A/C control assembly and moves the max cool damper to the desired position.
