Lexus
>>
1996
>>
GS 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
ACC Power Source Circuit
ACC Power Source Circuit
This circuit supplies power to the air conditioning
control assembly
.
Wiring Diagram:

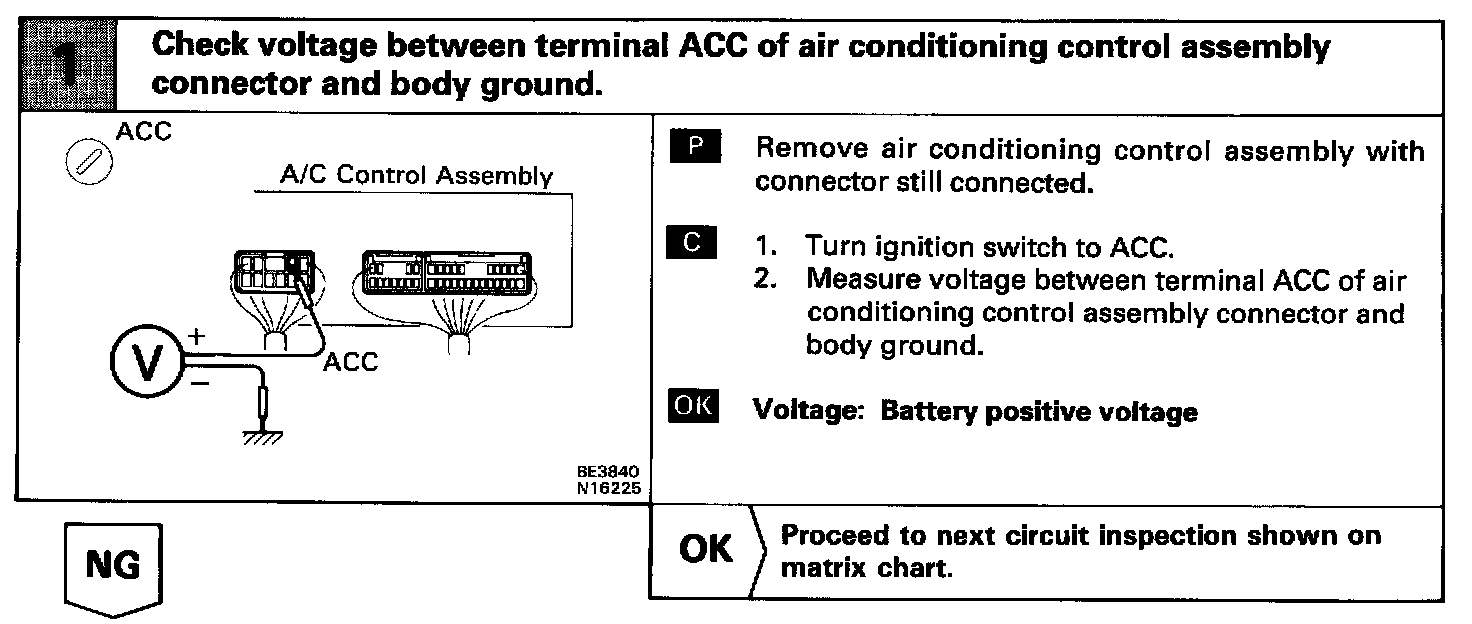

Inspection Procedure - Step 1:

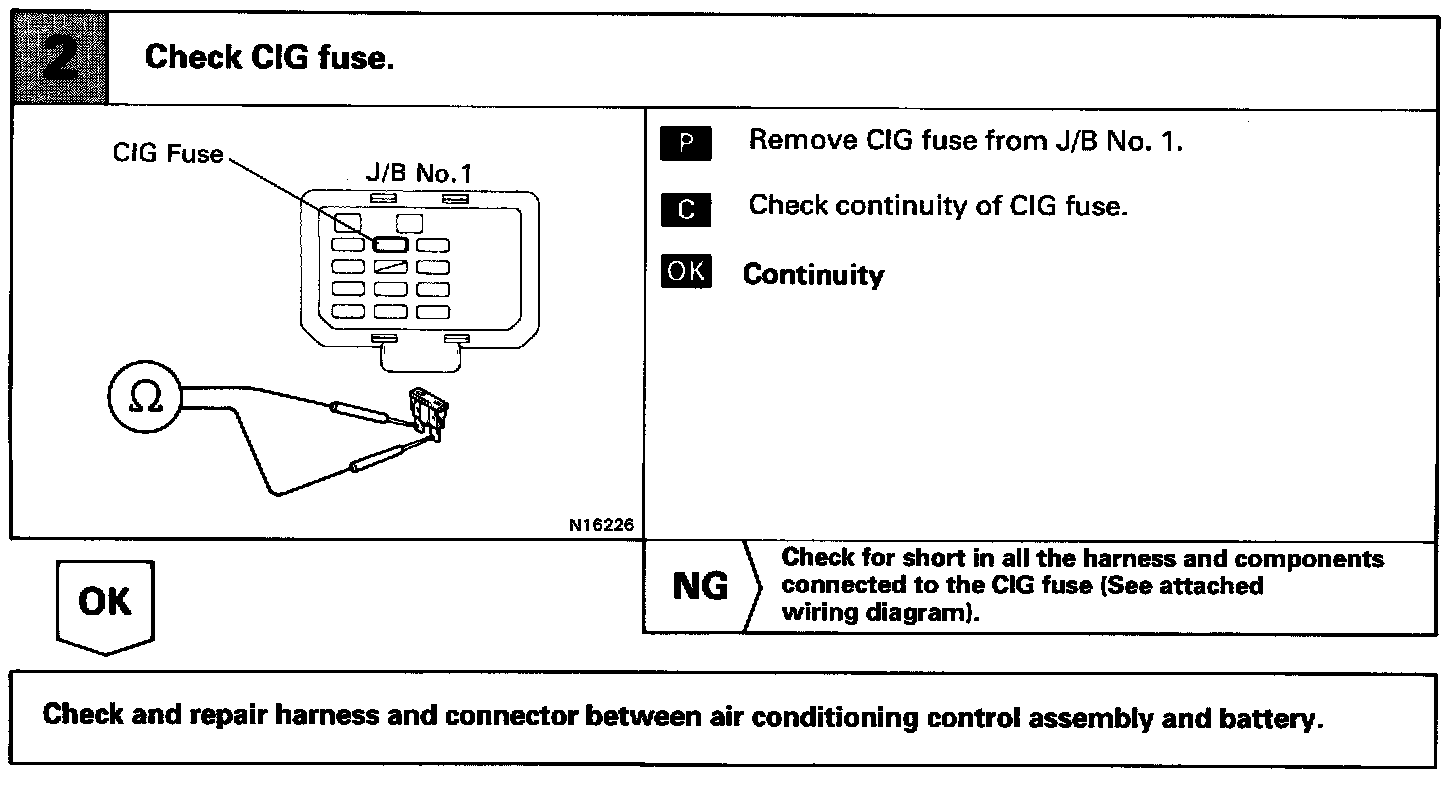

Step 2:
