Front

1. REMOVE NO.2 FRONT EXHAUST PIPE (FRONT TWC)
- Check that the converter is cool.

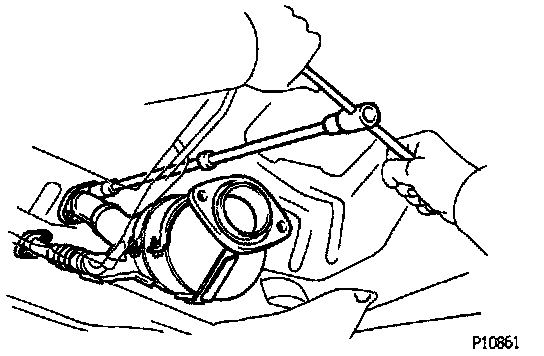

- Remove the 2 bolts and nuts holding the No.2 front exhaust pipe to the front exhaust pipe.

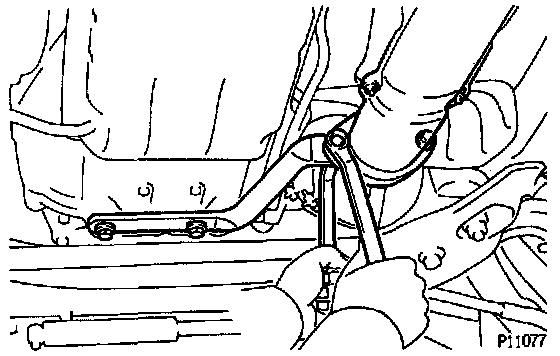

- Remove the 2 bolts and pipe support bracket from the transmission.





- Disconnect the front exhaust pipe from the No.2 front exhaust pipe, and remove the gasket.
- Remove the 4 nuts and No.2 front exhaust pipe and 2 gaskets.





2. REINSTALL NO.2 FRONT EXHAUST PIPE (FRONT TWC)

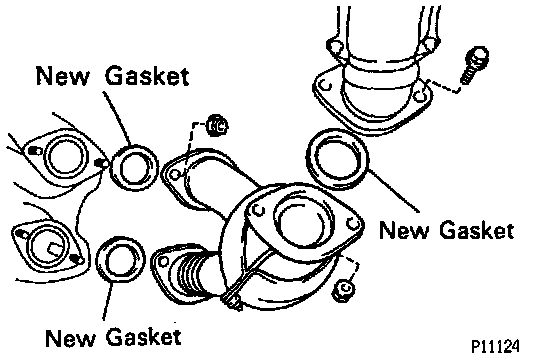

- Install 2 new gaskets and the No.2 front exhaust pipe to the exhaust manifolds with 4 new nuts.

Torque: 62 N.m (630 kgf.cm, 46 ft.lb.)

- Install the pipe support bracket to the transmission with the 2 bolts.

Torque: 43 N.m (440 kgf.cm, 32 ft.lb.)

- Install a new gasket to front end of the front exhaust pipe, and torque the front exhaust pipe to the No.2 front exhaust pipe.

Torque: 43 N.m (440 kgf.cm, 32 ft.lb.)
