Radiator Cooling Fan Motor: Testing and Inspection

1. Disconnect fan connector.
2. Connect battery and ammeter to the cooling fan connector as in Fig. 2.

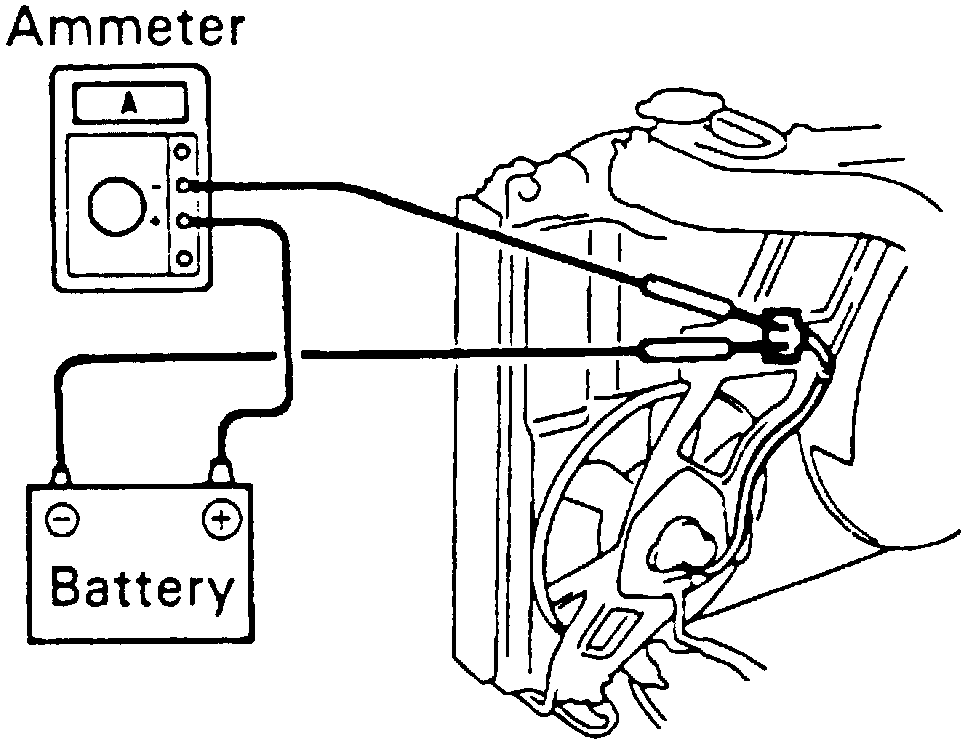

Fig. 2 Fan Motor Test Connections:

3. Ensure the cooling fan rotates smoothly, and check the reading on the ammeter. The standard amperage is 6.0-7.4 A.
4. Reconnect fan connector and battery ground.
