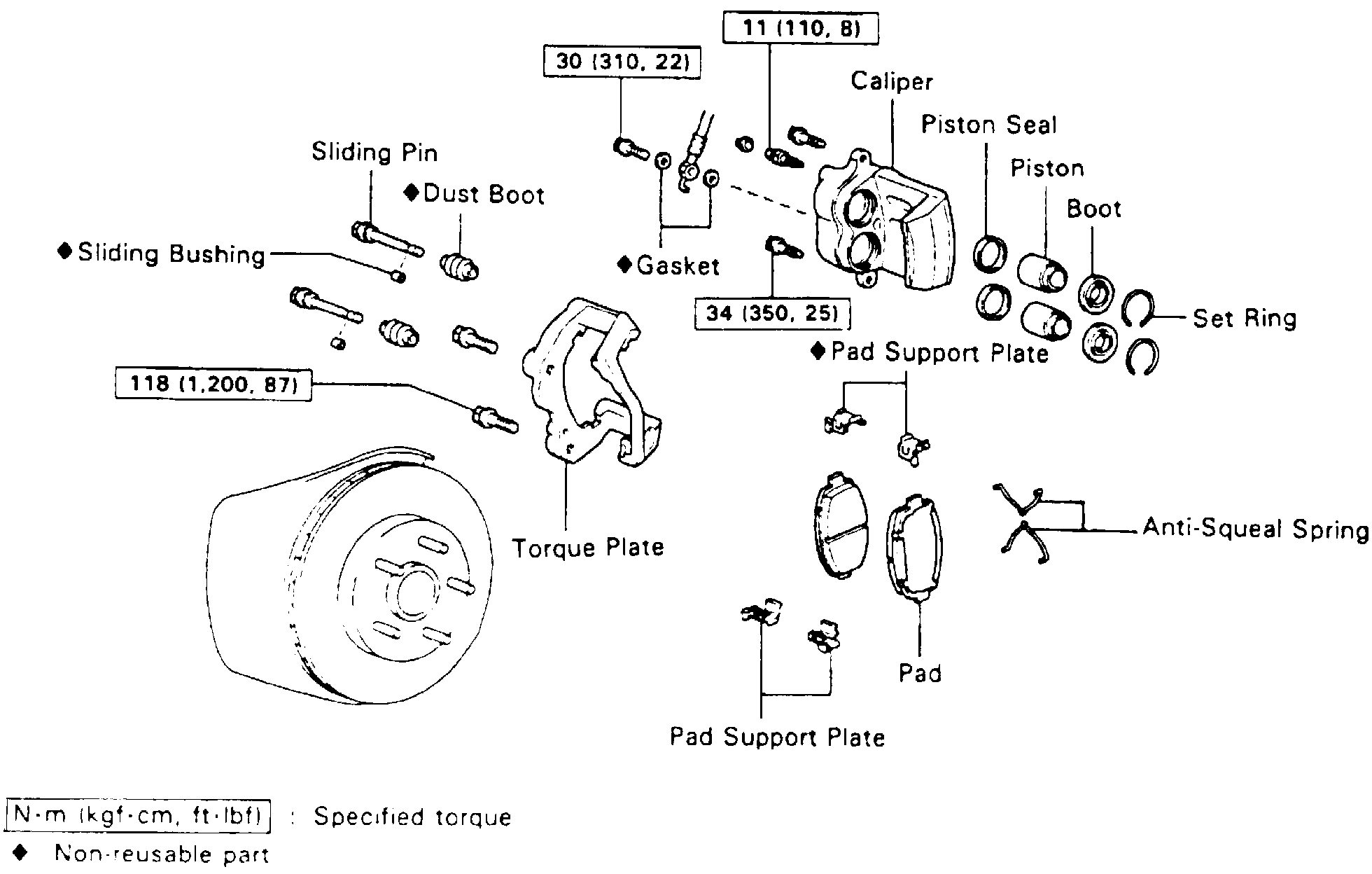

Fig. 8 Disc Brake Assembly.:

1. Remove front wheel, then check pad lining thickness. Minimum thickness should be 0.039 inch (1 mm).
2. Remove installation bolt, Fig. 8, then lift caliper and suspend with string. Do not disconnect flexible hose from caliper.
3. Remove following parts:
a. Two anti-squeal springs.
b. Two brake pads.
c. Four pad support plates.
4. Check disc thickness and runout.
5. Install pad support plates, brake pads with wear indicator facing downward, then anti-squeal springs.
6. Draw a small amount of brake fluid from reservoir, then press in pistons in with hammer handle or equivalent. Install caliper, then, holding sliding pin, tighten caliper to specifications.
7. Install front wheel, then ensure reservoir fluid level is at Max line.
