License Plate - Front And Rear Installation Procedure
BO93-007BODY
JULY 02, 1993
Title: FRONT AND REAR LICENSE PLATE INSTALLATION
GS 300
The recommended installation procedure for Lexus GS 300 front and rear license plates is as follows.
Front license plate:

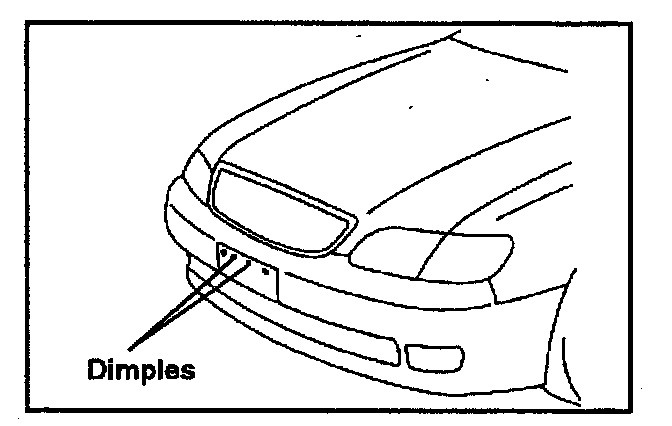

1. Locate the dimples in the center of the front bumper as shown in the illustration.
2. Install the front license plate with self tapping screws through the dimples (Do not drill holes in the dimples).
Rear license plate:

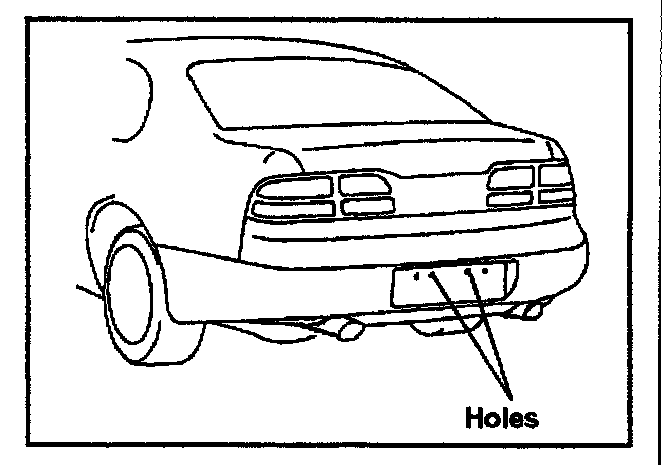

1. Locate the holes in the rear bumper as shown in the illustration.
2. Install the rear license plate with self tapping screws through the holes.

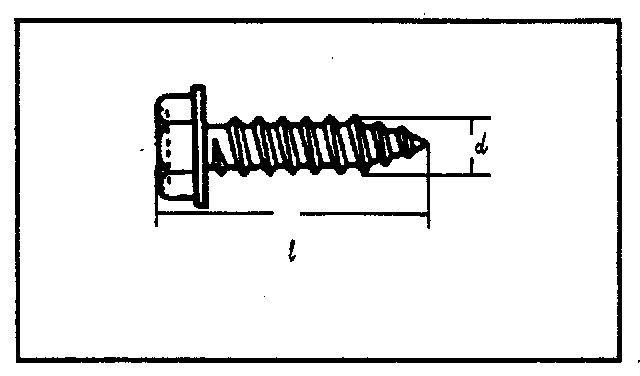

Recommended self-tapping screws:
Use the following size of self-tapping screws with a non-corrosive coating for front and rear license plate installation.
Diameter (d): 6 mm (0.24 in.)
Length (l): 20 mm (0.80 in.)
PART NUMBER INFORMATION:
00473-00002 License Plate Bolt, 4 Piece Set
