Rear Door: Service and Repair

REAR DOOR COMPONENTS






REAR DOOR DISASSEMBLY
1. REMOVE DOOR INSIDE HANDLE BEZEL
(a) Door inside handel bezel
(b) Armrest base panel
(c) Rear door courtasy light.

HINT: Tape the screwdriver tip before use.

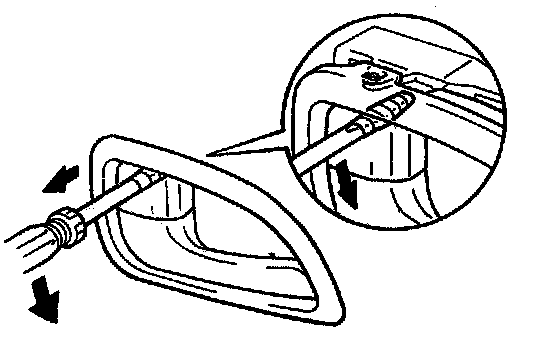

(a) Using the screwdriver, pry outward where the handle and the upper side of the bezel meet.

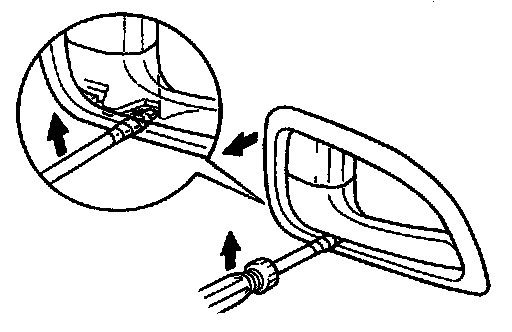

(b) Using the screwdriver, pry outward where the handle and the lower side of the bezel meet and remove the rear half of the bezel.
(c) With the door handle in open position, pull the bezel out toward the rear.






2. REMOVE DOOR TRIM

HINT: Tape a screwdriver tip before use.

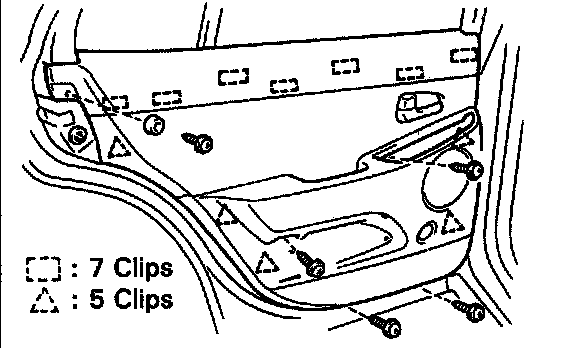

(a) Remove five screws.
(b) Insert the screwdriver between the panel and the trim and remove the clips.

NOTICE: Do not scratch the panel with the ecrewdriver.

(c) Remove the trim by pulling all of the trim up.

Install in reverse order.
