Front Door: Service and Repair

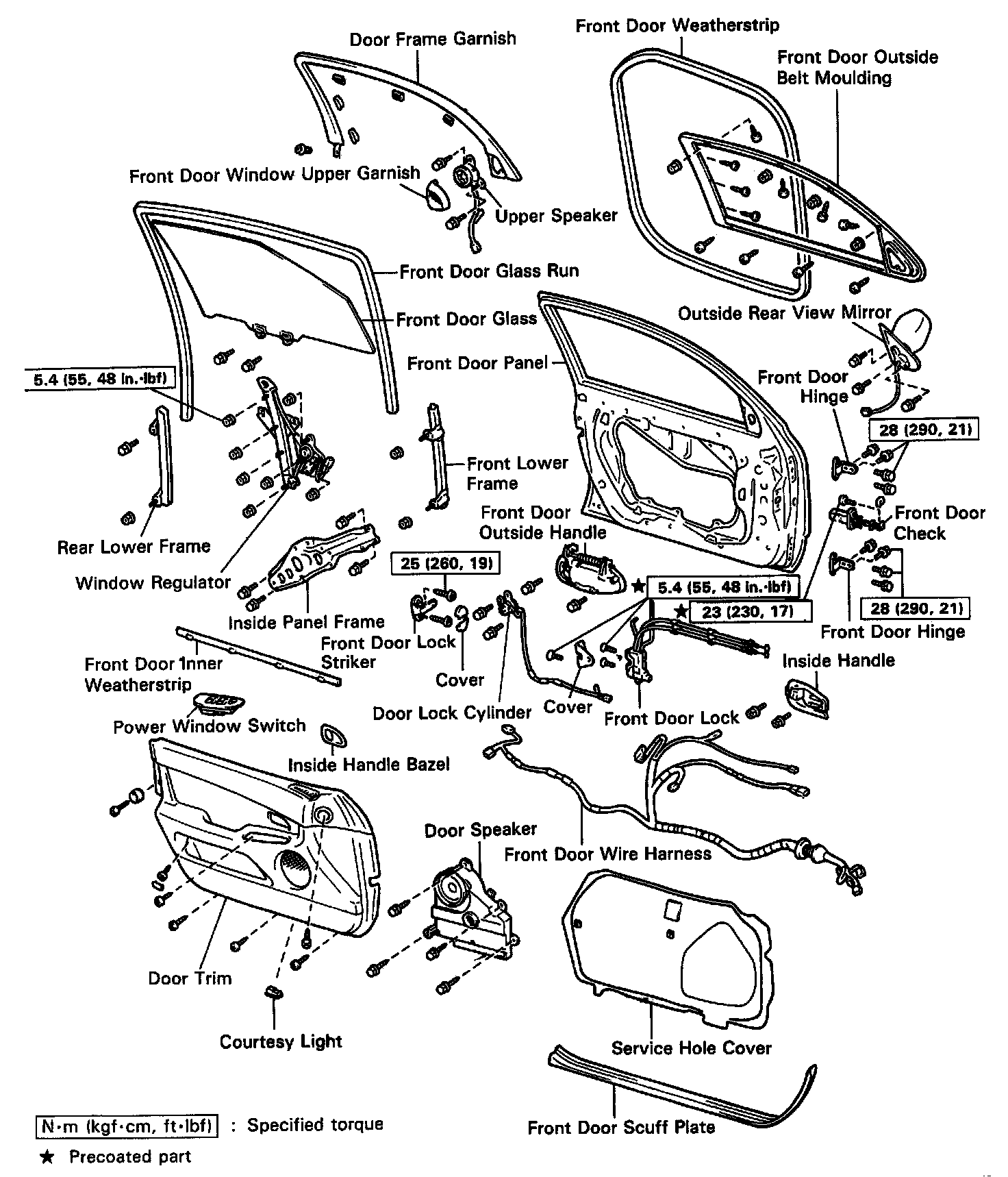

FRONT DOOR COMPONENTS






FRONT DOOR DISASSEMBLY

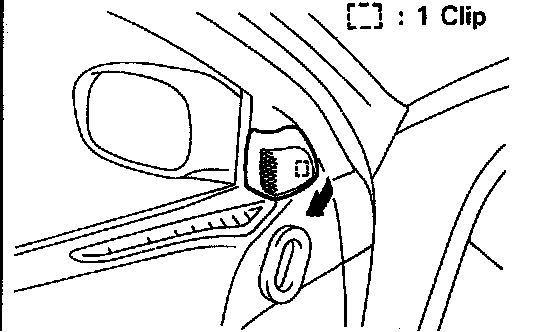

1. REMOVE FRONT DOOR WINDOW UPPER GARNISH
(a) Front door window upper garnish
(b) Door inside handel bezel
(c) Power window switch

HINT: Tape a screwdriver tip before use. Using the screwdriver, pry loose two clips and remove garnish.






2. REMOVE DOOR INSIDE HANDLE BEZEL

HINT: Tape a screwdriver tip before use.

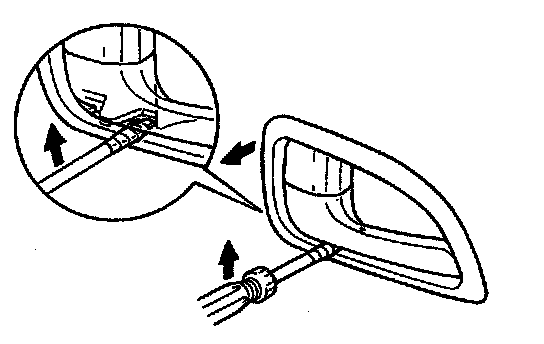

(a) Using the screwdriver. pry outward where the handle and the upper side of the bezel meet.

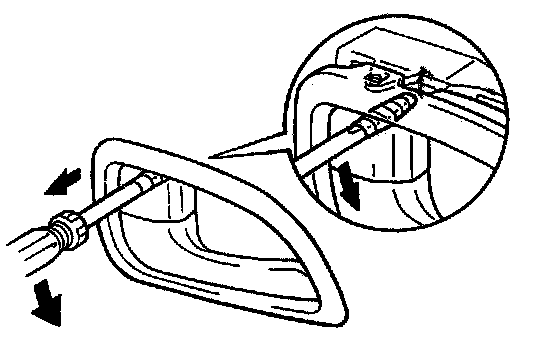

(b) Using the screwdriver, pry outward where the handle and the lower side of the bezel meet and remove the rear half of the bezel.

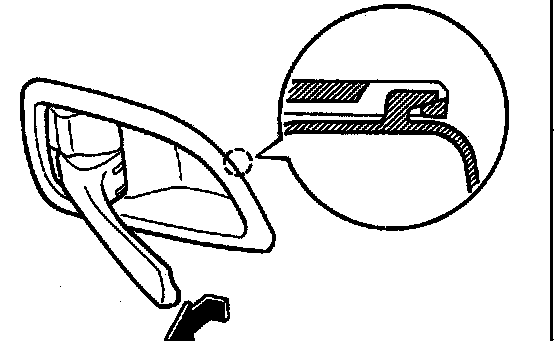

(c) With the door handle in open position, pull the bezel out toward the rear.






(b) Using the screwdriver, remove the cap.

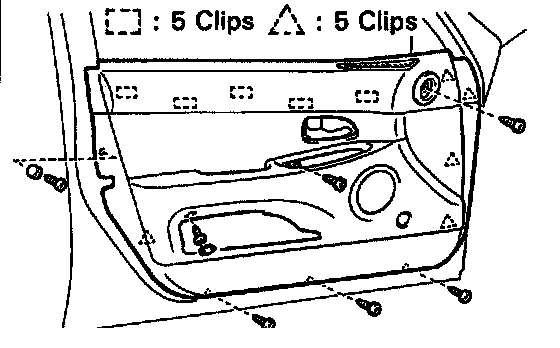

(c) Remove seven screws.
(d) Insert the screwdriver between the panel and the trim and remove the clips.

NOTICE: Do not scratch the panel with the screwdriver.

(e) Remove the trim by pulling all of the trim up.

Install in reverse order.
