Transmission Control System

CIRCUIT DESCRIPTION
The park/neutral position switch detects the shift lever position and sends signals to the ECM.
The ECM receives signals (NSW,R,2 and L) from the park/neutral position switch. When the signal is not sent to the ECM from the park/neutral position switch, the ECM judges that the shift lever is in the D position.

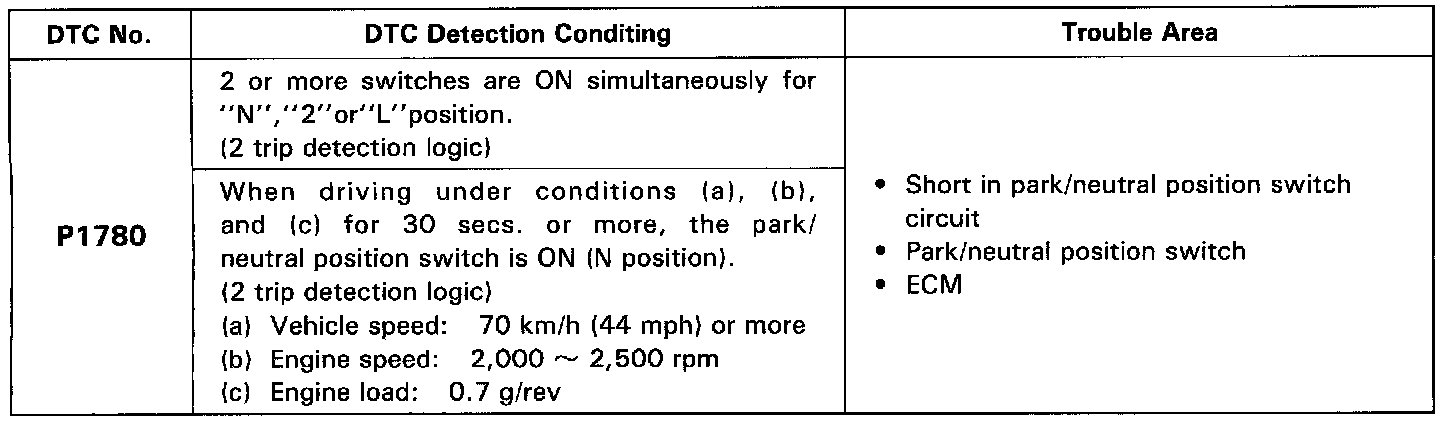

DETECTING CONDITION

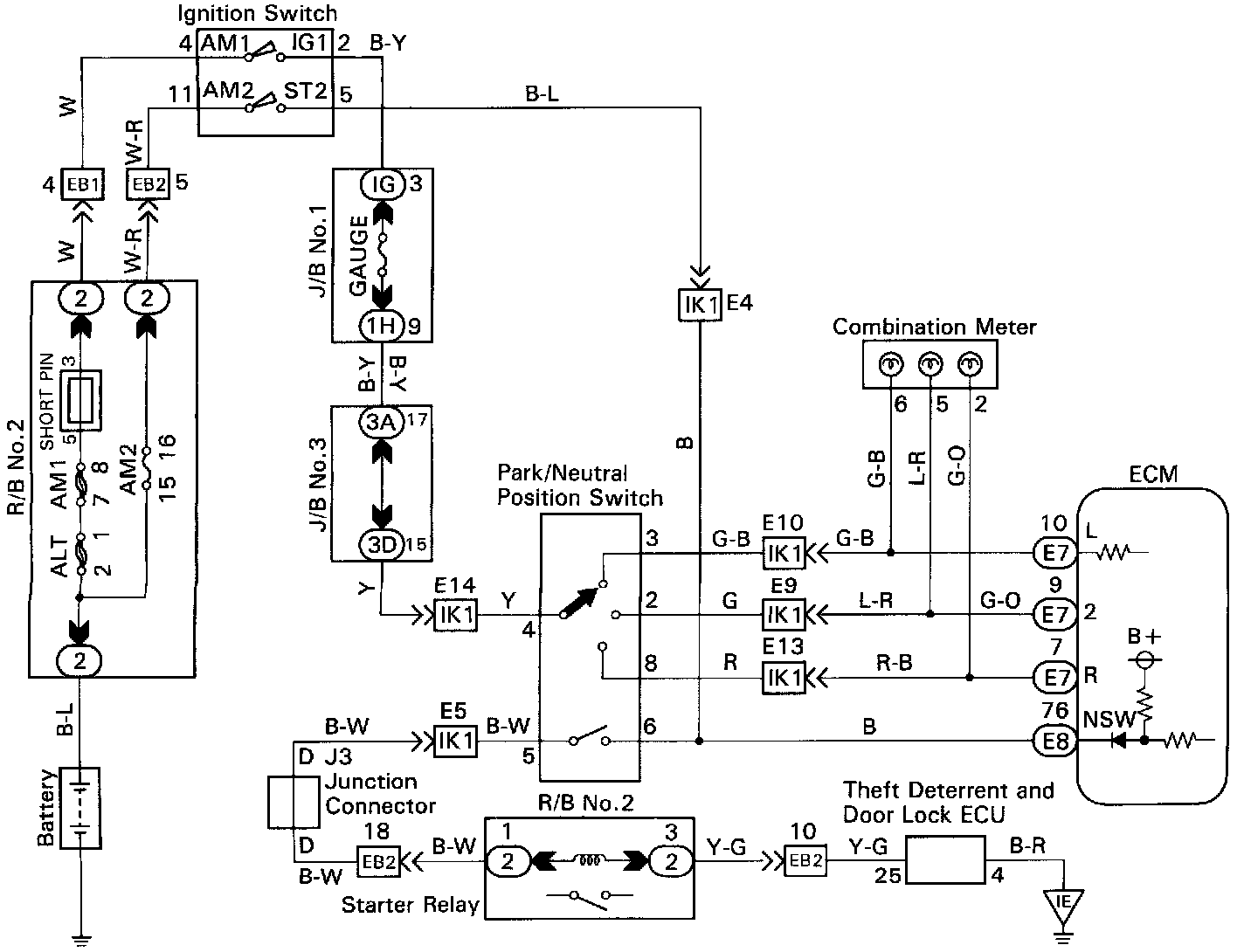

WIRING DIAGRAM

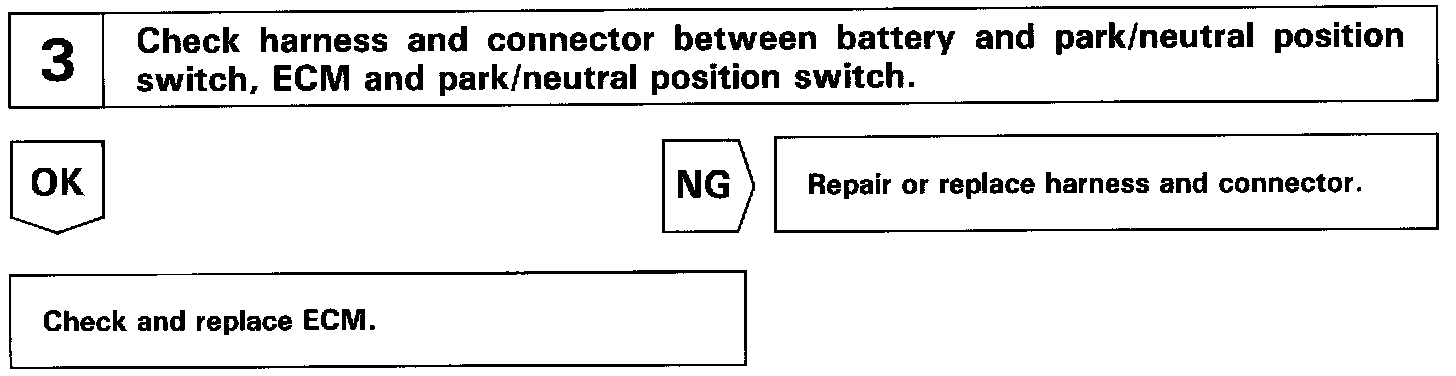

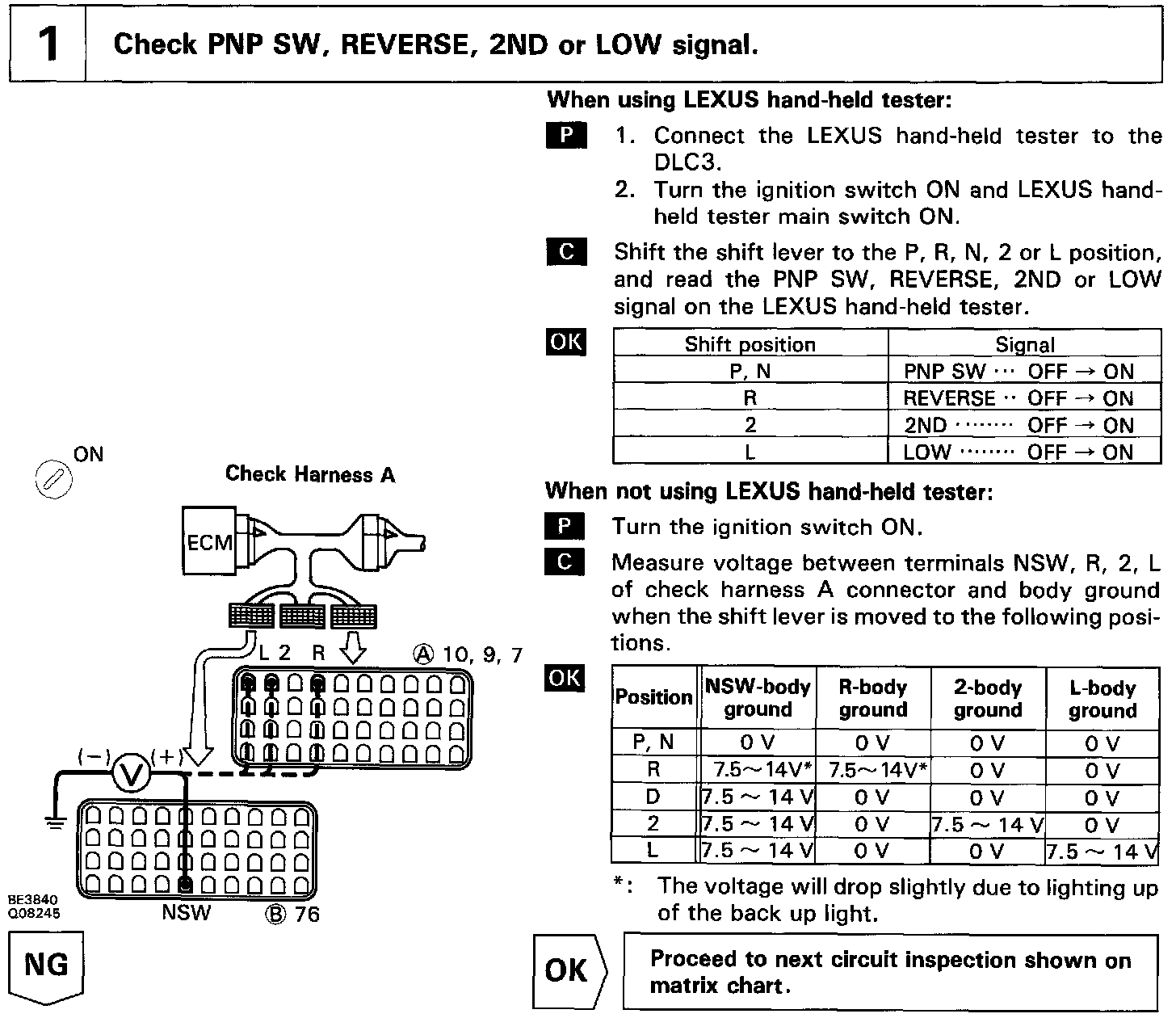

INSPECTION PROCEDURE
