P1600

CIRCUIT DESCRIPTION
Battery positive voltage is supplied to terminal BATT of the ECM even when the ignition switch is OFF for use by the DTC memory and air-fuel ratio adaptive control value memory, etc.

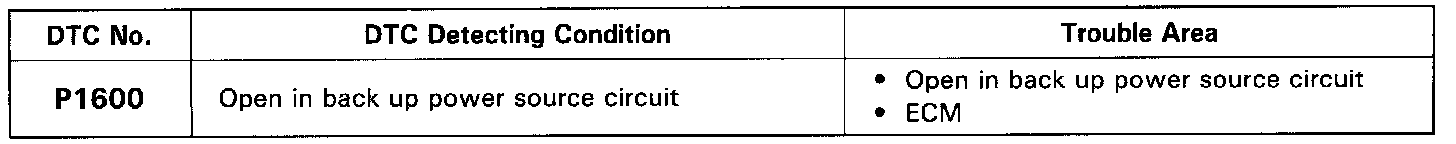

DETECTING CONDITION

HINT: If DTC P16OO appear, the ECM does not store another DTC.

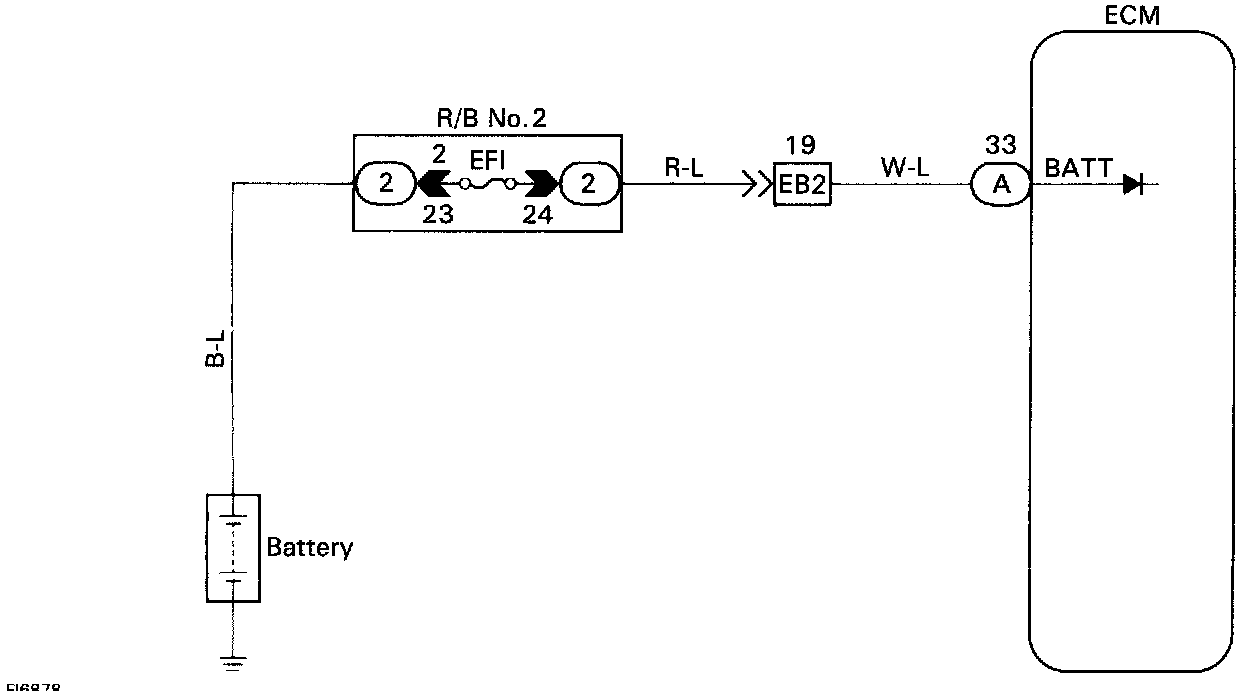

WIRING DIAGRAM

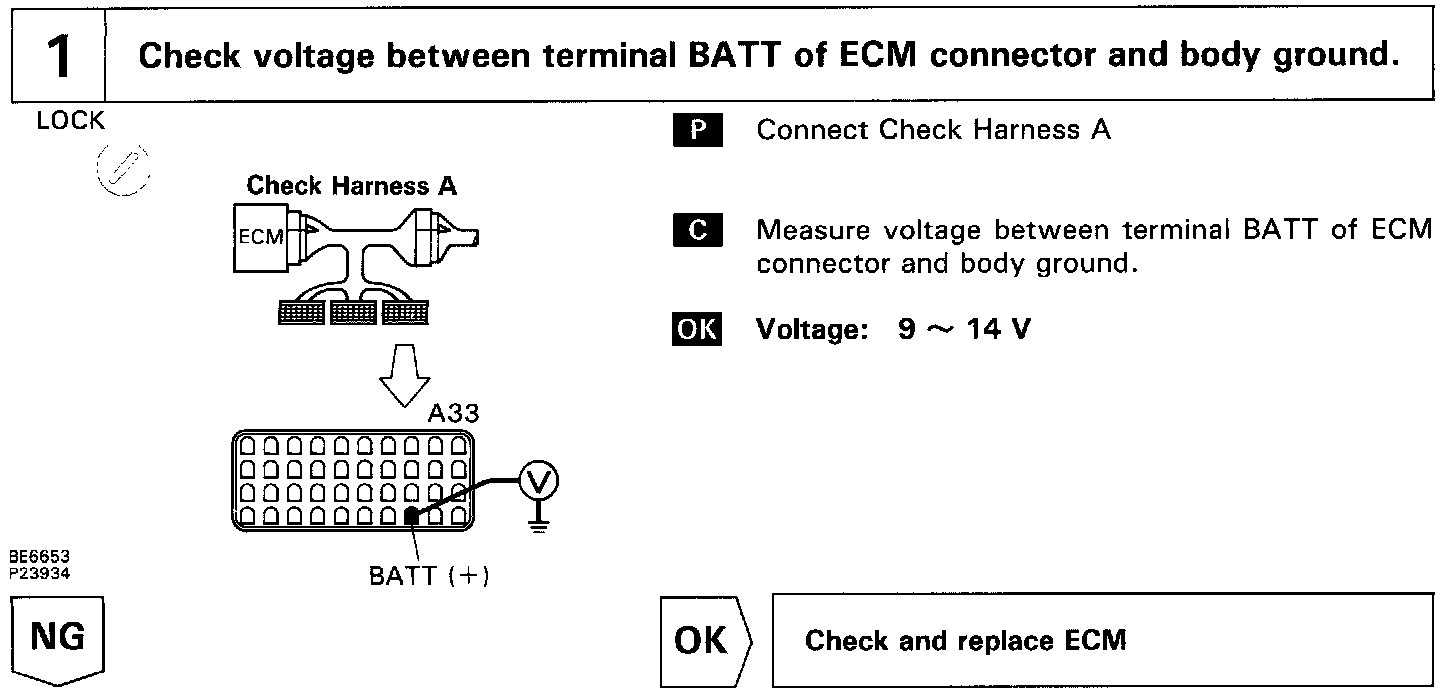

INSPECTION PROCEDURE
