Troubleshooting

DTC P0710 Transmission Fluid Temperature Sensor Circuit Malfunction (ATF Temperature Sensor)

CIRCUIT DESCRIPTION
The ATF temperature sensor converts fluid temperature into a resistance value which is input into the ECM.

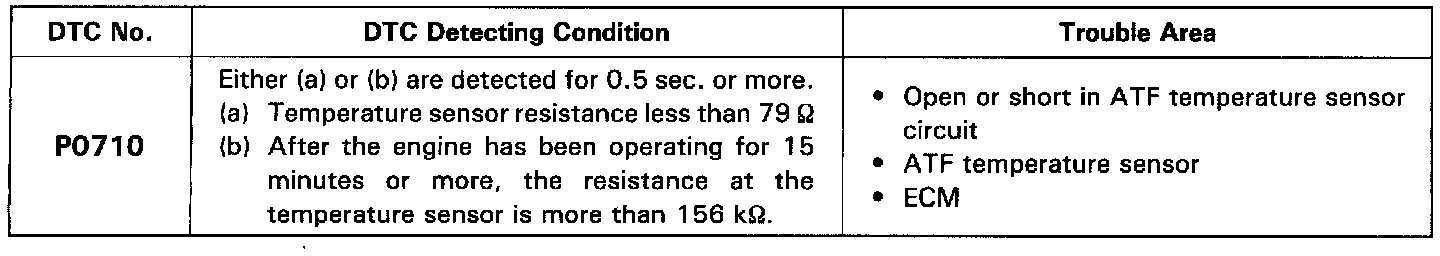

DETECTING CONDITION

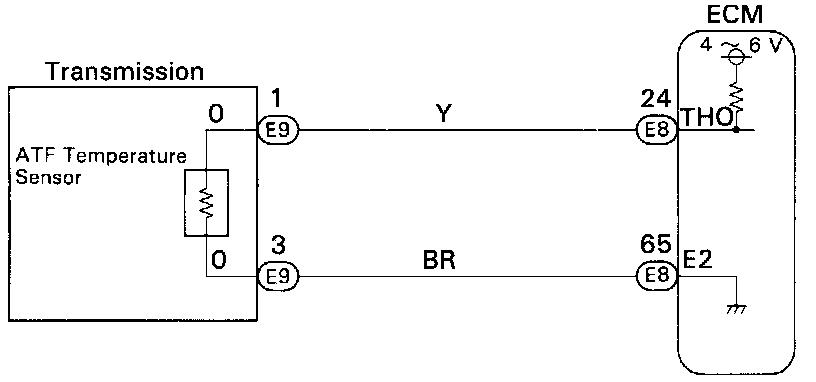

WIRING DIAGRAM

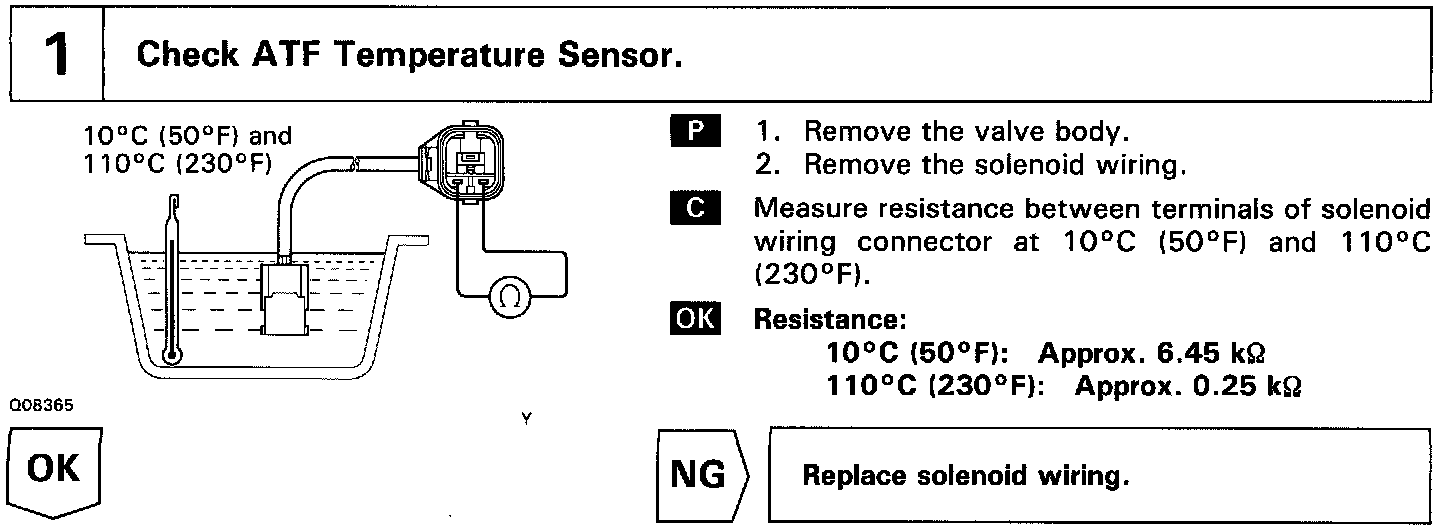

INSPECTION PROCEDURE
