P0510

CIRCUIT DESCRIPTION

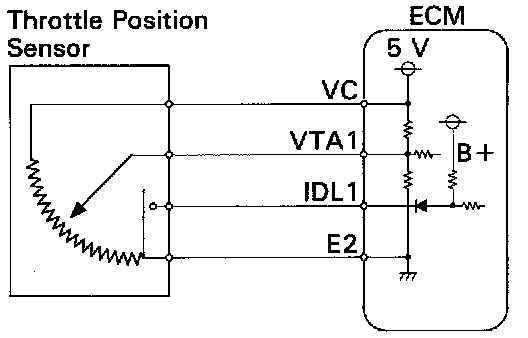

The throttle position sensor is mounted in the throttle body and detects the throttle valve opening angle. When the throttle valve is fully closed, the IDL1 contacts in the throttle position sensor are on, so the voltage at the terminal IDL1 of the ECM becomes 0 V. At this time, a voltage of approximately 0.7 V is applied to terminal VTA1 of the ECM. When the throttle valve is opened, the IDL1 contacts go off and thus the power source voltage of approximately 12 V in the ECM is applied to the terminal IDL1 of the ECM. The voltage applied to the terminal VTA1 of the ECM increases in proportion to the opening angle of the throttle valve and becomes approximately 3.2 ~ 4.9 V when the throttle valve is fully opened. The ECM judges the vehicle driving conditions from these signals input from terminals VTA1 and IDL1, and uses them as one of the conditions for deciding the air-fuel ratio correction, power increases correction and fuel-cut control etc.

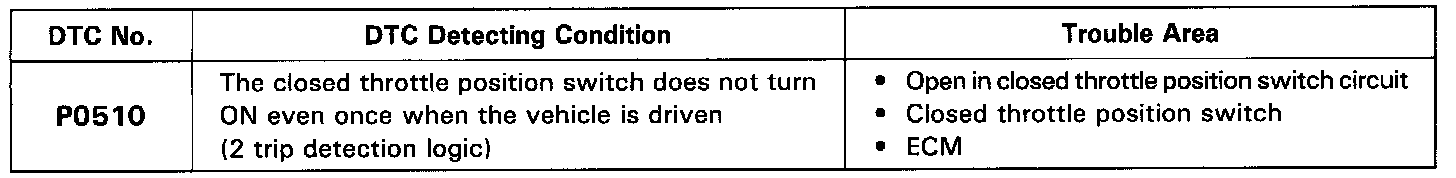

DETECTING CONDITION

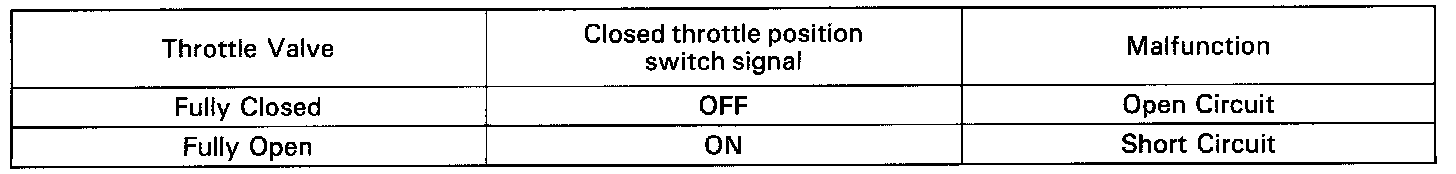

HINT: After confirming DTC PO510 use the LEXUS hand-held tester to confirm the closed throttle position switch signal from "CURRENT DATA".

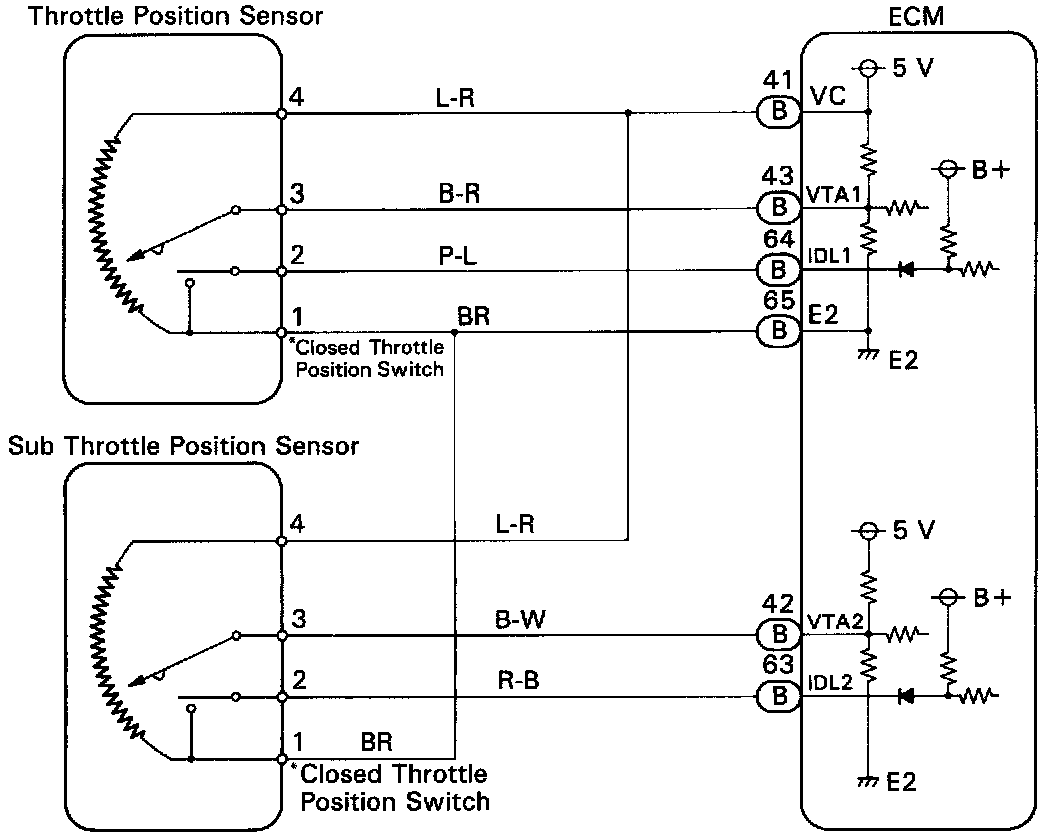

WIRING DIAGRAM


HINT: If DTC P0110, P0115 and P0120 are output simultaneously, E2 (sensor ground) may be open.







INSPECTION PROCEDURE

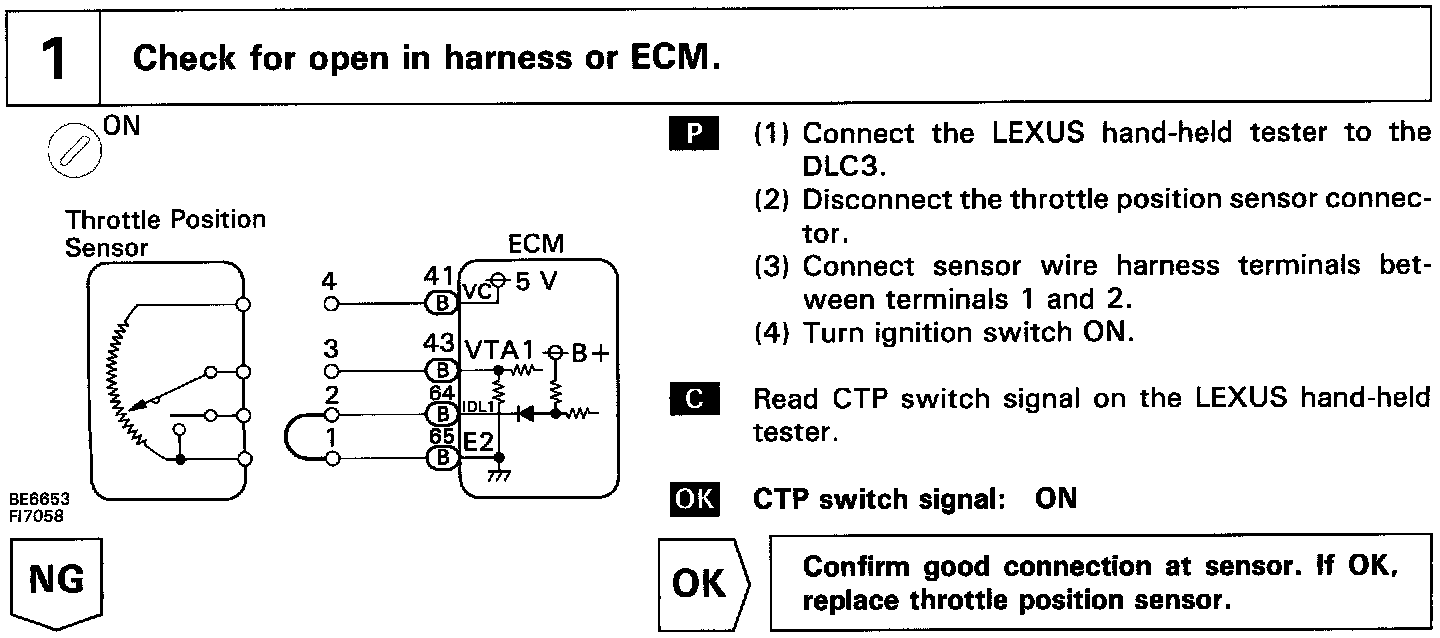

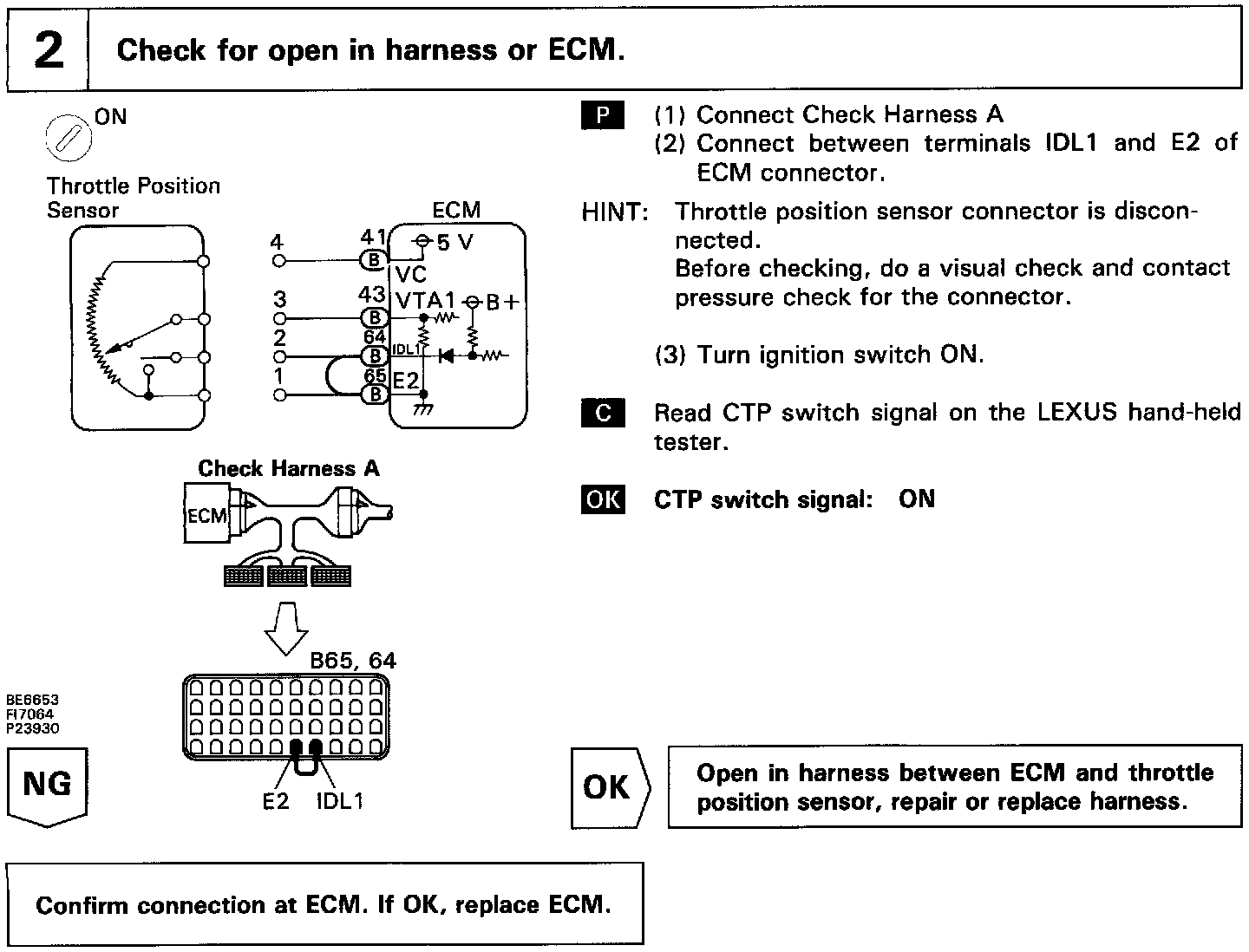

LEXUS hand-held tester

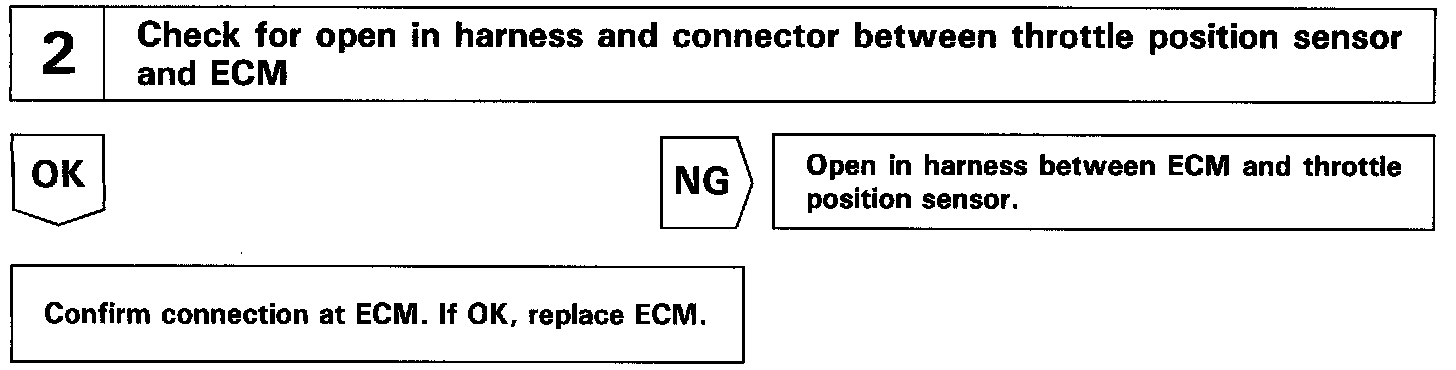

INSPECTION PROCEDURE
OBD II scan tool (excluding LEXUS hand-held tester)
