Manual Shifting Test

HINT: With this test, it can be determined whether the trouble is within the electrical circuit or is a mechanical problem in the transaxle.

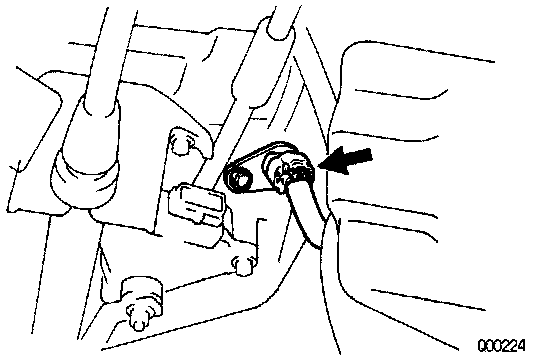

1. DISCONNECT SOLENOID WIRE
2. INSPECT MANUAL DRIVING OPERATION

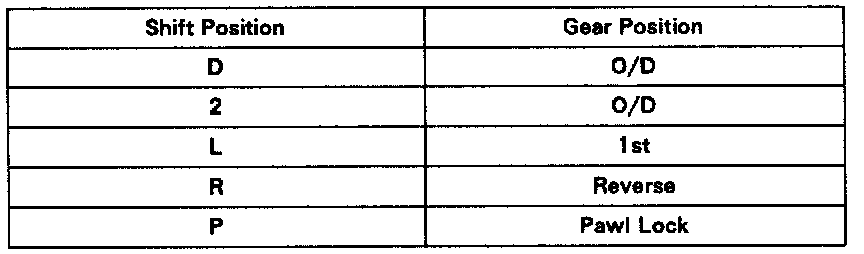

- Check that the shift and gear positions correspond with the table below.






HINT:
- If the positions (L, 2 and D position) are difficult to distinguish, do the following road test.
- While driving. shift through the L, 2 and D positions.
- Check that the gear change corresponds to the shift position.
- If any abnormality is found in the above test, the problem is in the transaxle itself.

3. CONNECT SOLENOID WIRE
4. CANCEL OUT DTC
