97 A541E All

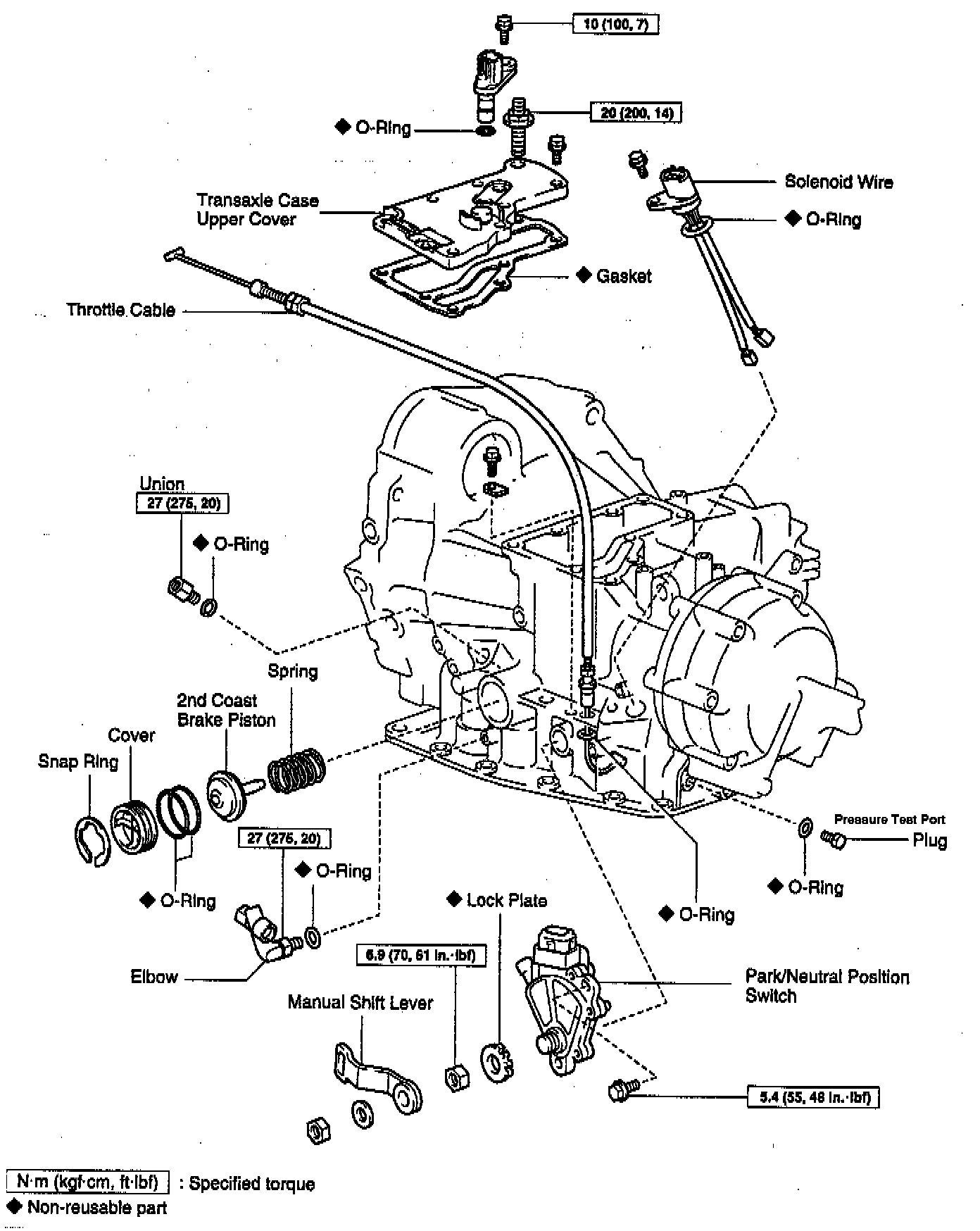

External Components:



Valve Body And Accumulators:



Differential:

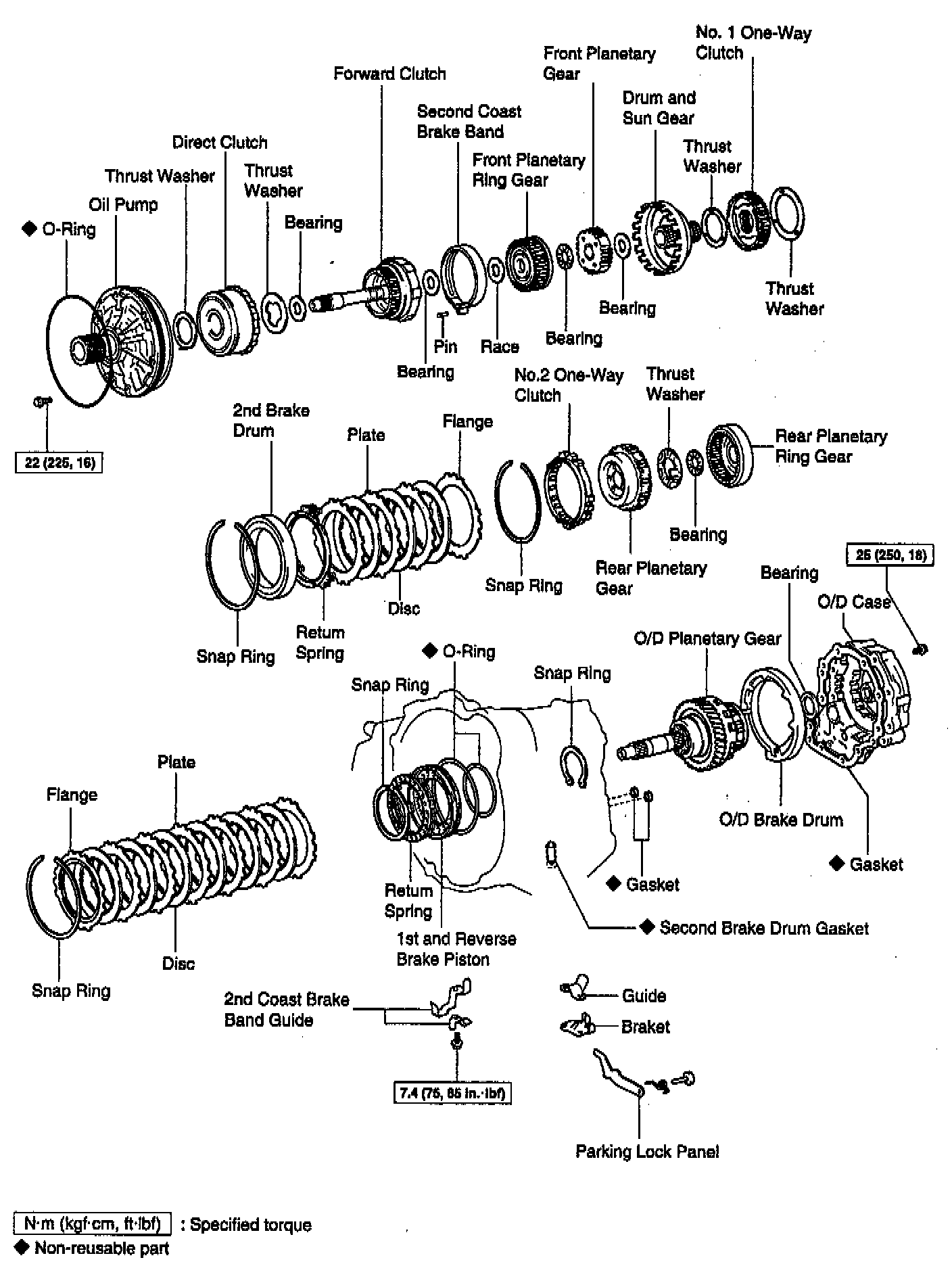

Internal Components:

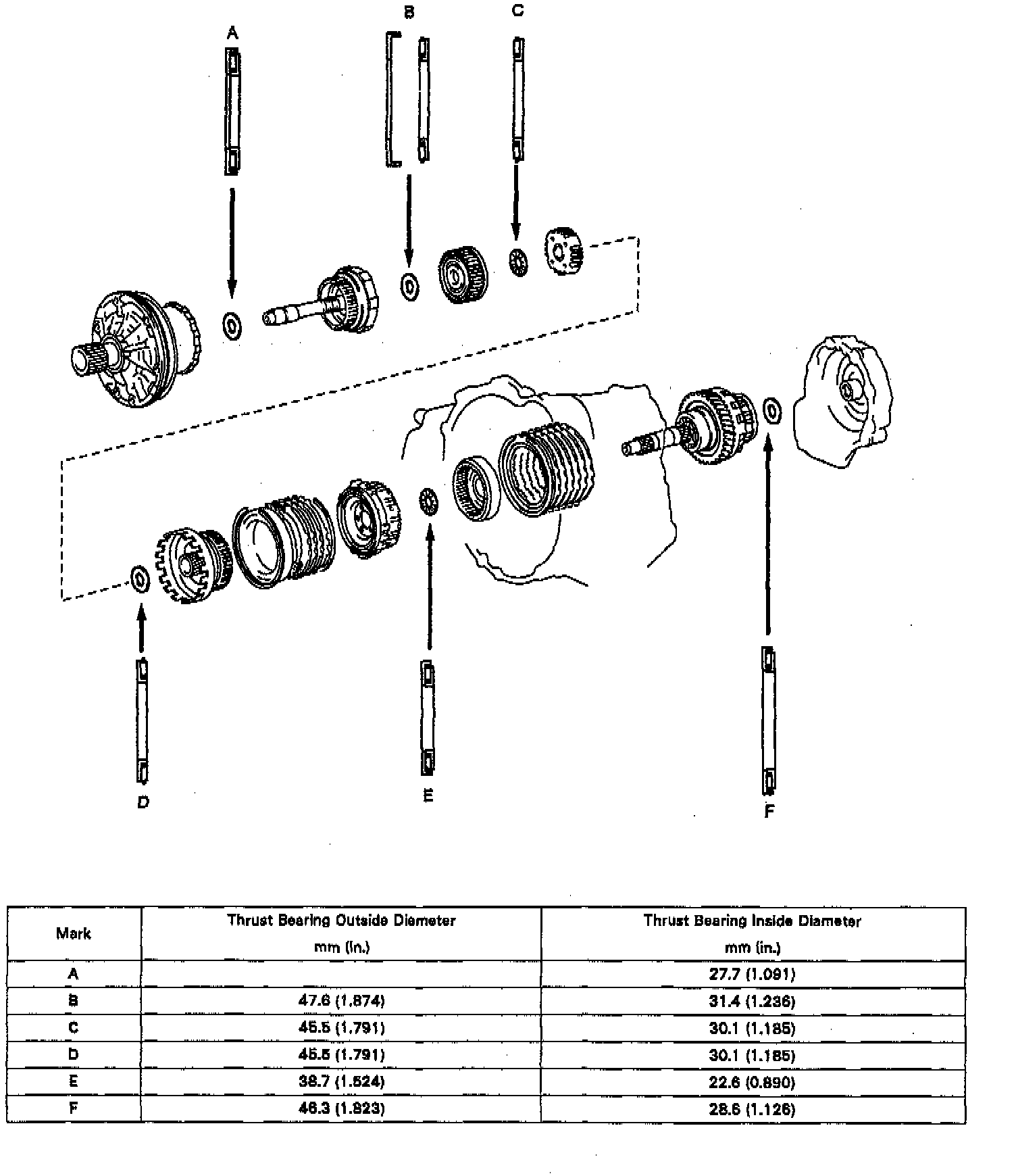

Thrust Bearings:
