Front

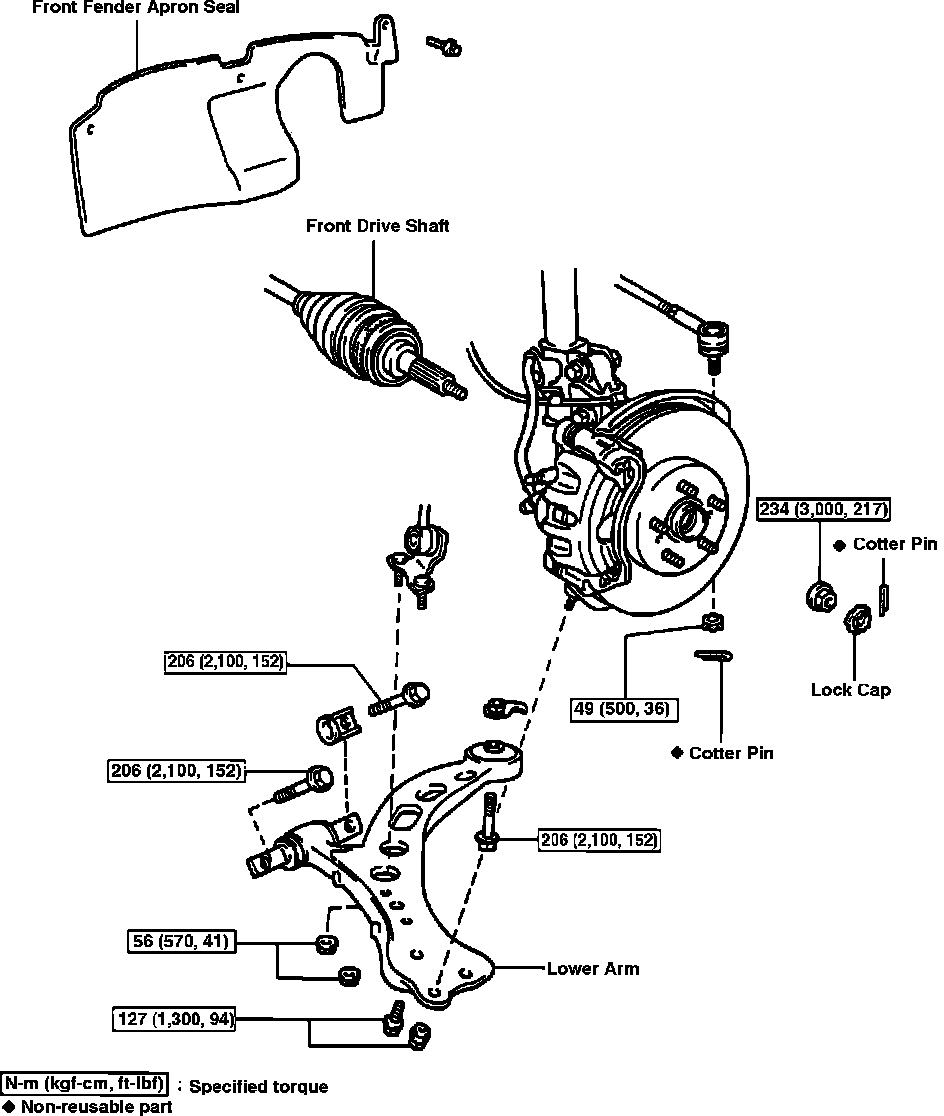

Fig. 16 Exploded View Of Lower Suspension Arm Components:

1. Raise and support vehicle, then remove front wheels.
2. Remove driveshaft locknut, then disconnect tie rod end from steering knuckle using ball joint puller 09628-62011 or equivalent.
3. Remove left and right stabilizer end brackets from lower suspension arm, Fig. 16.
4. Disconnect lower suspension arm from lower ball joint.
5. Remove driveshaft from axle hub and support with wire. Use care not to damage driveshaft boot and ABS sensor rotor.
6. Remove two bolts on front side of lower suspension arm, nut and bolt on rear side, then the lower suspension arm.
7. Reverse procedure to install.
