Initial Inspection and Diagnostic Overview

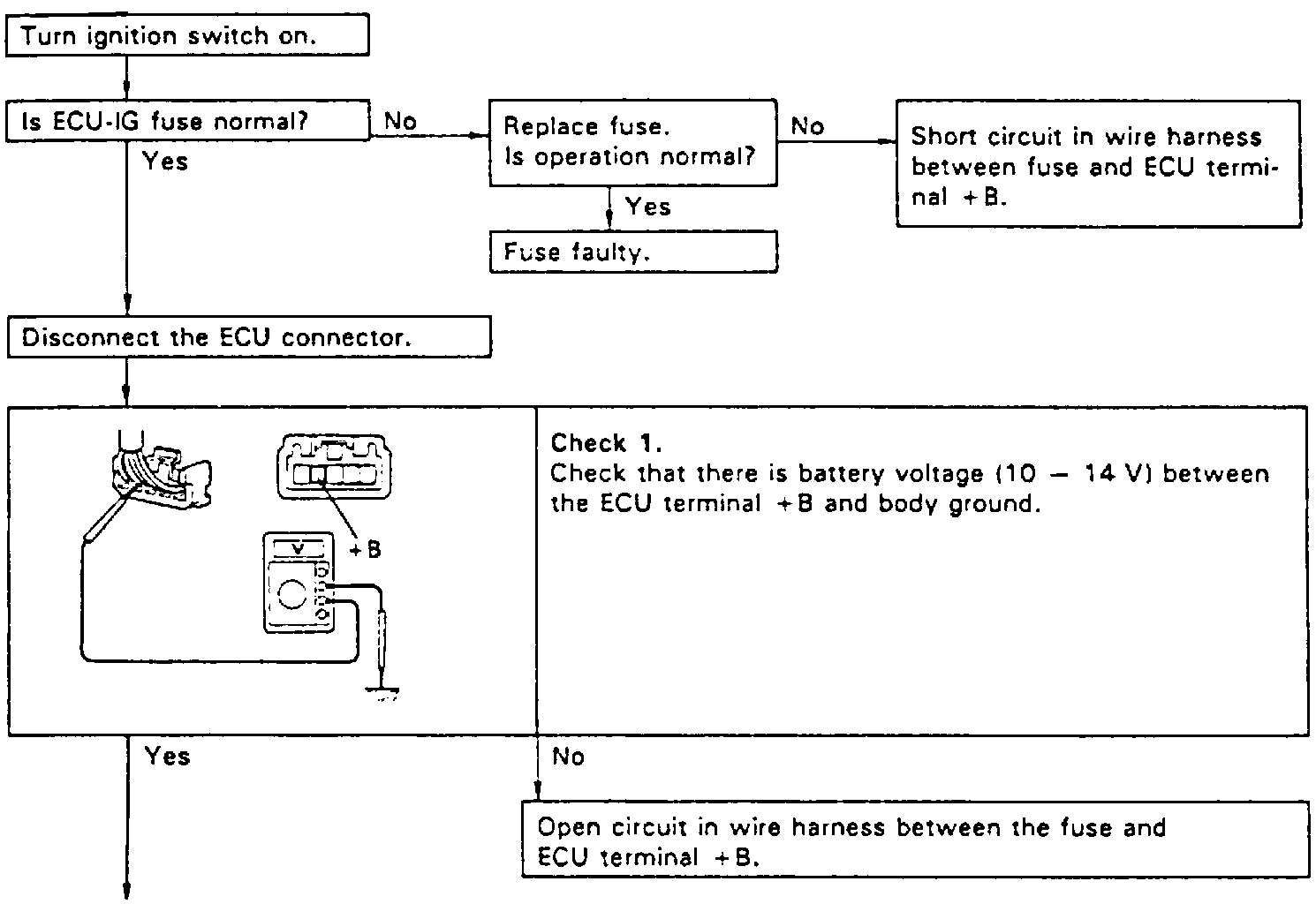

Fig. 29 Electronic Control System Diagnosis (Part 1 Of 3).:

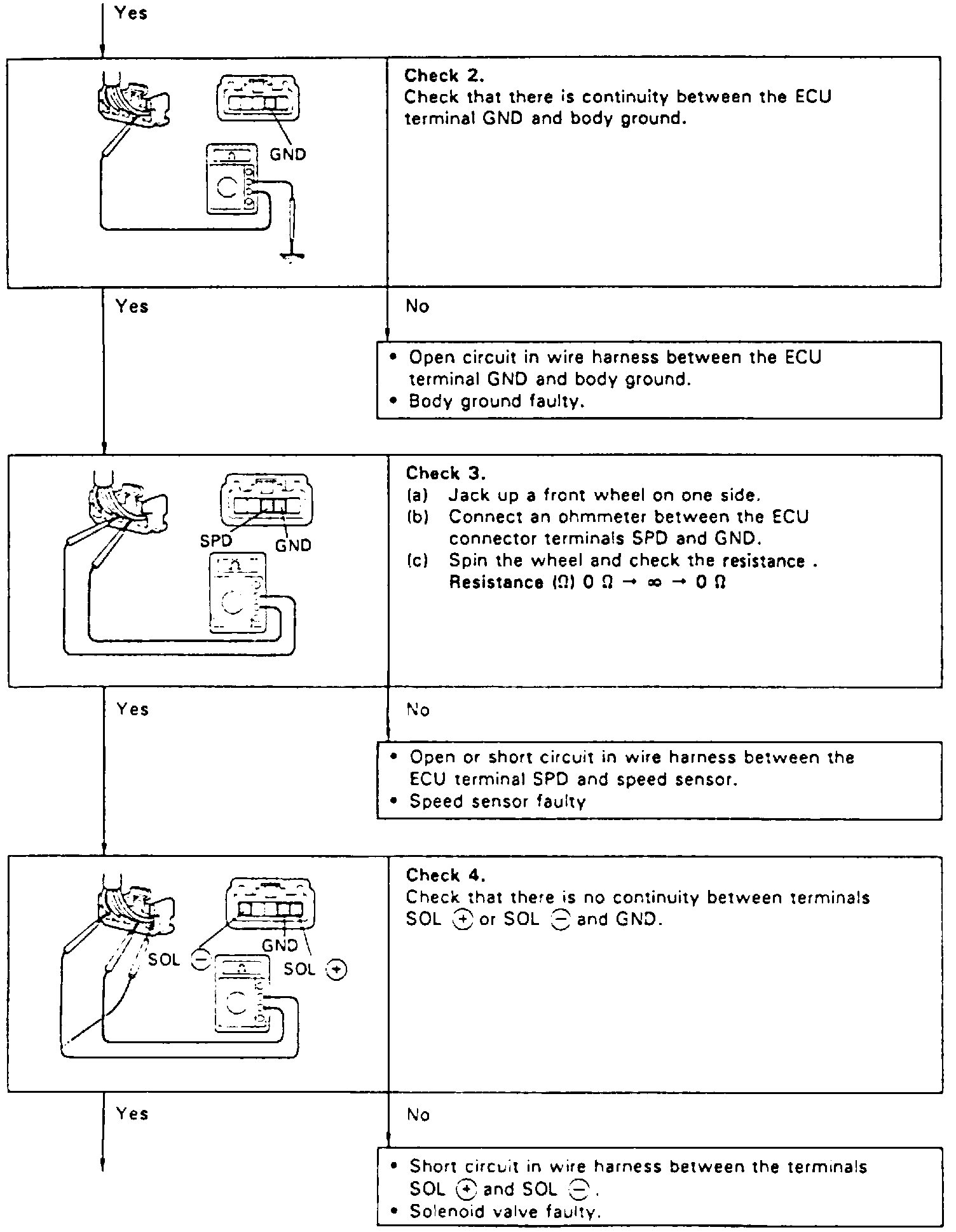

Electronic Control System Diagnosis (Part 2 Of 3).:

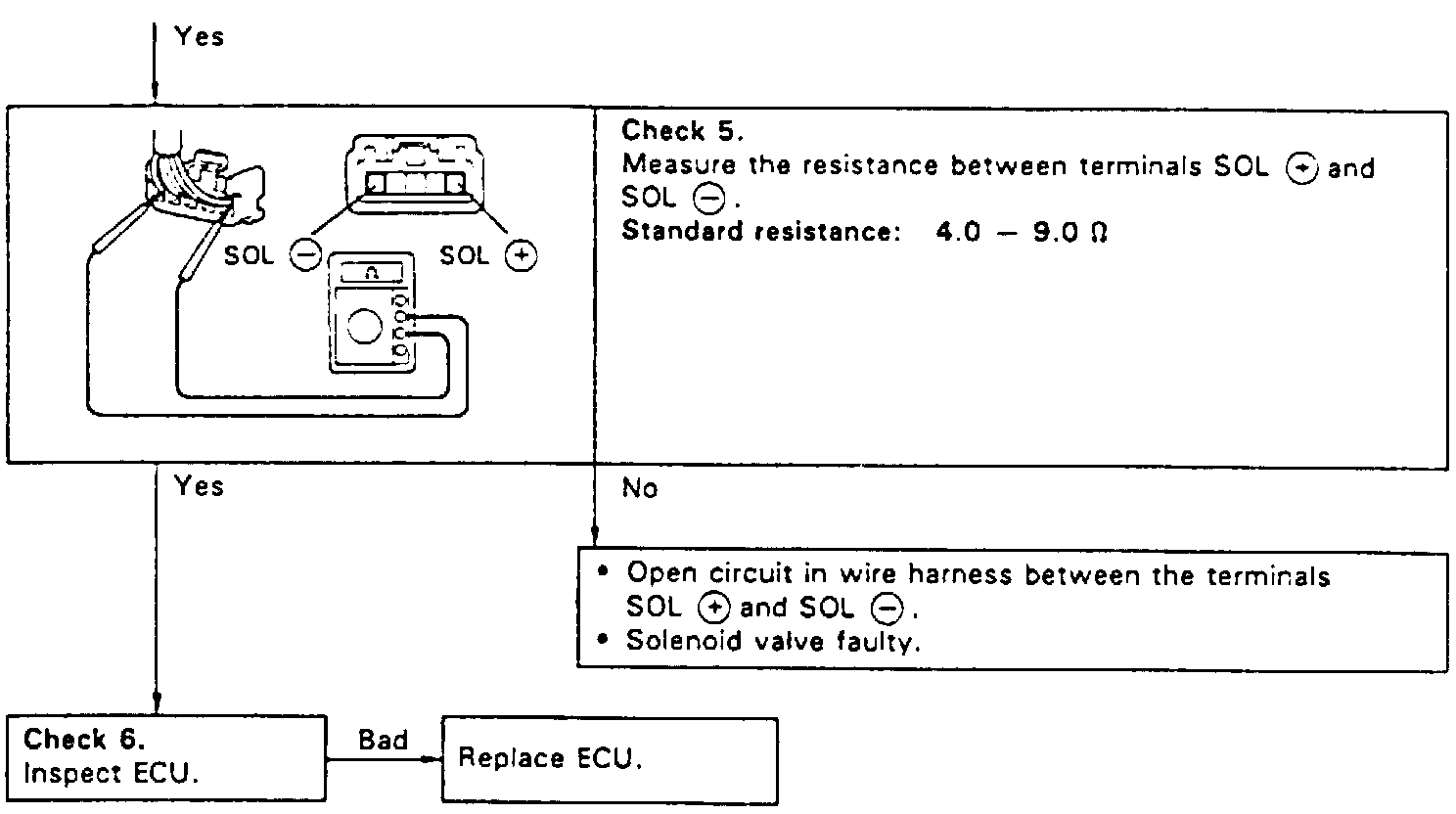

Electronic Control System Diagnosis (Part 3 Of 3).:
