Removal and Installation

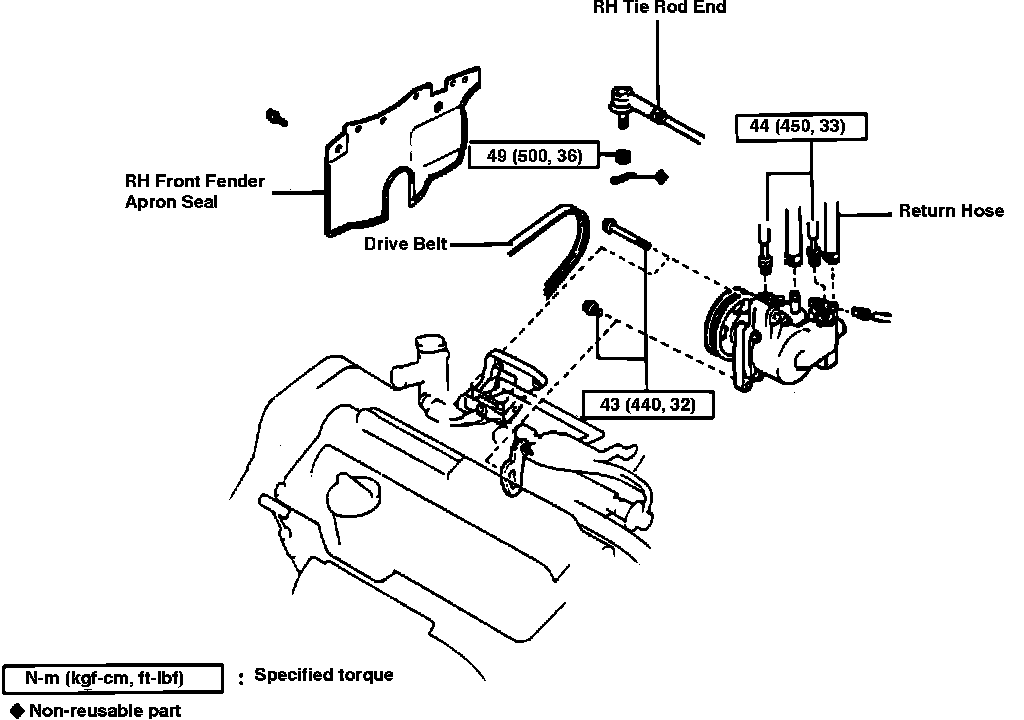

Fig. 30 Removing Power Steering Pump:

Refer to Fig. 30 when replacing power steering pump, noting the following:
1. Disconnect and connect the pressure line using power steering hose nut wrench set 09631-22020 or equivalent.
2. Bleed power steering system after installation.
