Transmission Speed Sensor: Service and Repair

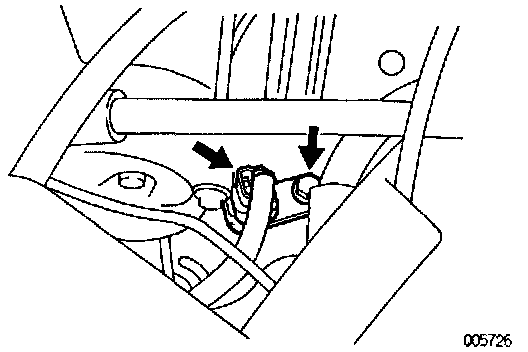

1. DISCONNECT DIRECT CLUTCH SPEED SENSOR CONNECTOR
2. REMOVE DIRECT CLUTCH SPEED SENSOR
- Remove the bolt and direct clutch speed sensor.

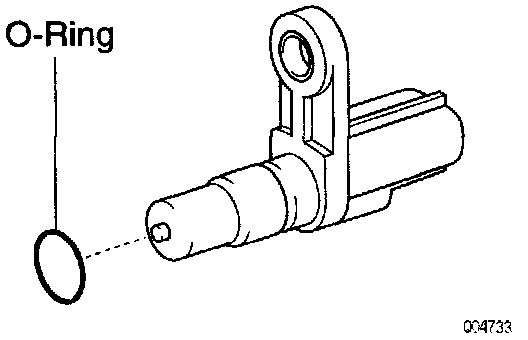

- Remove the O-ring from direct clutch speed sensor.
3. INSTALL DIRECT CLUTCH SPEED SENSOR
- Coat a new O-ring with ATF and install it to the direct clutch speed sensor.
- Install the direct clutch speed sensor and torque the bolt.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lb.)
