Without Scan Tool

DTC CLEARING
Using Diagnosis Check Wire:

(a) Connect service wires to terminals Tc and AB of the DLC1 or DLC2.
(b) Turn the ignition switch to ACC or ON and wait approx. 6 seconds.

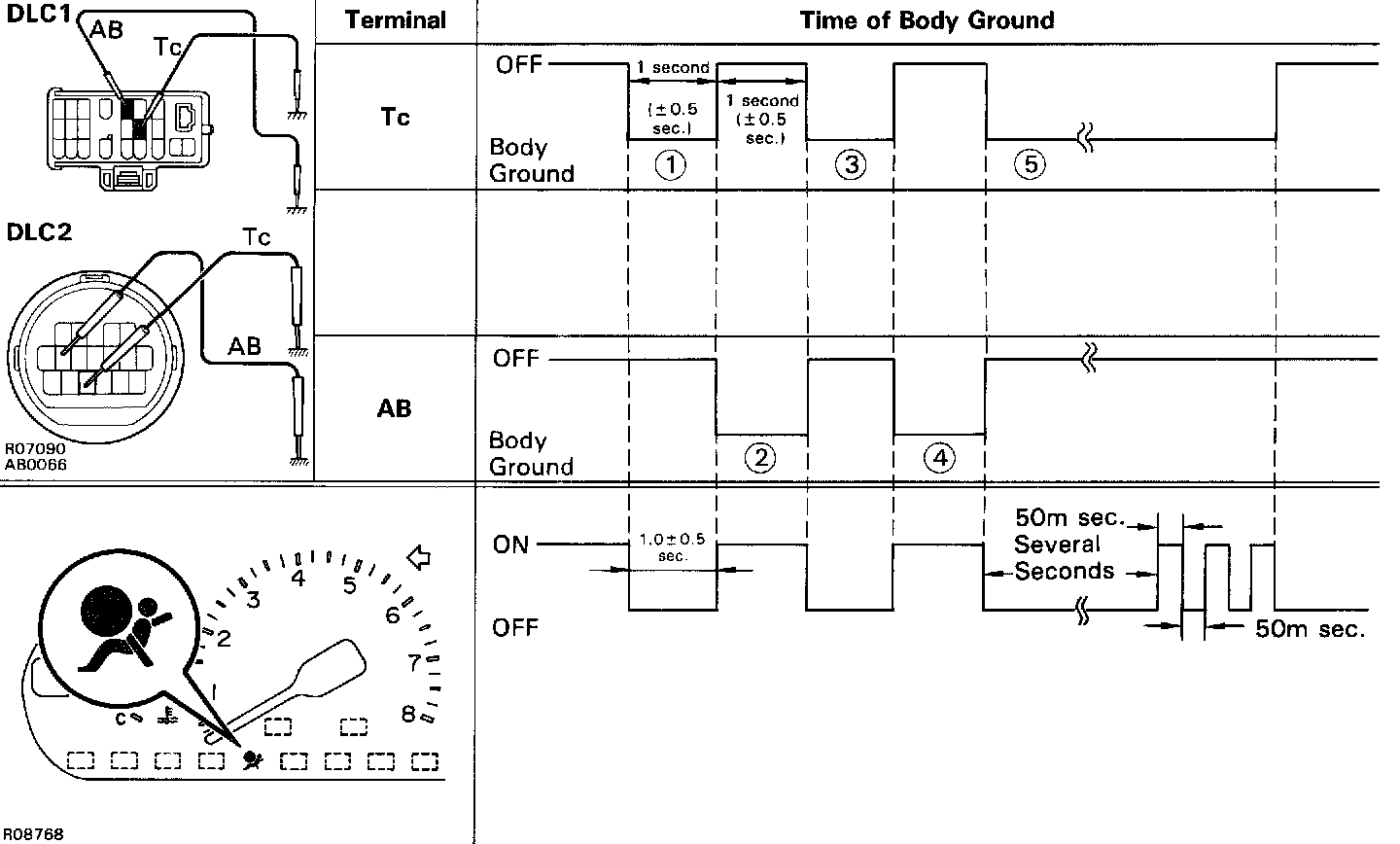

(c) Starting with the Tc terminal, apply body ground alternately to terminal Tc and terminal AB twice each in cycles of 1.0 + or - 0.5 seconds. Confirm that body grounds is absolute. Finally, keep applying body ground to terminal Tc.





HINT: When alternately grounding the terminals Tc and AB, release ground from one terminal and immediately apply it to the other terminal. This action must be done within the time limits shown below. If you are not within the time limits, repeat the procedure until you clear the codes.

(d) Several seconds after doing the clearing procedure, the SRS warning light will blink in a 50 m sec. cycle to indicated the codes have been cleared.
