TC Terminal Circuit

Tc TERMINAL CIRCUIT

CIRCUIT DESCRIPTION
By connecting terminals Tc and E1 of the DLC1 or DLC2 the center airbag sensor assembly is set in the DTC output mode. The DTC's are displayed by the blinking of the SRS warning light.

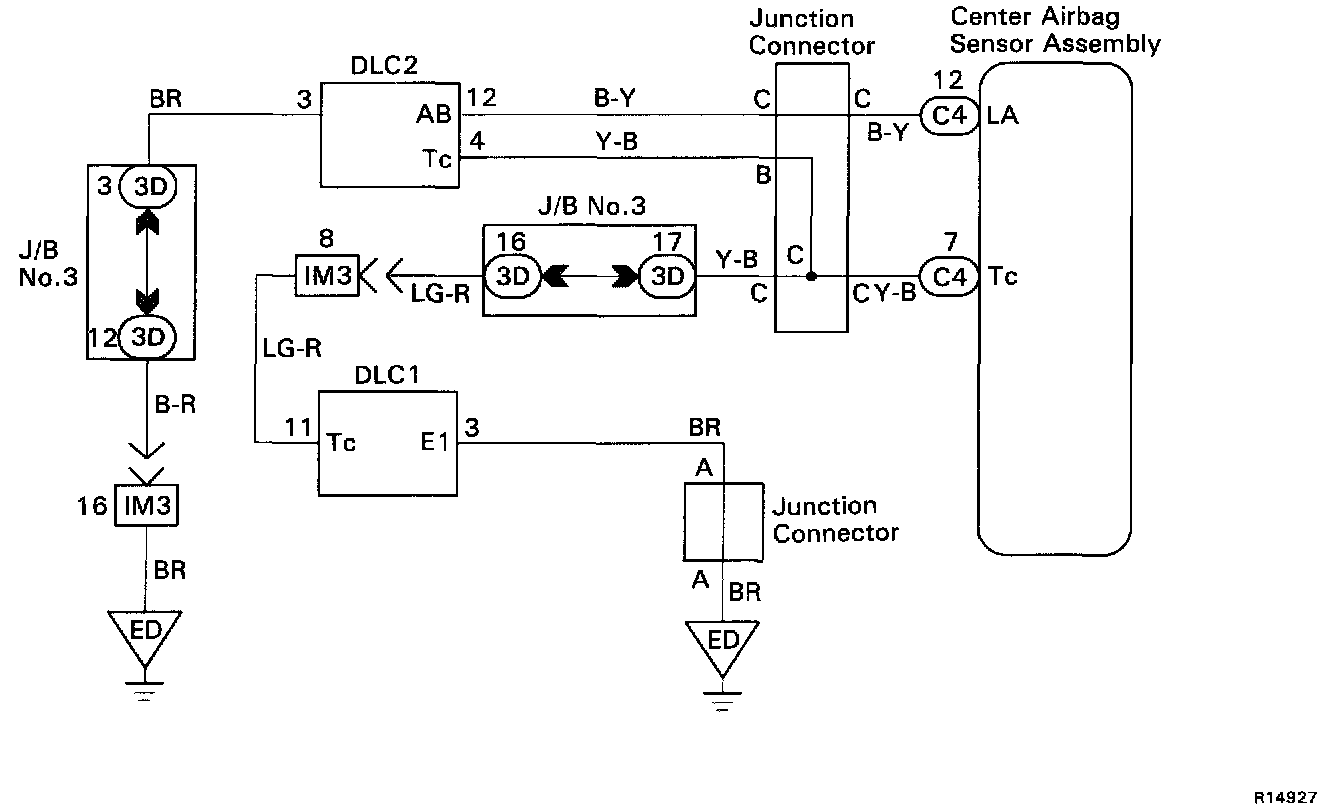

Wiring Diagram:

INSPECTION PROCEDURES (P) Preparation (C) Check

HINT: If the diagnostic trouble code is not displayed, perform the following troubleshooting:

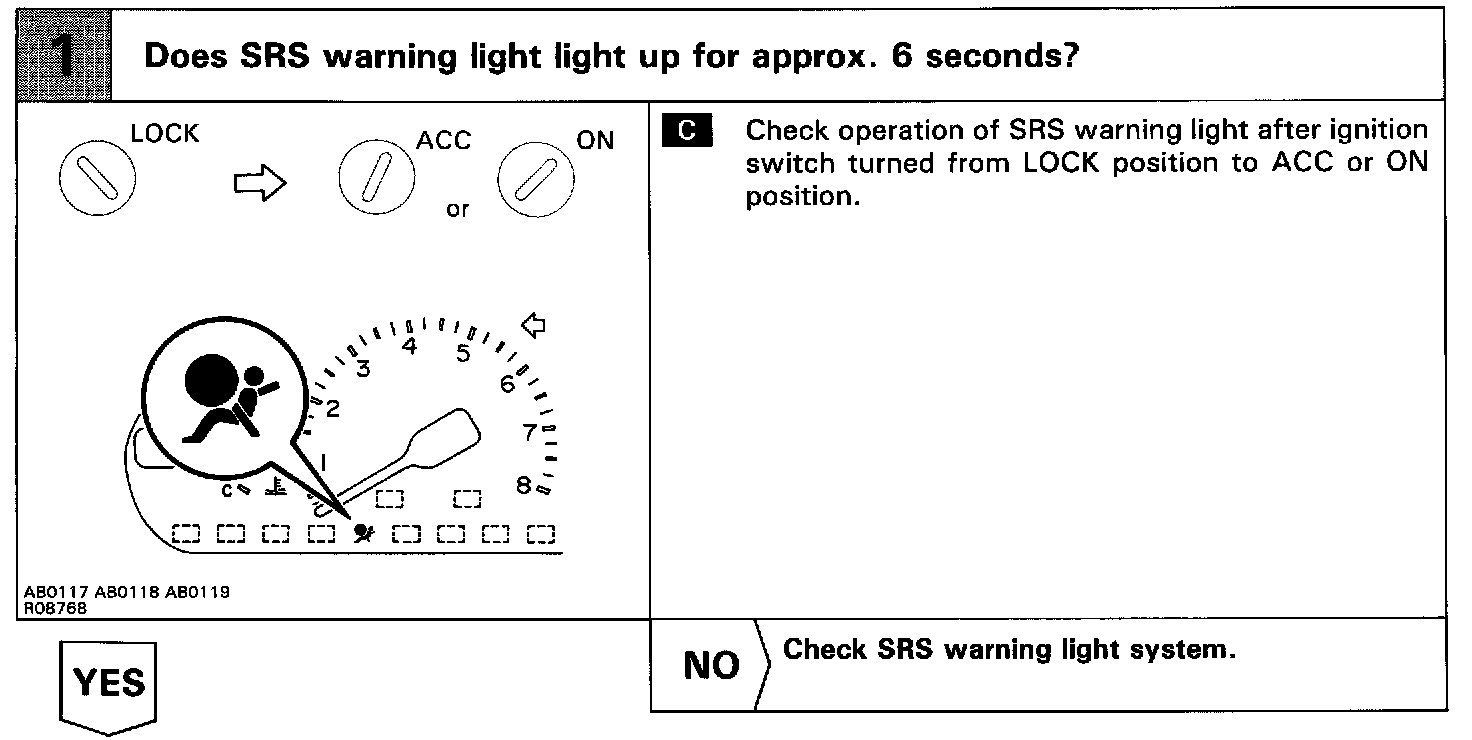

Step 1:

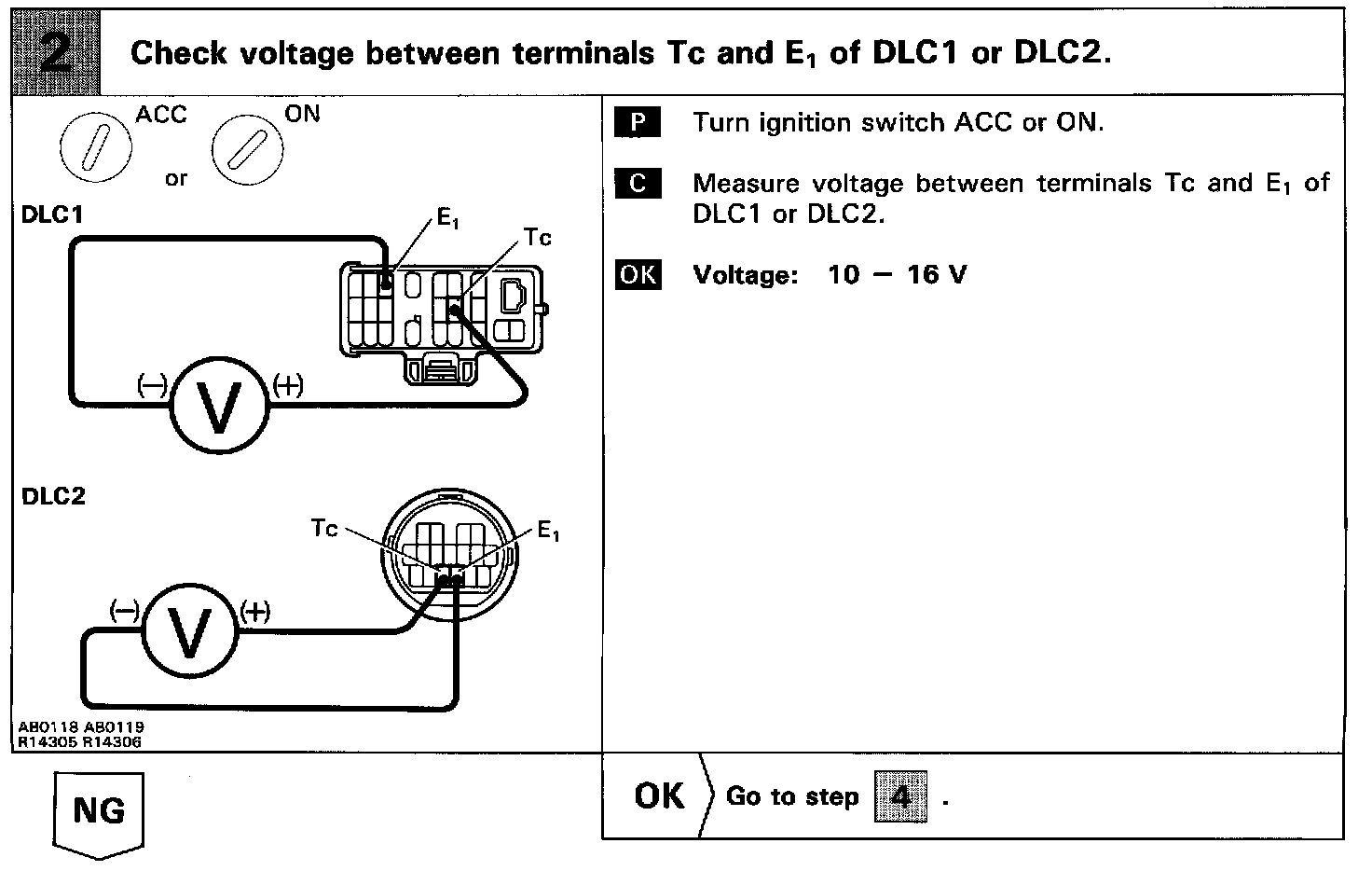

Step 2:

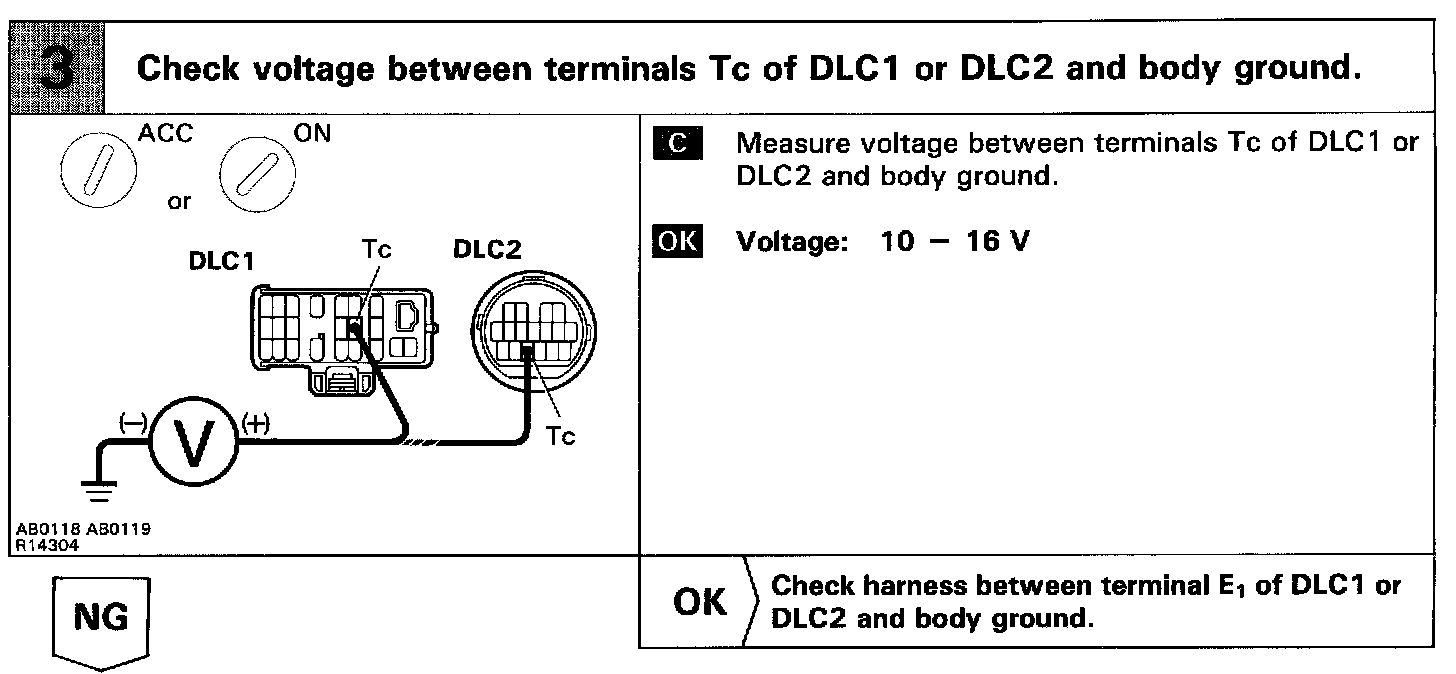

Step 3:

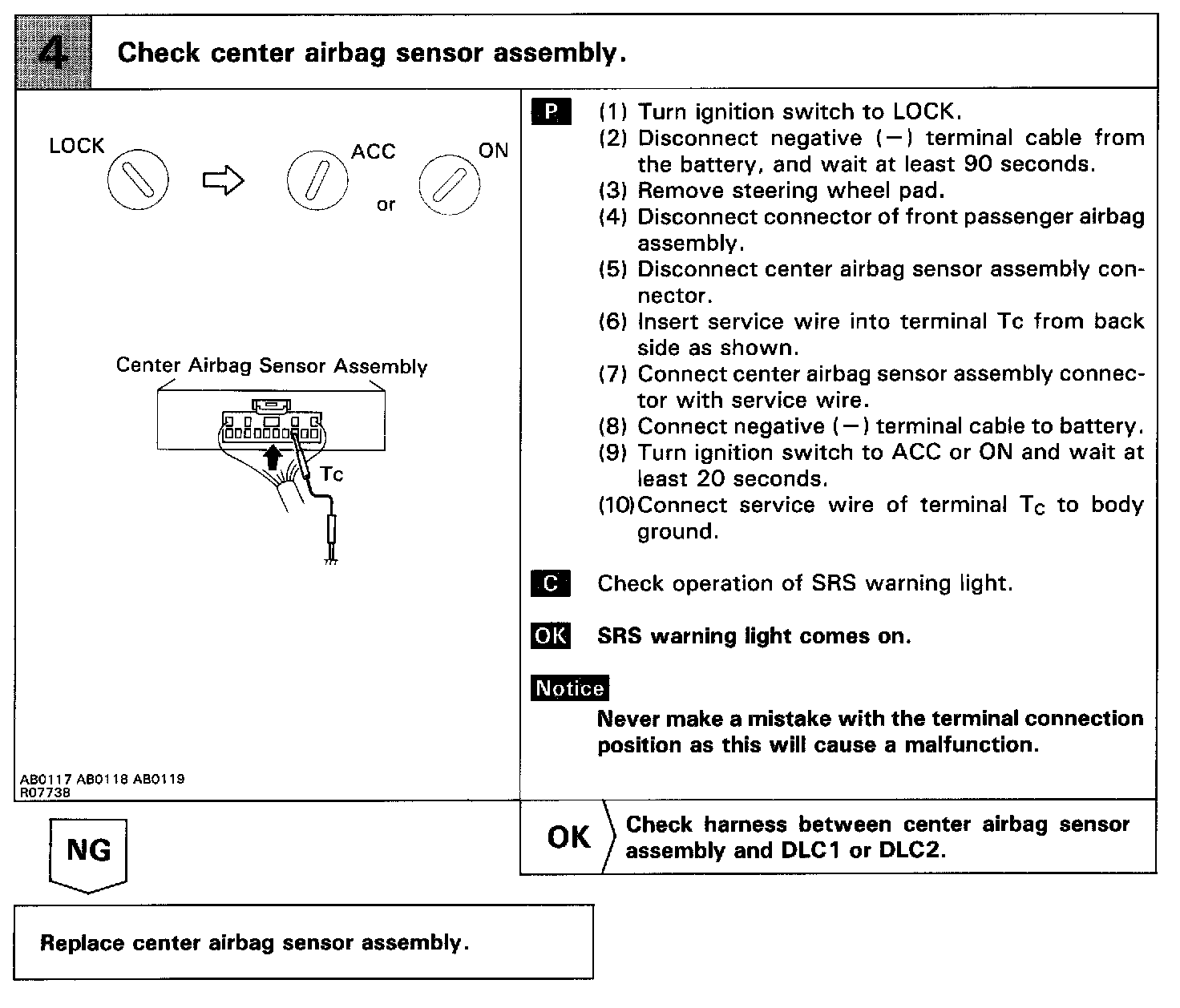

Step 4:

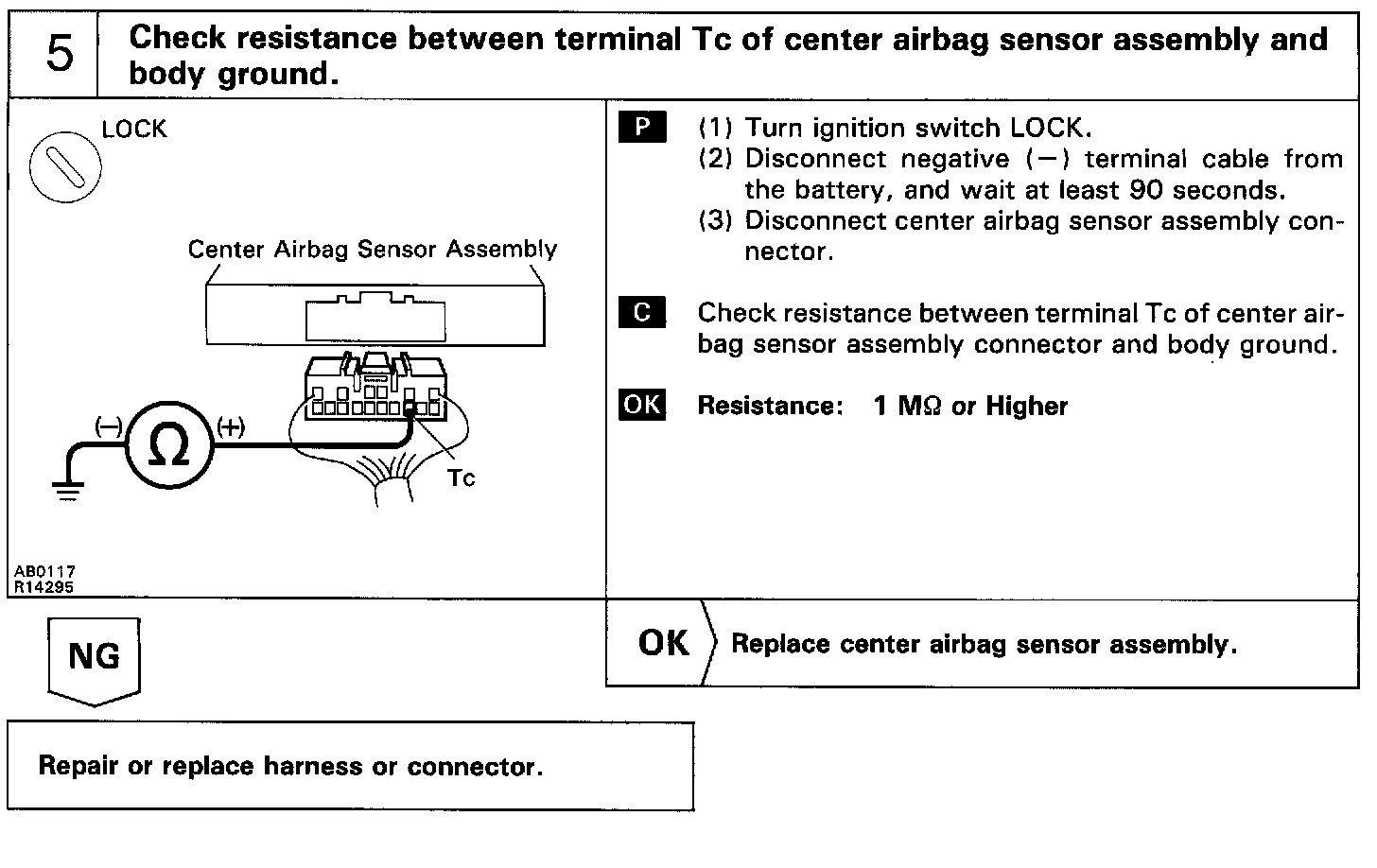

HINT: If the DTC is displayed without a DTC check procedure, perform the following troubleshooting.
