Ignition Coil: Service and Repair

1. DISCONNECT HIGH-TENSION CORDS FROM IGNITION COILS

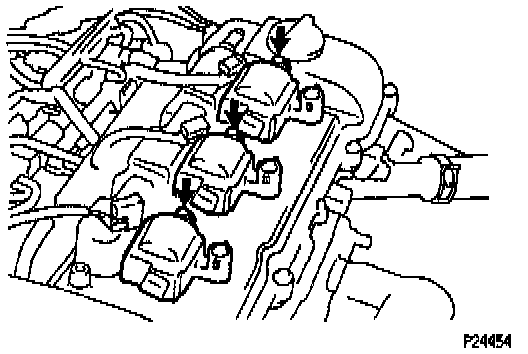

2. REMOVE IGNITION COILS
- Disconnect the 3 connectors.
- Remove the 3 bolts and 3 ignition coils from the LH cylinder head.

1. INSTALL IGNITION COILS
- Install the 3 ignition coils with the 3 bolts.

Torque: 8 N.m (SO kgf.cm, 69 in.lb.)

- Connect the 3 connectors.
2. CONNECT HIGH-TENSION CORDS TO IGNITION COILS
