IACV Control Circuit

CIRCUIT DESCRIPTION

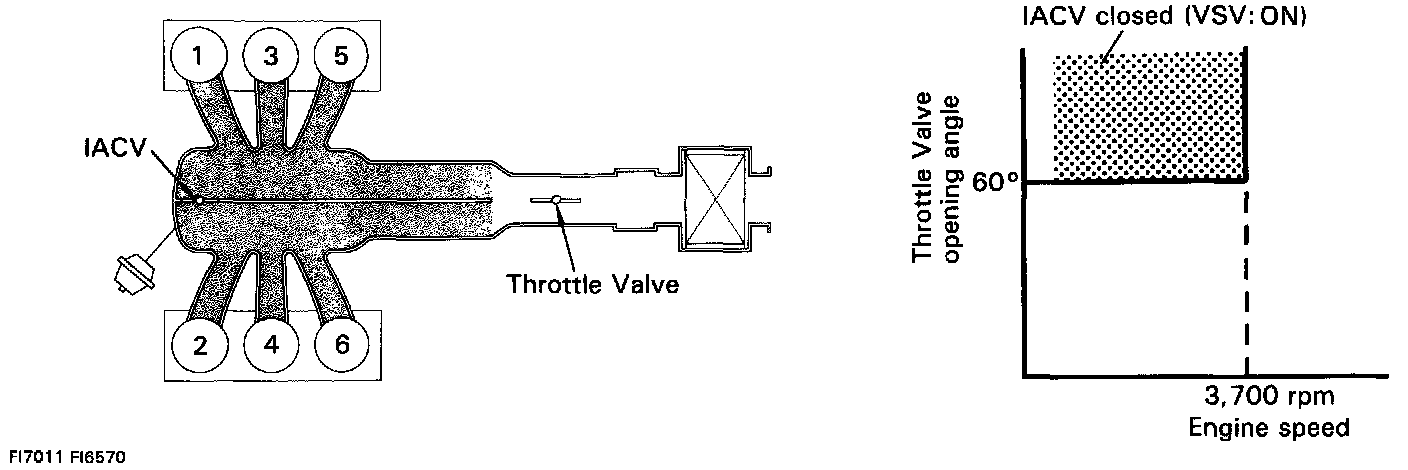

This circuit opens and closes the IACV (Intake Air Control Valve) in response to the engine load in order to increase the intake efficiency (ACIS: Acoustic Control Induction System).
When the engine speed is 3,700 rpm or less and the throttle valve opening angle is 60 or more, the ECM turns the VSV ON and closes the IACV. At all other times, the VSV is OFF, so the IACV is open.

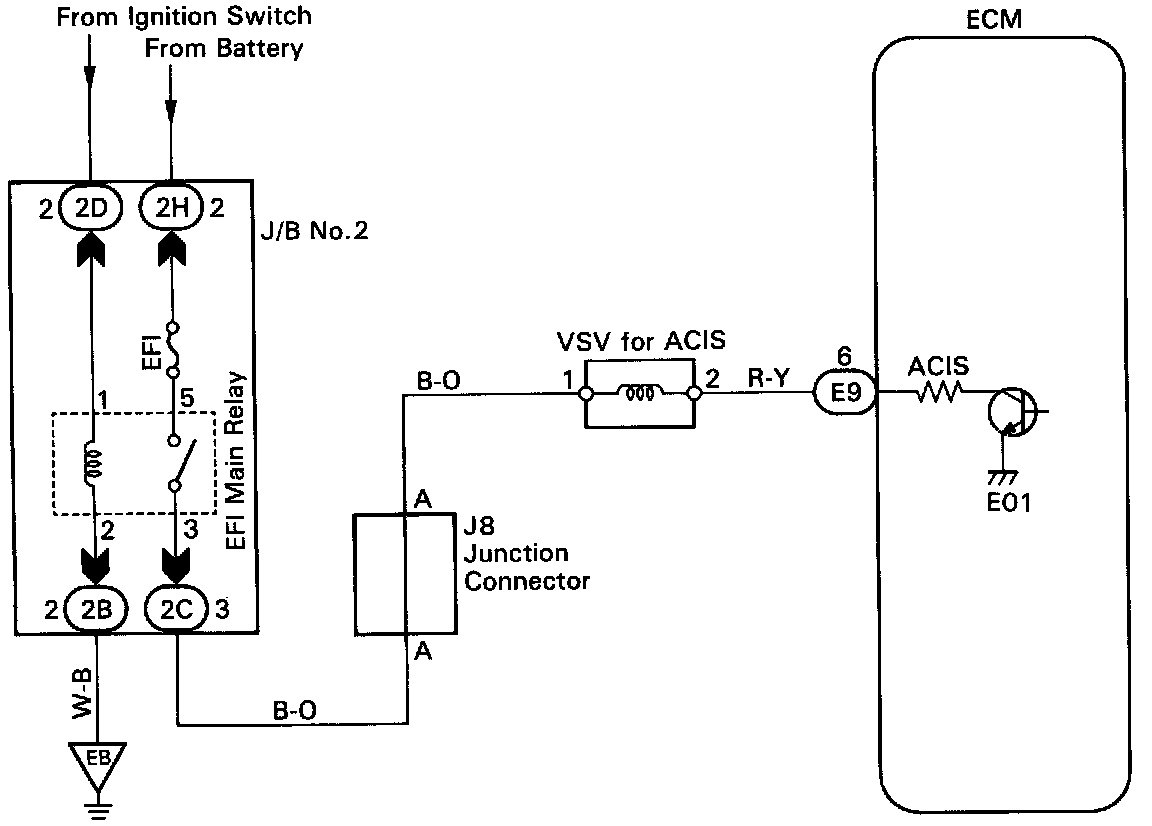

WIRING DIAGRAM

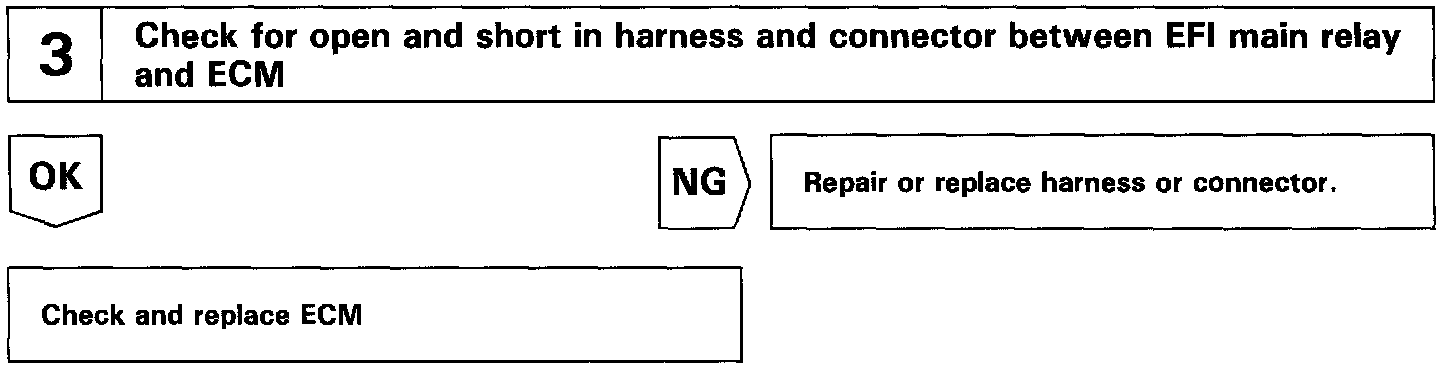

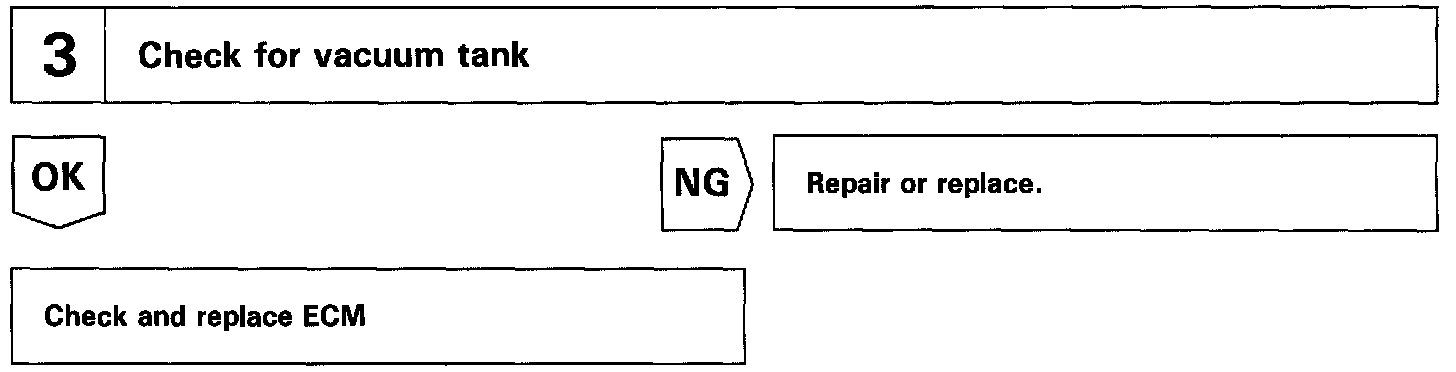

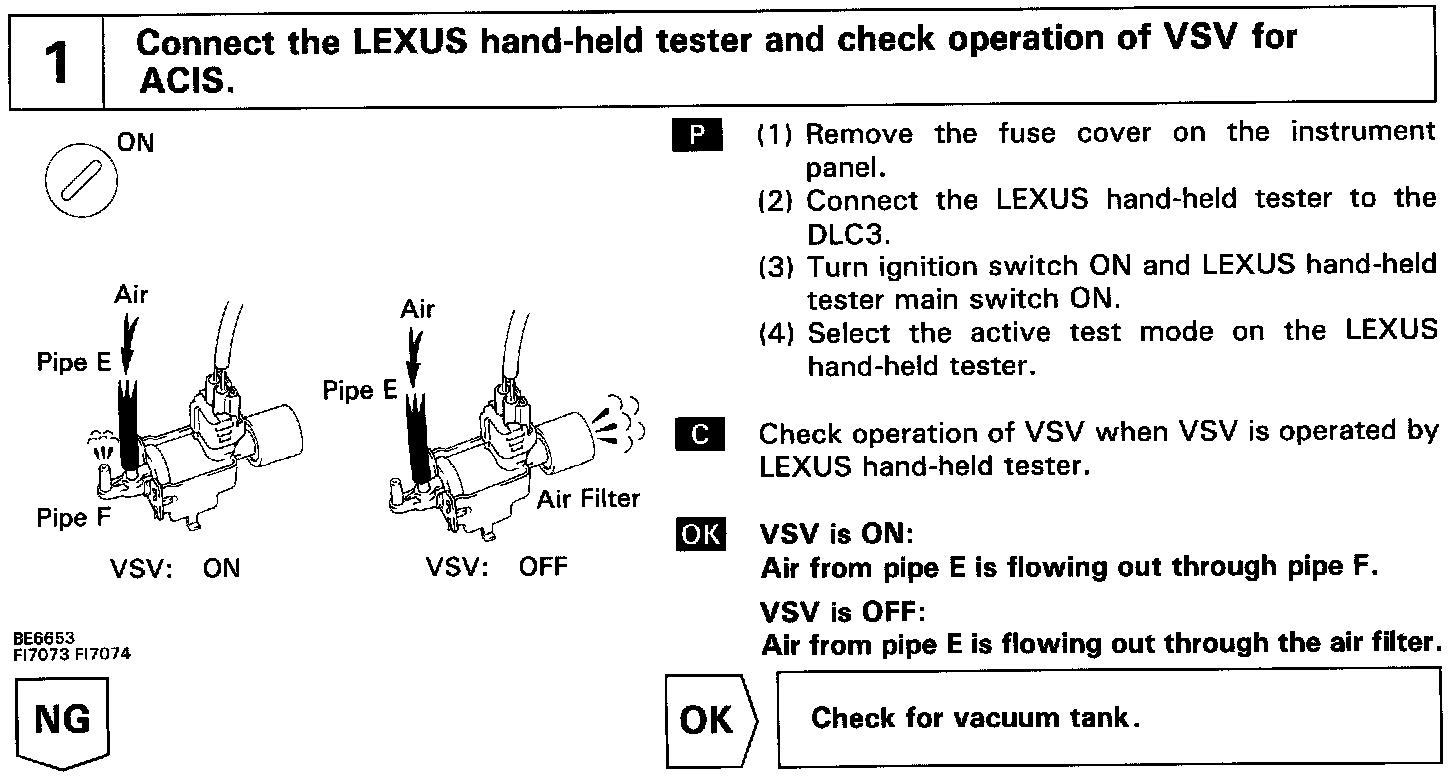

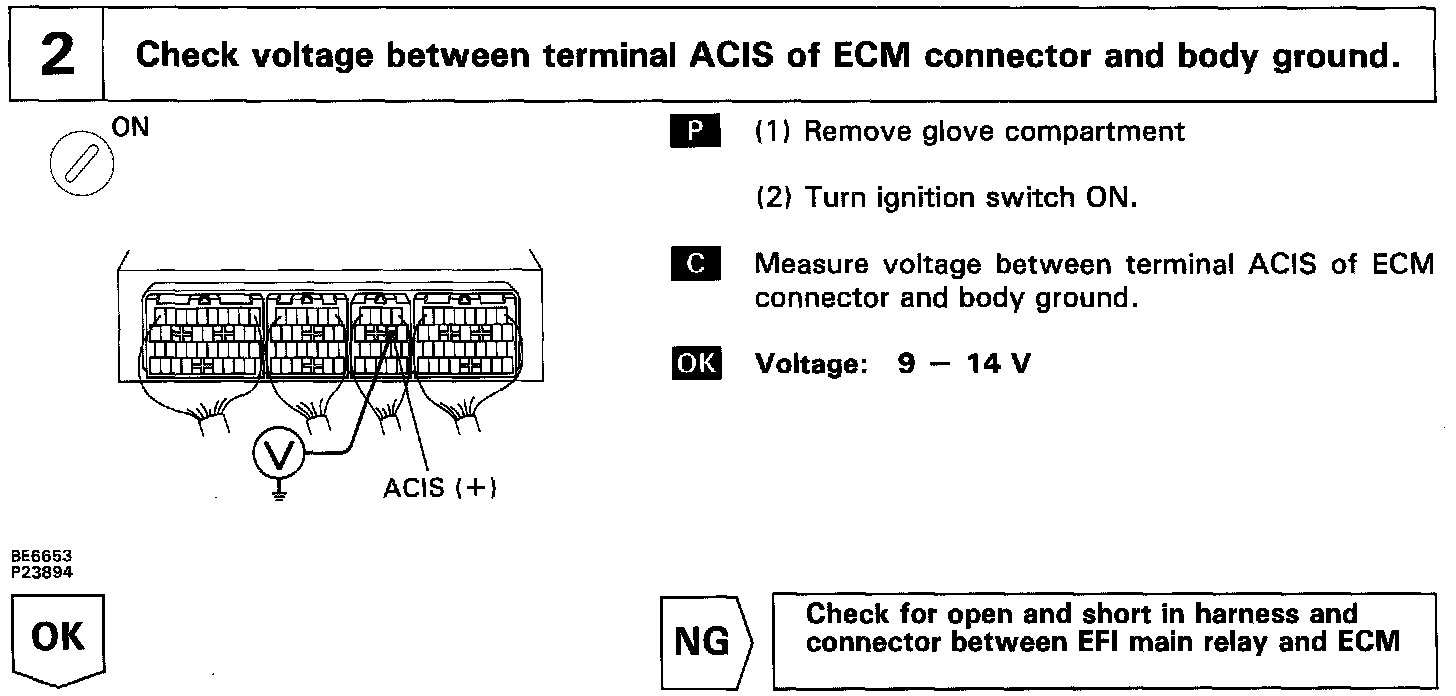

INSPECTION PROCEDURE
LEXUS Hand-held Tester

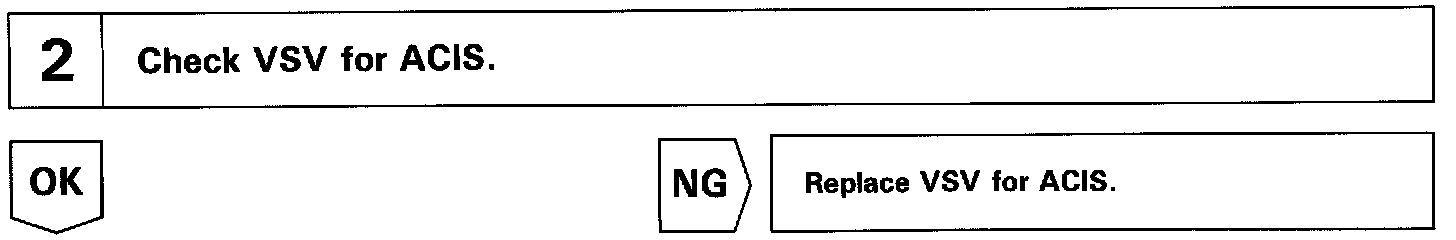

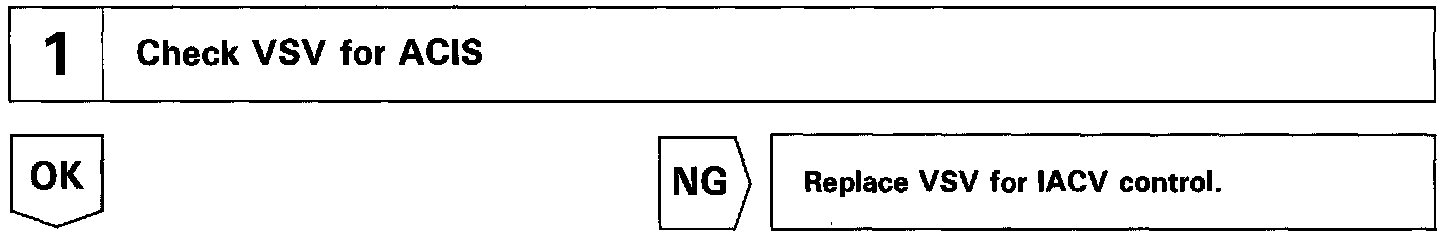

INSPECTION PROCEDURE
OBD II Scan Tool (excluding LEXUS Hand-held Tester)
