Component Inspection

THROTTLE BODY INSPECTION

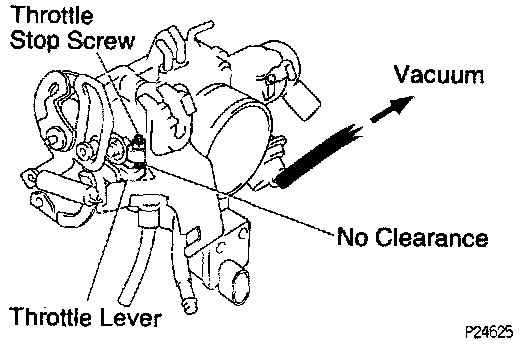

1. INSPECT THROTTLE VALVE
- Apply vacuum to the throttle opener.
- Check that there is no clearance between the throttle stop screw and throttle lever when the throttle valve is fully closed.

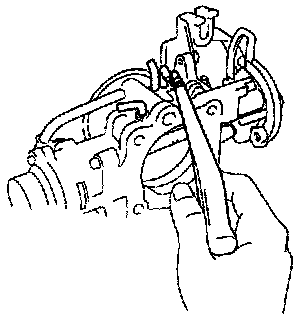

2. CLEAN THROTTLE BODY
- Using a soft brush and carburetor cleaner, clean the cast parts.
- Using compressed air, clean all the passages and apertures.

NOTICE: To prevent deterioration, do not clean the throttle position sensor.
