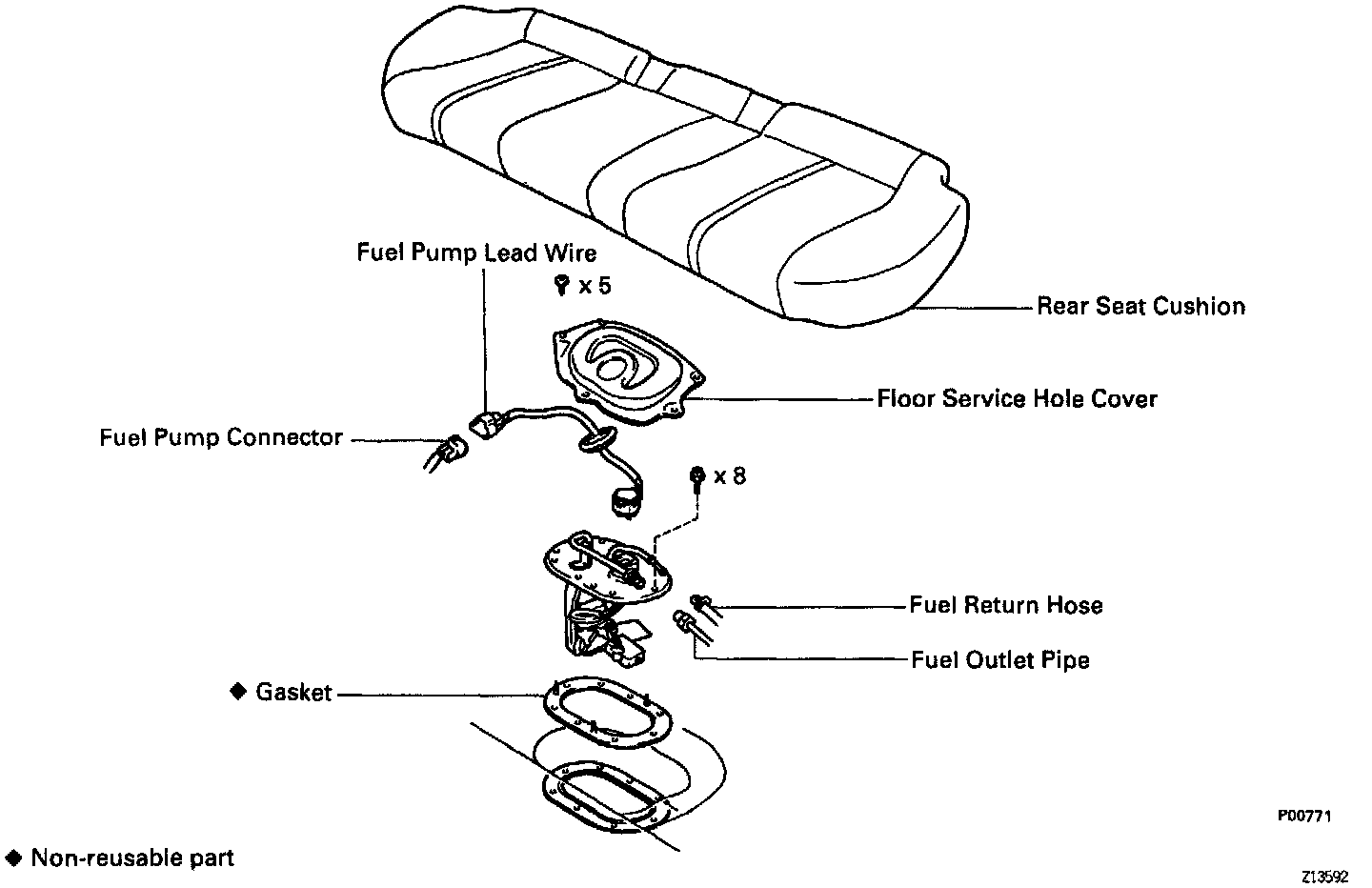

Removal and Installation

CAUTION: Do not smoke or work near an open flame when working on the fuel pump.

1. REMOVE REAR SEAT CUSHION
2. REMOVE FLOOR SERVICE HOLE COVER
- Disconnect the fuel pump connector.
- Remove the 5 screws and service hole cover.

INSTALLATION HINT: Check for fuel leakage.


3. REMOVE FUEL PUMP LEAD WIRE.

NOTICE: Do not lift the fuel pump up with the wire harness picking.





4. DISCONNECT FUEL PIPE AND HOSE FROM FUEL PUMP BRACKET

CAUTION: Remove the fuel filter cap to prevent the fuel from flowing out.

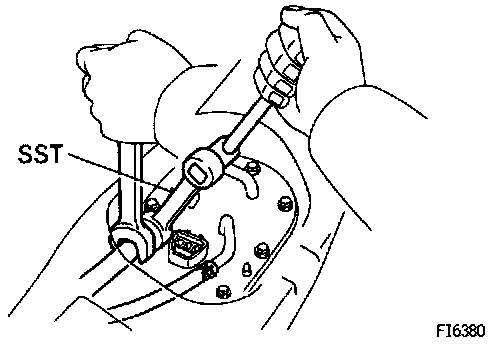

- Using SST, disconnect the outlet pipe from the pump bracket.
SST 09631-22020
- Disconnect the return hose from the pump bracket.

Torque: 28 N.m (285 kgf.cm, 21 ft.lb.) for use with SST





5. REMOVE FUEL PUMP BRACKET ASSEMBLY FROM FUEL TANK
- Remove the 5 bolts.

Torque: 4 N.m (40 kgf.cm, 35 in..lb.)

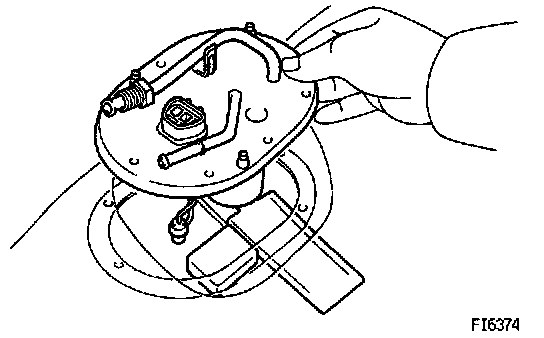

- Pull out the pump bracket assembly.
- Remove the gasket from the pump bracket.

NOTICE:
- Do not damage the fuel pump filter.
- Be careful that the arm of the sender gauge should not bent.

INSTALLATION HINT: Install a new gasket to the pump bracket.

INSTALLATION HINT: Installation is in the reverse order of removal.
