Installation

1. INSTALL FUEL PRESSURE REGULATOR

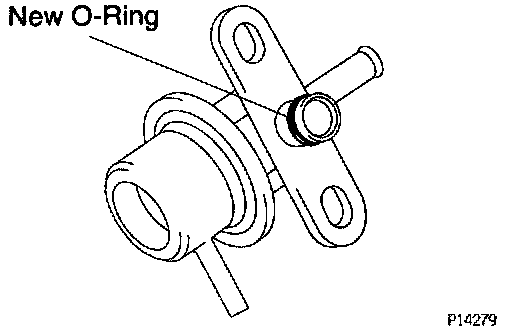

- Apply a light coat of gasoline to a new O-ring, and install it to the pressure regulator.

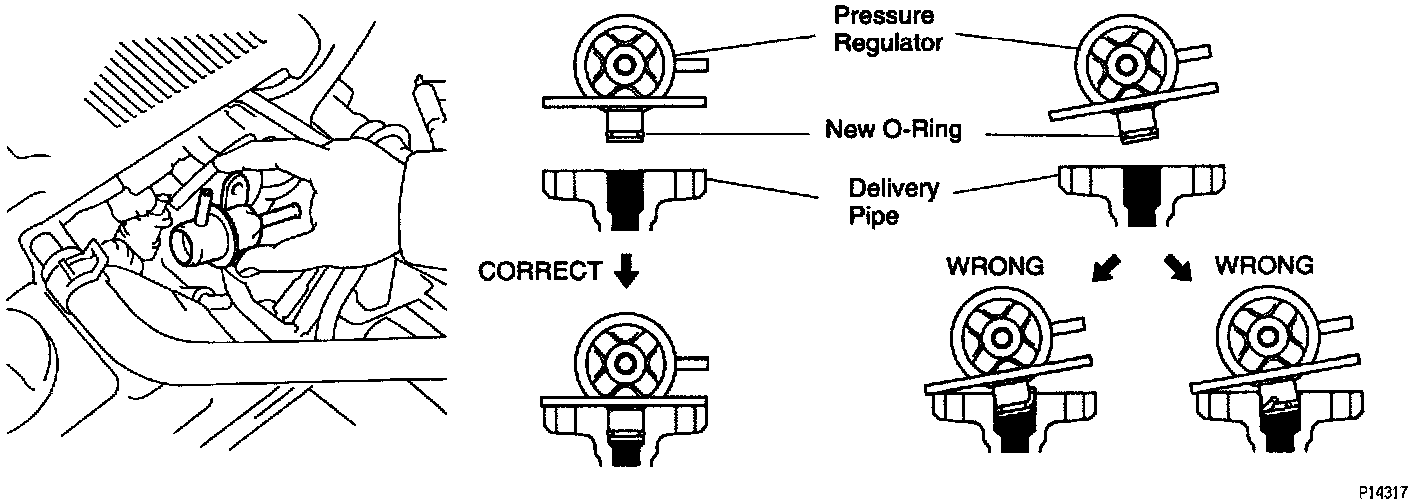

- Attach the pressure regulator to the delivery pipe.
- Check that the pressure regulator rotates smoothly.

NOTICE: It it does not rotate smoothly, the O-ring may be pinched, so remove the pressure regulator and repeat steps (a) to (c) above.

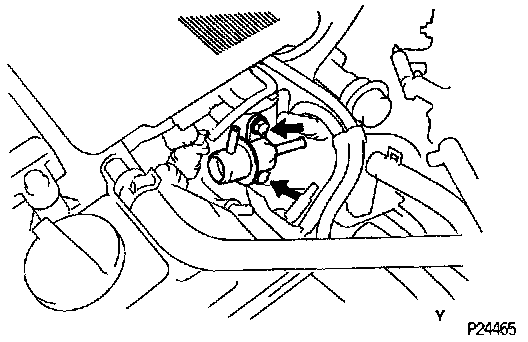

- Install the pressure regulator with the 2 bolts.

Torque: 8 N.m (80 kgf.cm, 69 in.lb.)

2. CONNECT FUEL RETURN HOSE TO FUEL PRESSURE REGULATOR

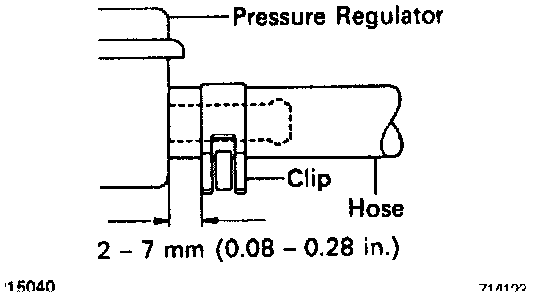

NOTICE: Be sure to insert the hose up to the stopper and clip it.

3. CONNECT VACUUM SENSING HOSE TO FUEL PRESSURE REGULATOR




4. CONNECT AIR ASSIST HOSE TO INTAKE MANIFOLD
5. CHECK FOR FUEL LEAKS

(See fuel system in precaution)
