Resistance/Operation Inspection

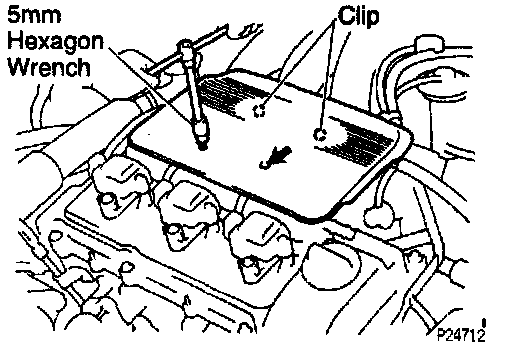

1. REMOVE V-BANK COVER
- Using a 5 mm hexagon wrench, remove the 2 cap nuts.
- Disconnect the 2 clips. and remove the V - bank cover.





2. INSPECT INJECTOR OPERATION

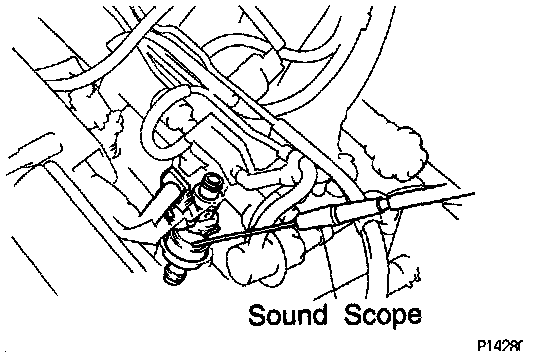

Check operation sound from each injector.
- With the engine running or cranking, use a sound scope to check that there is normal operating noise in proportion to engine speed.
- If you have no sound scope, you can check the injector operating vibration with your finger.
- If no sound or unusual sound is heard, check the wiring connector, infector or injection signal from the ECM.
