Fuel Injector Resistor: Testing and Inspection

1. REMOVE V-BANK COVER
- Using a 5 mm hexagon wrench, remove the 2 cap nuts.
- Disconnect the 2 clips. and remove the V - bank cover.





2. INSPECT INJECTOR RESISTANCE
- Disconnect the injector connector.

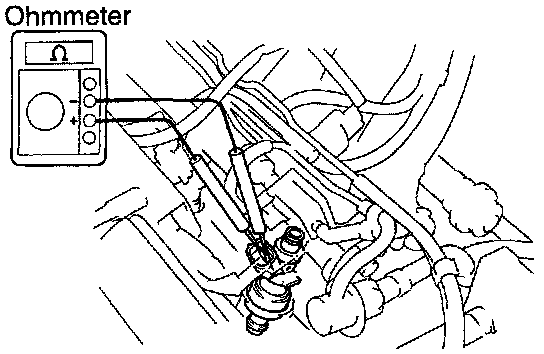

- Using an ohmmeter, measure the resistance between the terminals.

Resistance: At 20°C (68°F): Approx. 13.8 ohms.

- If the resistance is not as specified, replace the injector.
- Reconnect the injector connector.
3. REINSTALL V-BANK COVER
