Vacuum Amplifier: Testing and Inspection

1. DISCONNECT VACUUM HOSES FROM EGR VACUUM MODULATOR
2. INSPECT EGR VACUUM MODULATOR OPERATION

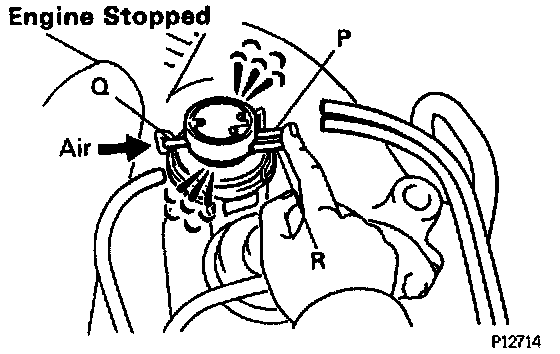

- Block ports P and R with your finger.
- Blow air into port Q, and check that the air passes through to the air filter side freely.

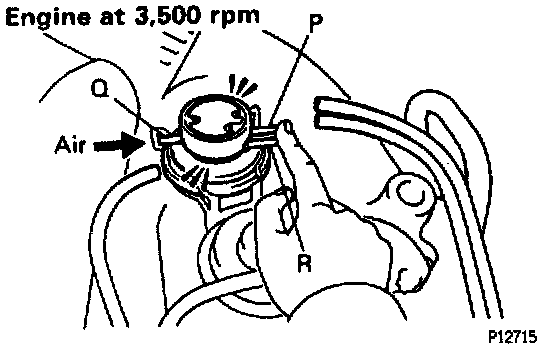

- Start the engine, and maintain speed at 3,500 rpm.
- Repeat the above test. Check that there is a strong resistance to air flow.
3. RECONNECT VACUUM HOSES TO EGR VACUUM MODULATOR
