ECM Power Source Circuit

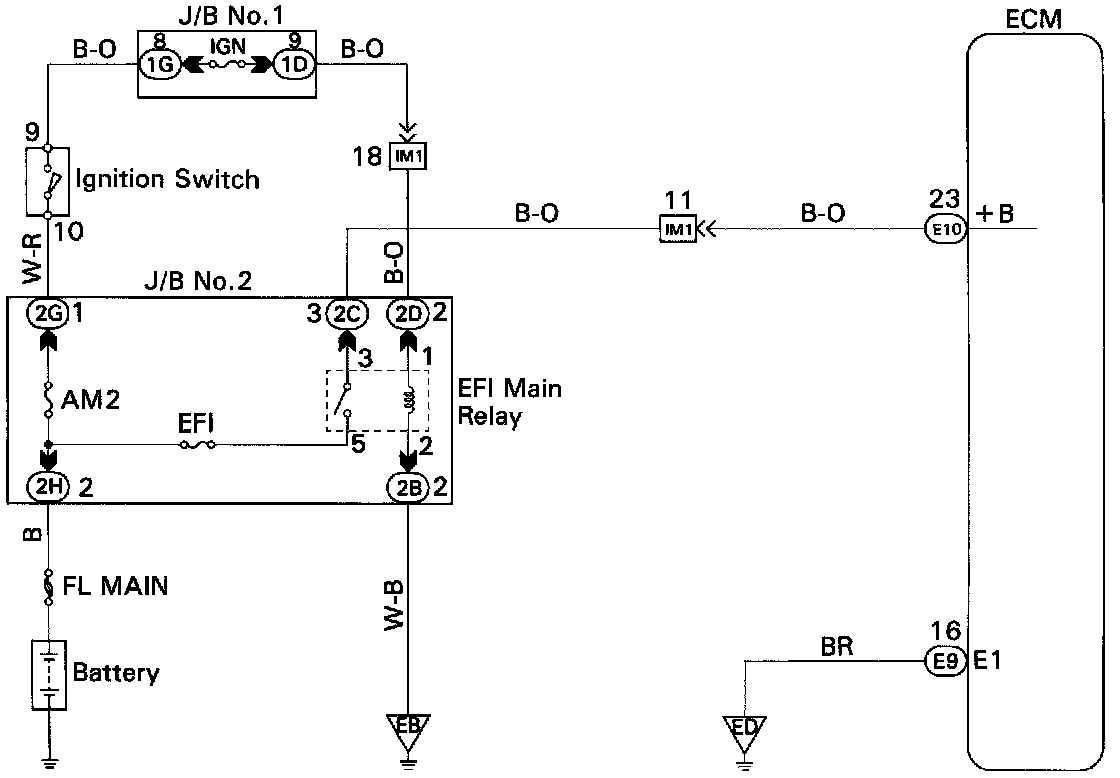

WIRING DIAGRAM

CIRCUIT DESCRIPTION
When the ignition switch is turned ON, battery positive voltage is applied to the coil, closing the contacts of the EFI main relay and supplying power to the terminal +B of the ECM.

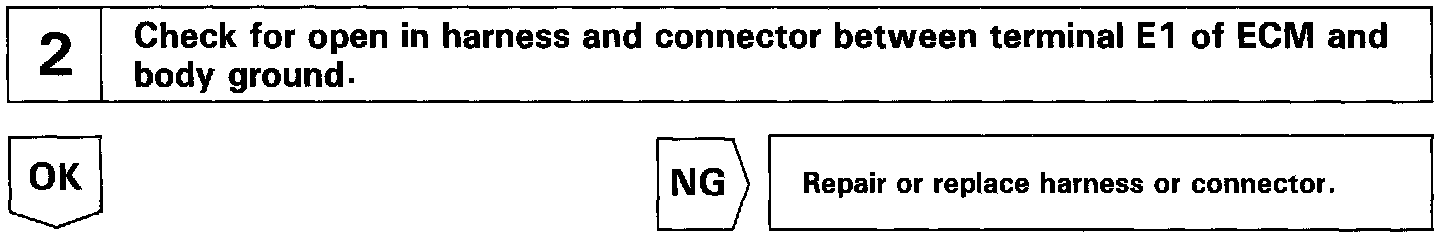

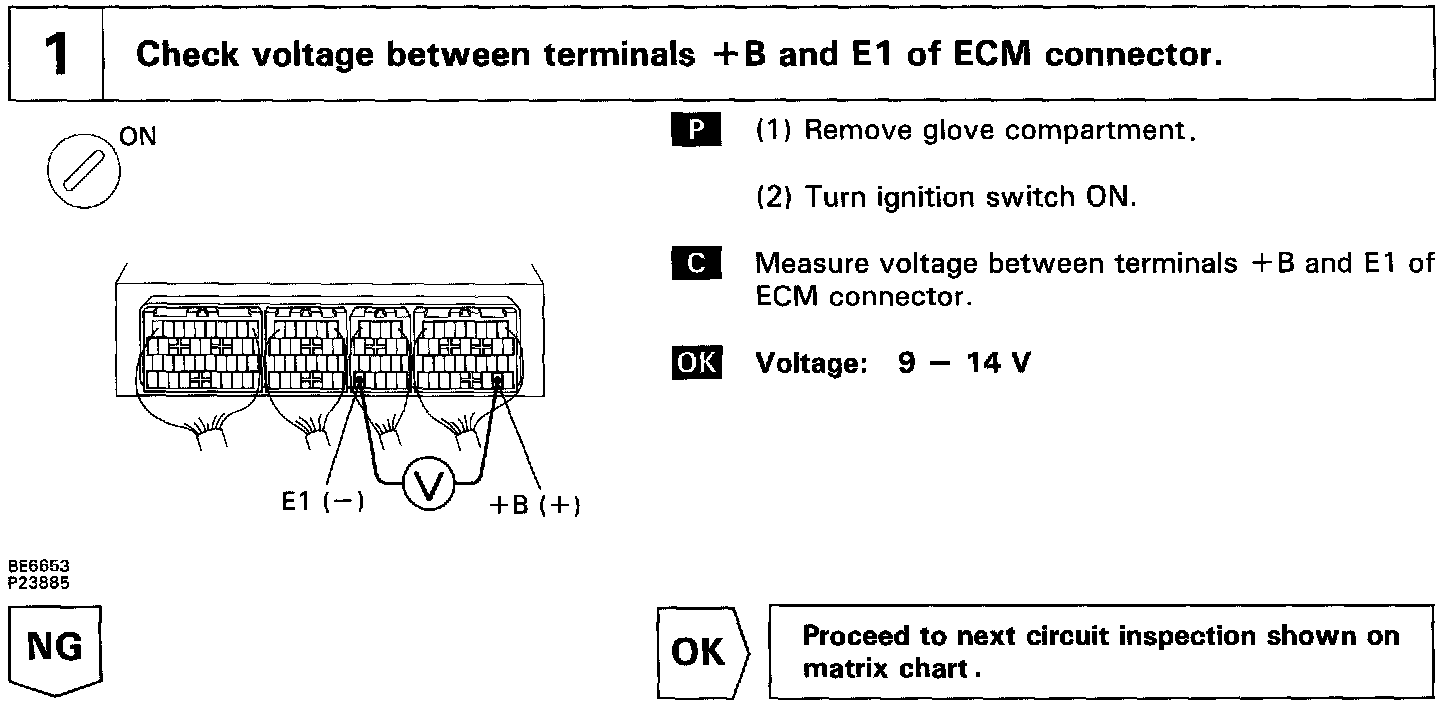

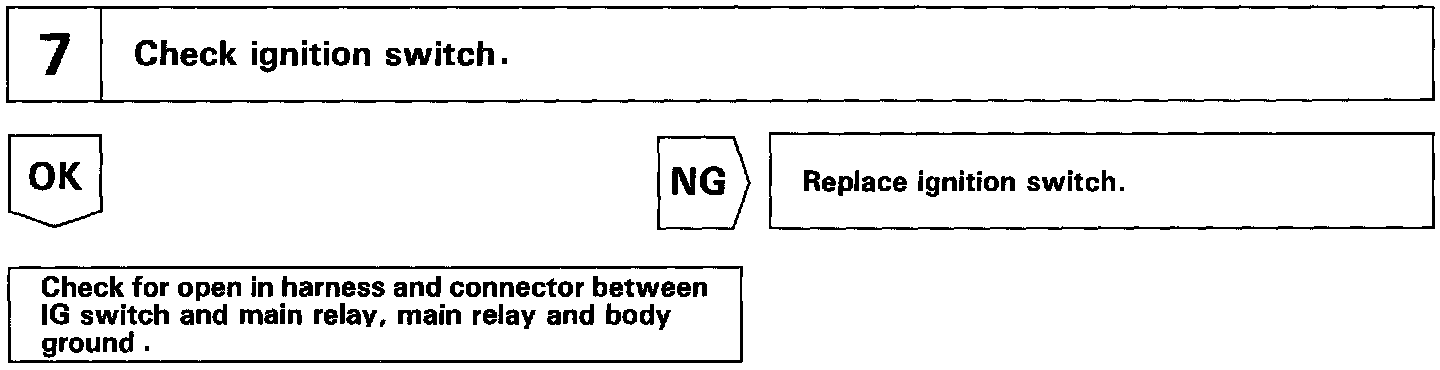

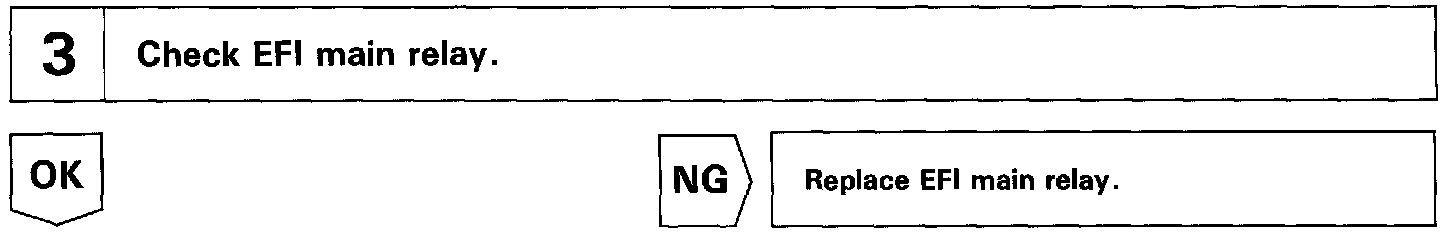

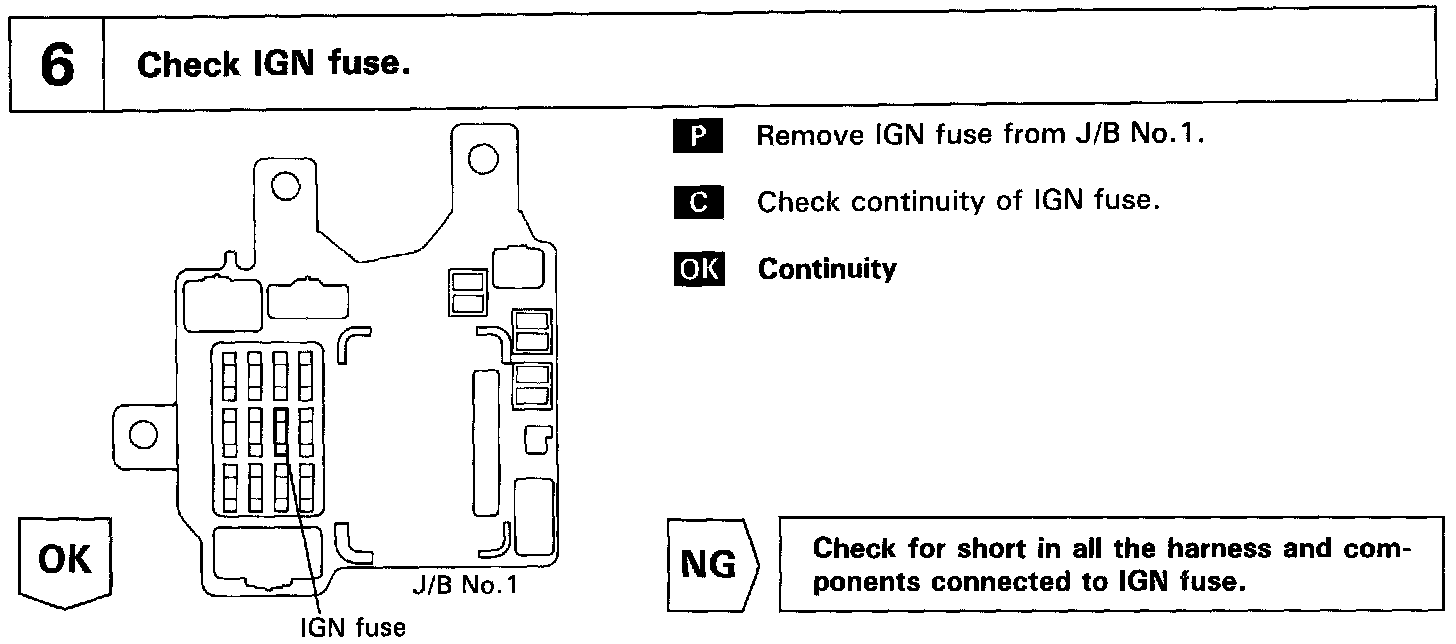

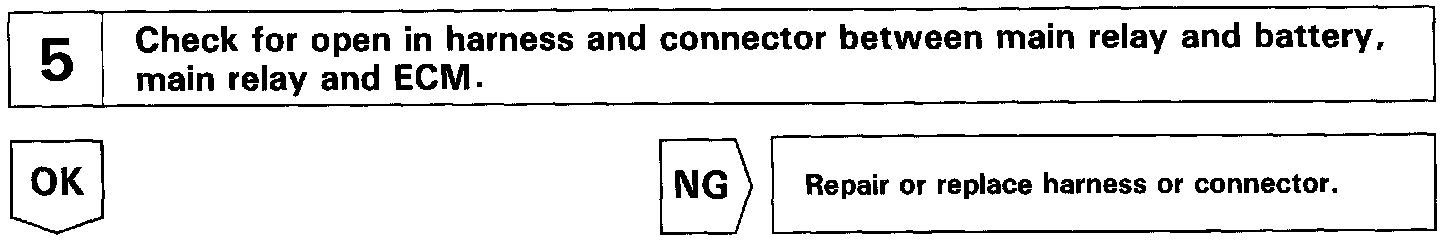

INSPECTION PROCEDURE
