Throttle Position Sensor: Testing and Inspection
1.
Apply vacuum to the throttle opener.
2.

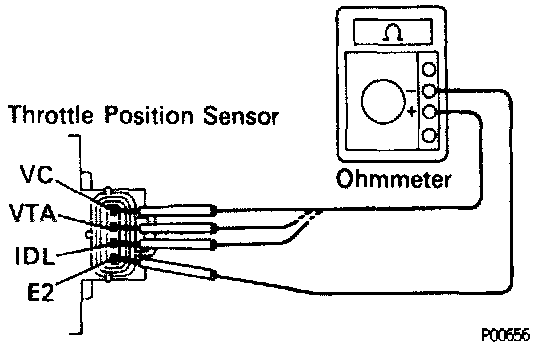

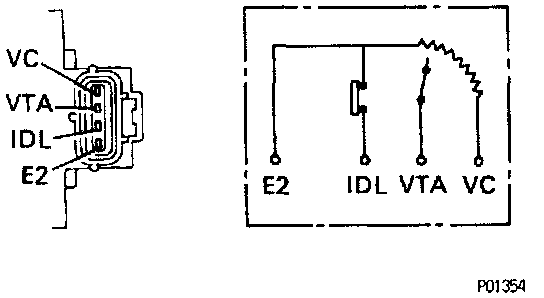

Disconnect the sensor connector.
3.

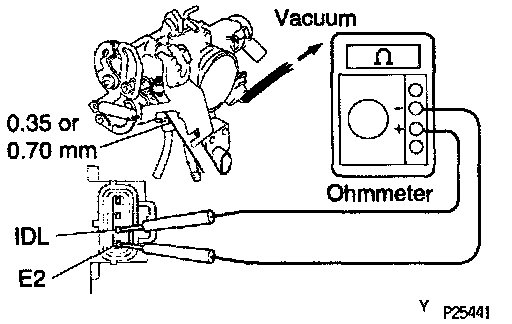

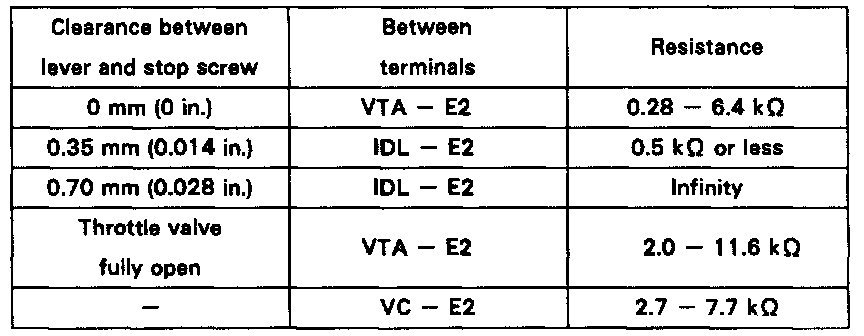

Insert a feeler gauge between the throttle stop screw and stop lever.
