Data Link Connector: Description and Operation

Data Link Connector 2

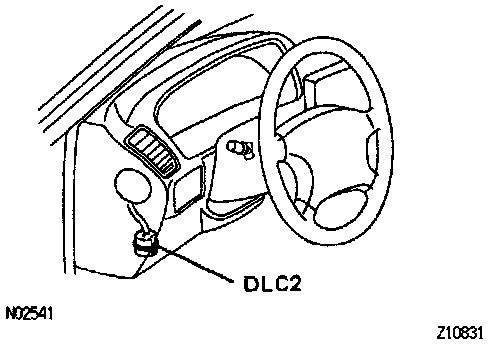

The DLC2 is provided inside the cabin (located under the left side instrument panel) as a connector exclusively for diagnosis of data from the engine, automatic transmission, ABS. A/C, Airbag and Cruise Control System to improve serviceability.


Data Link Connector 3








The vehicle's ECM uses V.P.W. (Variable Pulse Width) for communication to comply with SAE J1850. The terminal arrangement of DLC3 complies with SAE J1962 and matches the V.P.W. format.
