Spark Plug: Testing and Inspection

NOTICE:
- Never use a wire brush for cleaning.
- Never attempt to adjust the electrode gap on a used spark plug.
- Spark plugs should be replaced every 100,000 km (60,000 miles).





1. REMOVE IGNITION COILS


2. INSPECT ELECTRODE

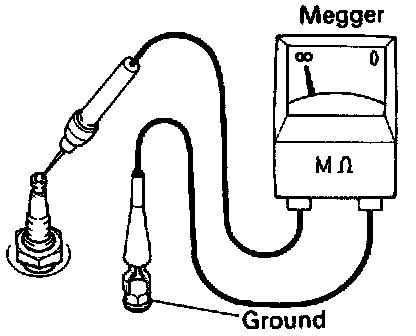

- Using a megger (insulation resistance meter), measure the insulation resistance.

Standard correct Insulation resistance: 10 M ohms or more
- If the resistance is less than specified, proceed to step 4.

HINT: If a megger is not available, the following simple method of inspection provides fairly accurate results.





Simple Method:
- Quickly race the engine to 4,000 rpm 5 times.
- Remove the spark plug. (See step 3)
- Visually check the spark plug.
- If the electrode is dry...OK
- If the electrode is wet...Proceed to step 4
- Reinstall the spark plug. (See step 7)
3. REMOVE SPARK PLUGS

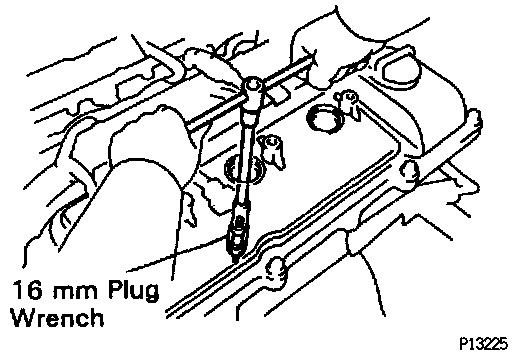

- Using a 16 mm plug wrench, remove the 6 spark plugs from the RH and LH cylinder heads.






4. VISUALLY INSPECT SPARK PLUGS
- Check the spark plug for thread damage and insulator damage.
- If abnormal, replace the spark plug.

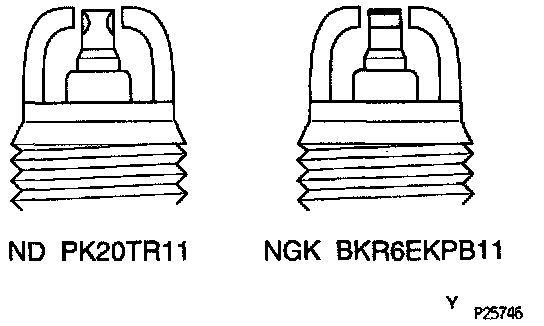

Recommended spark plug:
ND: PK20TR11
NGK: BKR6KPB11





5. INSPECT ELECTRODE GAPS

Maximum electrode gap for used spark plug:
1.3 mm (0.051 in.)

If the gap is greater than maximum, replace the spark plug.

Correct electrode gap for new spark plug:
1.1 mm (0.043 in.)

NOTICE:

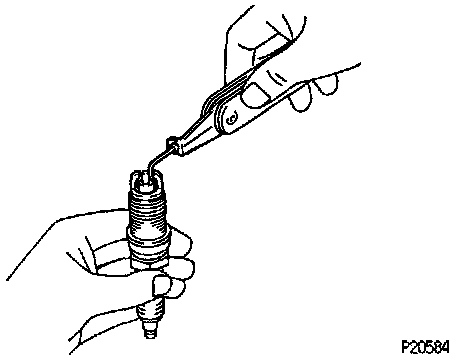

- If adjusting the gap of a new spark plug, bend only the base of the ground electrode. Do not touch the tip.
- Never attempt to adjust the gap on the used plug.






6. CLEAN SPARK PLUGS

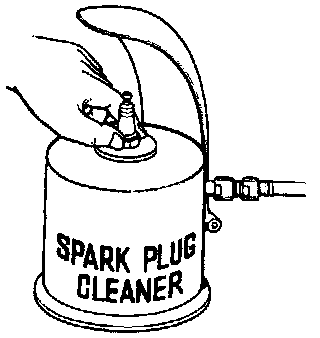

- If the electrode has traces of wet carbon, allow it to dry and then clean with a spark plug cleaner.

Air pressure:
Below 588 kPa (6 kgf/sq. cm, 85 psi)

Duration: 20 seconds or less

HINT: If there are traces of oil, remove it with gasoline before using the spark plug cleaner.

7. REINSTALL SPARK PLUGS
- Using a 16 mm plug wrench, install the 6 spark plugs to the RH and LH cylinder heads.

Torque: 18 N.m (180 kgf.cm, 13 ft.lb.)

8. REINSTALL IGNITION COILS
