Brake Lamp: Service and Repair

REAR COMBINATION LIGHT
1. REMOVE TRIM REAR COVER
(a) Remove the 2 caps.
(b) Using a clip remover, remove the 3 clips.
(c) Remove luggage light cover.
(d) Remove the cover.

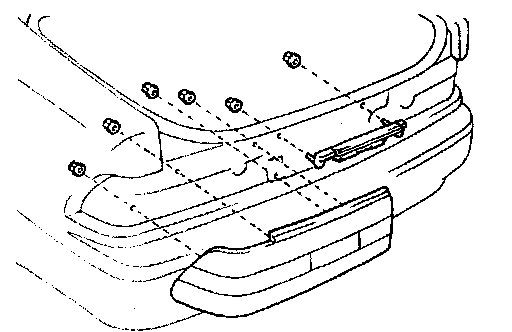

2. REMOVE REAR COMBINATION LIGHT
(a) Remove the 4 nuts and disconnect the connector.
(b) Remove the light.
INSTALLATION
Installation is in the reverse order of removal.
