Window Washer Level Warning Inspection

WINDOW WASHER LEVEL WARNING INSPECTION

1. INSPECT WINDOW WASHER LEVEL WARNING SWITCH

(a) Check that there is no continuity between terminals with the switch OFF (float up).

(b) Check that there is continuity between terminals with the switch ON (float down). If operation is not as specified, replace the switch.






2. INSPECT WINDOW WASHER LEVEL WARNING SWITCH CIRCUIT

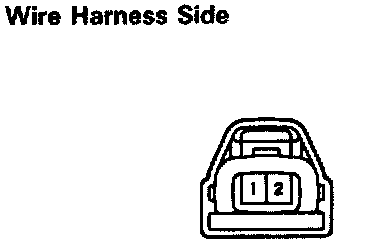

Disconnect the switch connector and inspect the connector on wire harness side, as shown.






If continuity is not as specified, inspect the wire harness or ground point.
