Rheostat Light Control Inspection

RHEOSTAT LIGHT CONTROL INSPECTION
INSPECT RHEOSTAT LIGHT CONTROL CIRCUIT

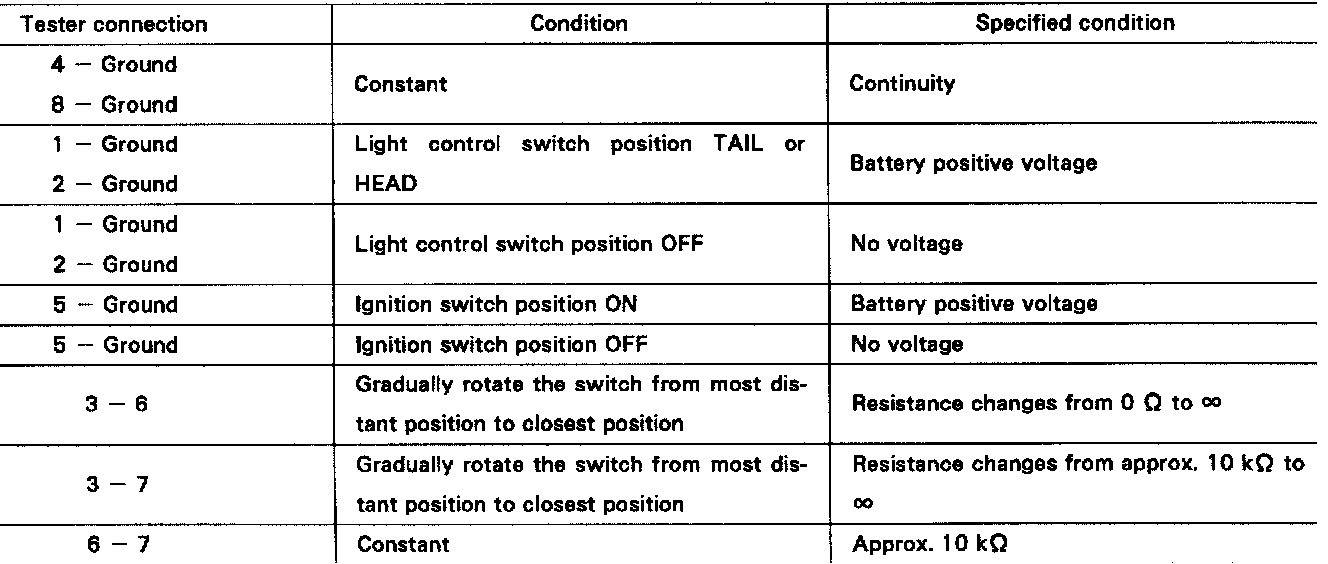

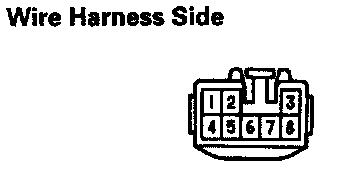

Disconnect the connector to rheostat light control and inspect connector on wire harness side, as shown.






If the circuit is as specified. replace the rheostat light control. If the circuit is not as specified. inspect the circuits connected to other parts.
