Home >> Lexus >> 1996 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Troubleshooting >> Odometer and Twin Trip Switch

Odometer and Twin Trip Switch

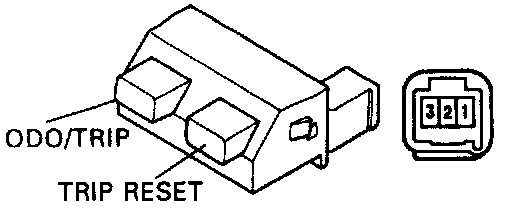

ODOMETER & TWIN TRIP SWITCH INSPECTION

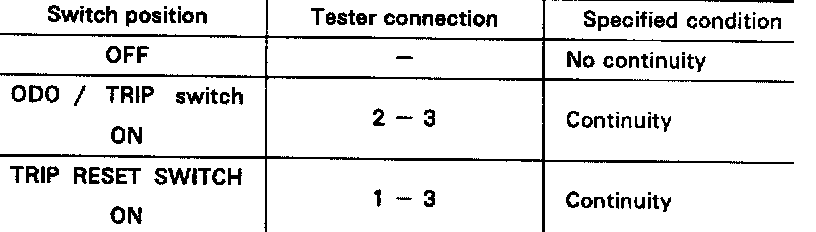

INSPECT ODOMETER & TWIN TRIP SWITCH CONTINUITY

If continuity is not as specified, rep!ace the switch.
