Combination Meter Assembly

COMBINATION METER ASSEMBLY INSPECTION
1. INSPECT COMBINATION METER WIRING CIRCUIT

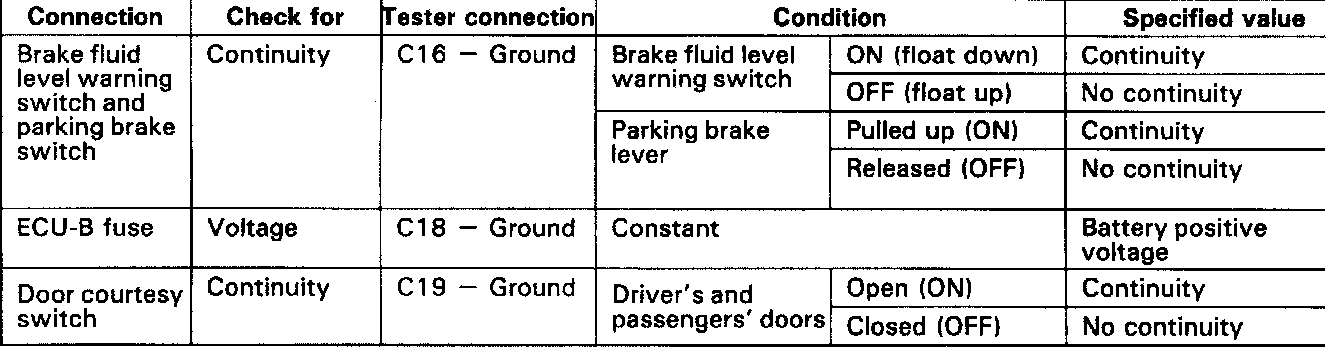

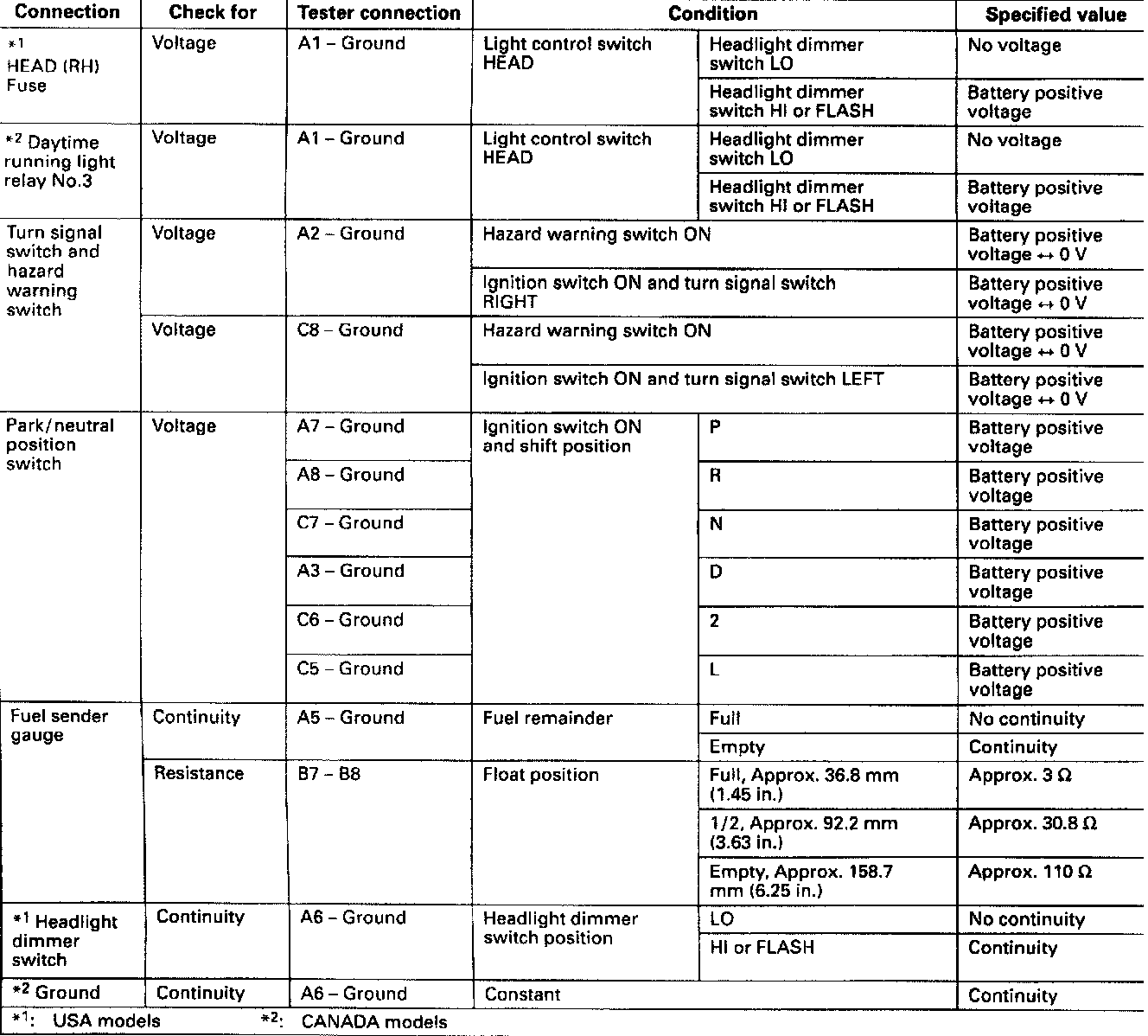

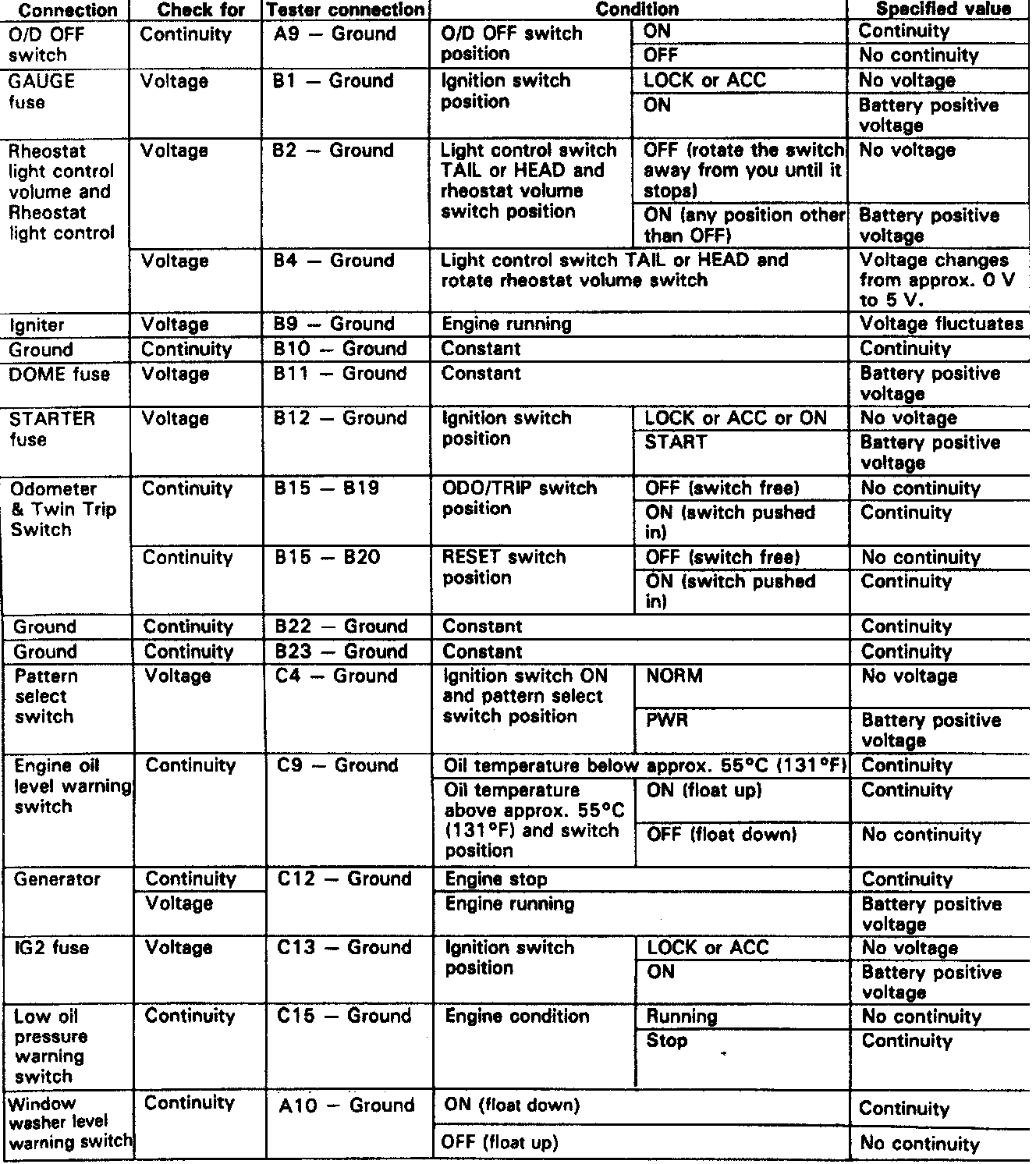

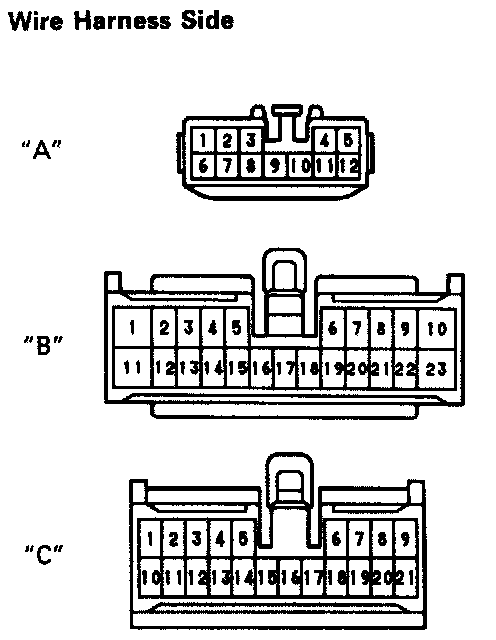

Disconnect connector"A" connector "B" and connector "C" from the combination meter and inspect the connectors on the wire harness side as follows.
















If the circuit is not as specified, refer to wiring diagram and inspect the circuit connected to other parts. Electrical Diagrams
