Home >> Lexus >> 1996 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Flow Charts >> The Character Plate Is Not Illuminated At One Or Two Locations

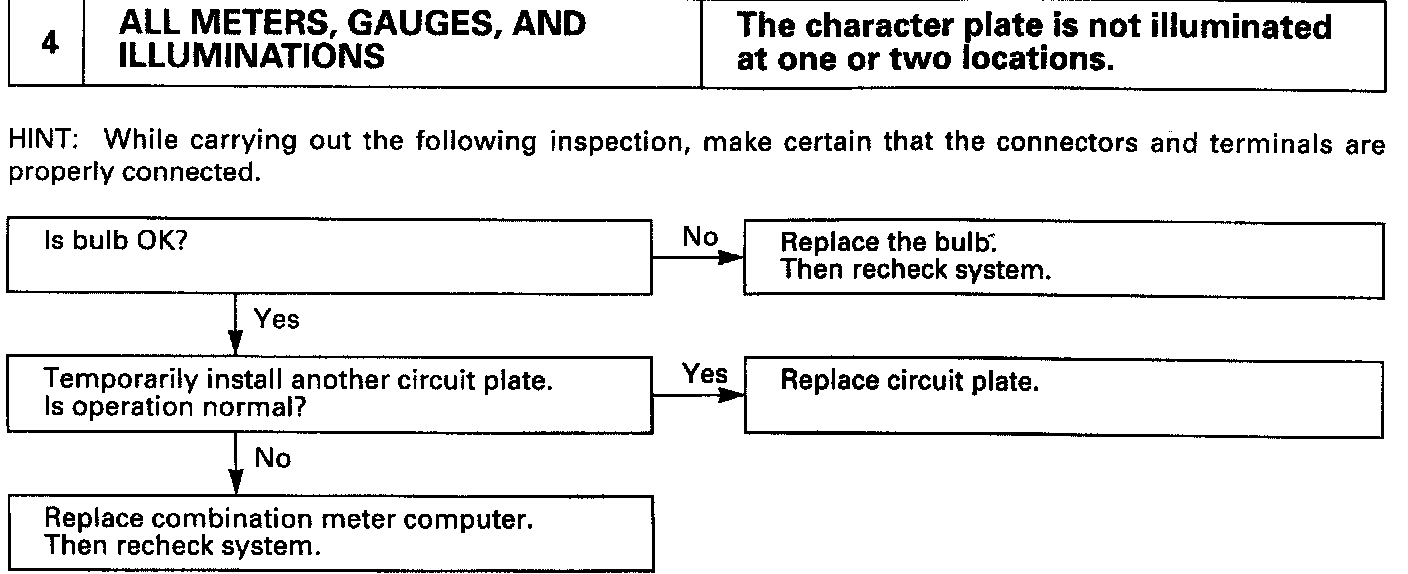

The Character Plate Is Not Illuminated At One Or Two Locations
