Instrument Cluster Removal and Installation

1. Disconnect battery ground cable, then fully lower steering wheel.

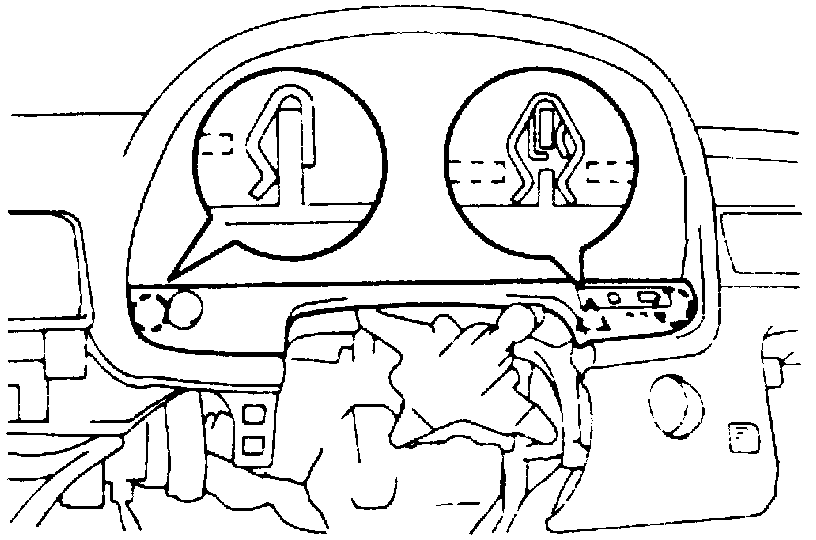

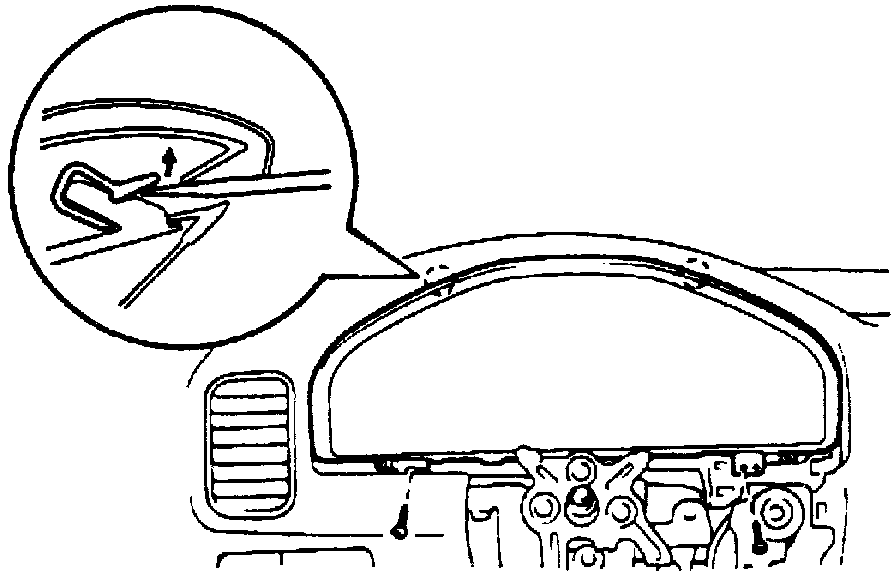

2. Remove finish panel screws and connectors, Figs. 17 through 20.

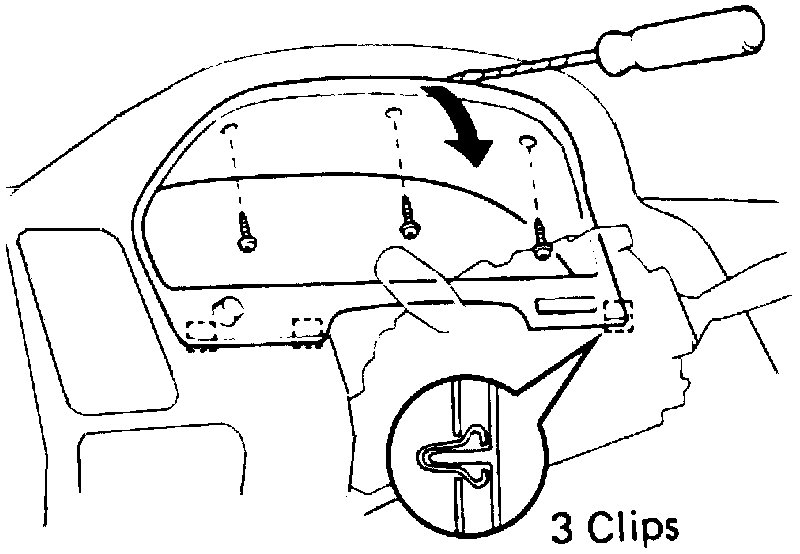

Fig. 21 Instrument Cluster Screw Locations:

Fig. 22 Instrument Cluster Screw Locations:

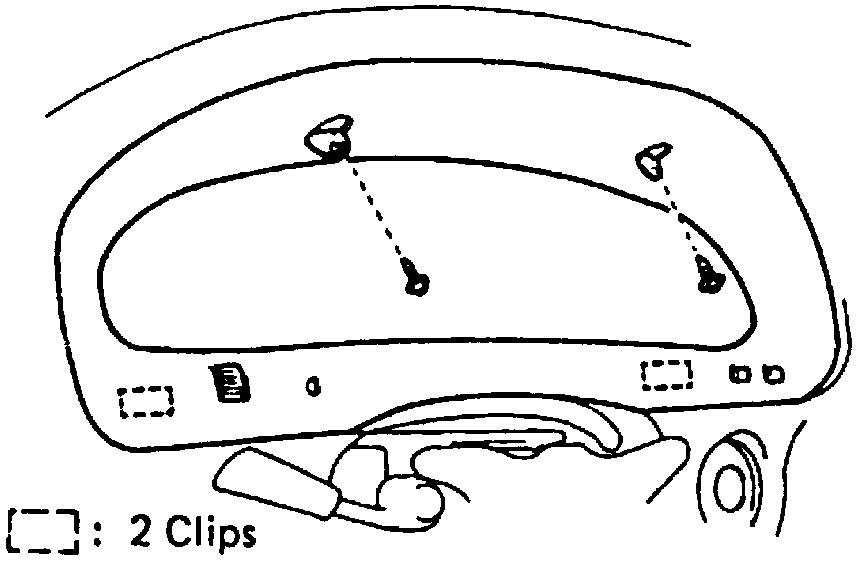

Fig. 23 Instrument Cluster Screw Locations:

Fig. 24 Instrument Cluster Screw Locations:

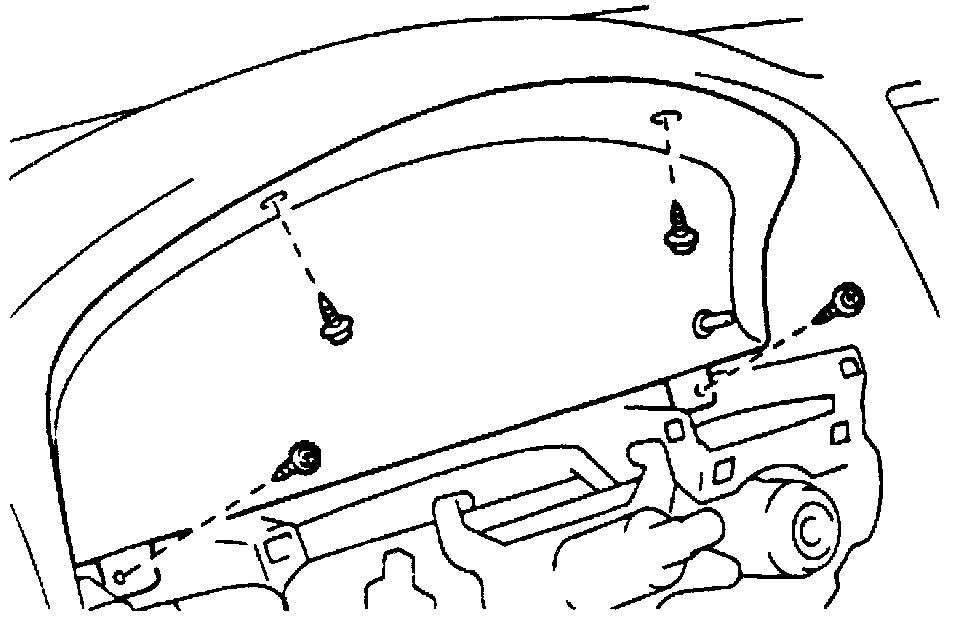

Fig. 25 Instrument Cluster Screw Locations:

3. Remove cluster screws and disconnect electrical connectors.
4. Remove cluster assembly.
5. Reverse procedure to install.
