Combination Meter Disassembly and Assembly

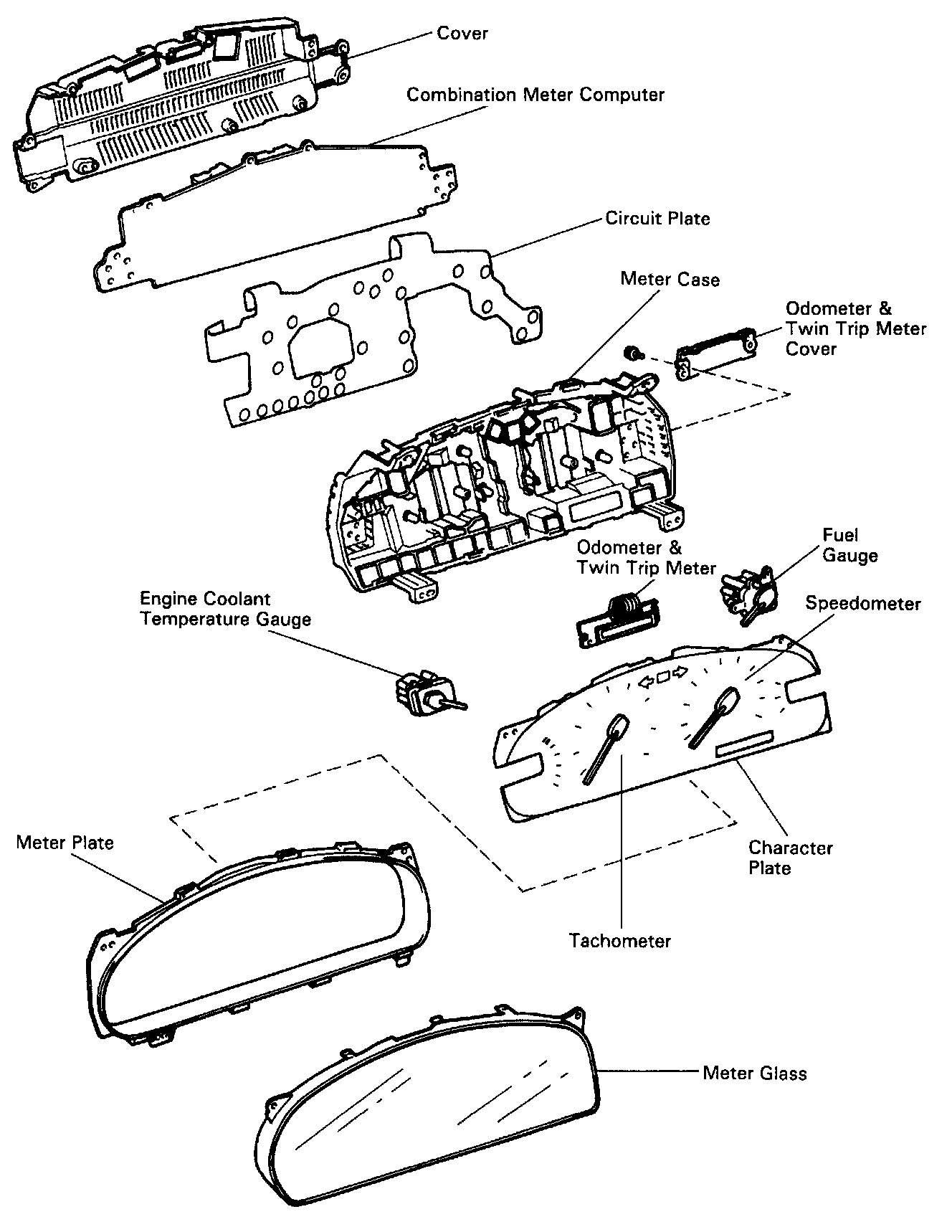

1. REMOVE METER PLATE WITH METER GLASS
(a) Remove the 2 screws.

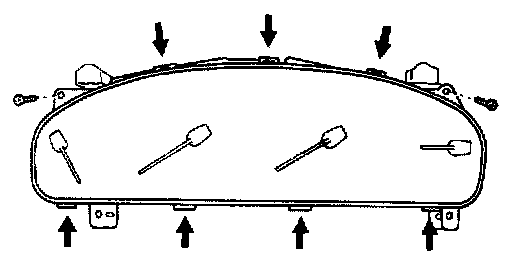

(b) Push down the 7 locking lugs and remove the meter plate with the meter glass from the meter case.






2. REMOVE METER GLASS

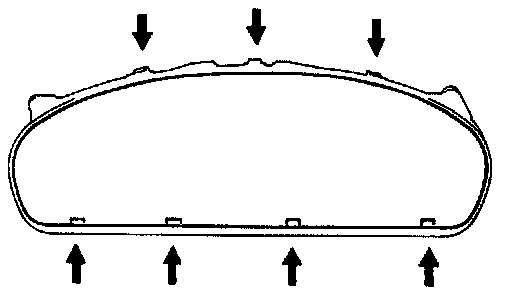

Push down the 7 locking lugs and remove the meter glass from the meter plate.






3. REMOVE COVER
(a) Remove the 7 screws.

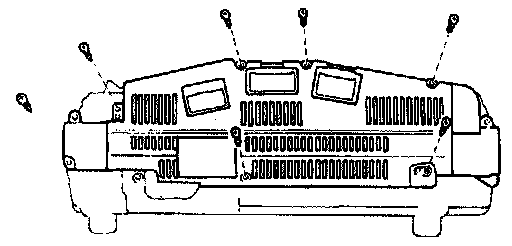

(b) Remove the cover from the meter case.






4. REMOVE COMBINATION METER COMPUTER
(a) Remove the 3 connectors.

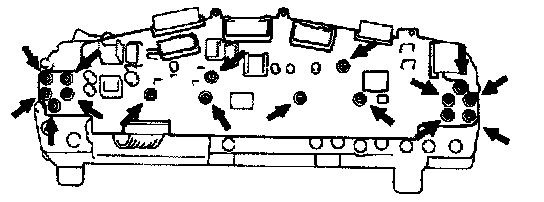

(b) Remove the 16 screws and the combination meter computer.






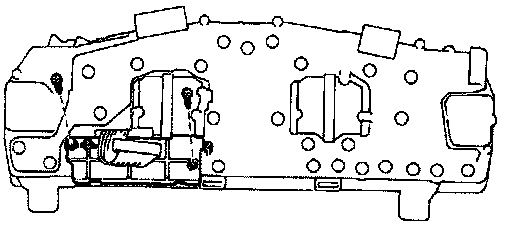

5. REMOVE ODOMETER & TWIN TRIP METER
Remove the 2 screws and the odometer & twin trip meter.
6. REMOVE CIRCUIT PLATE
(a) Remove the bulbs.
(b) Remove the circuit plate from the case.
7. REMOVE CHARACTER PLATE
Remove the character plate from the case.
8. REMOVE FUEL GAUGE
9. REMOVE ENGINE COOLANT TEMPERATURE GAUGE
10. COMBINATION METER ASSEMBLY
For installation, follow the removal procedure in reverse.
